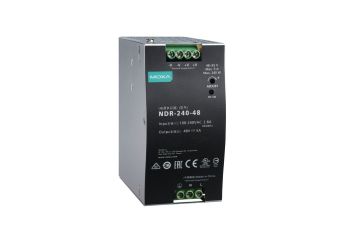

NDR-240-48

Economic class power supply for DIN-rail, 240W 48VDC, NDR-240-48

  •  DIN-rail mounted power supply
  •  Slim form factor that is ideal for cabinet installation
  •  Universal AC power input
  •  High power conversion efficiency
Цена от 282,00 € нетна цена

Висока цена? Влезте в профила си и купете на по-ниска

Изчерпан

Безплатна доставка от €100

Вижте 1 модел

Promocja cenowa na model HDR-15-5

Продукт, предназначен само за професионална употреба
NDR-240-48

NDR-240-48

Модели

Описание

The NDR Series of DIN rail power supplies is designed specifically for use in industrial applications. The 40 to 63 mm slim form-factor enables the power supplies to be easily installed in small and confined spaces such as cabinets. The broad operating temperature range of -20 to 70°C means they are capable of operating in harsh environments. The devices have a metal housing, an AC input range from 90 VAC to 264 VAC, and conform to the EN 61000-3-2 standard. In addition, these power supplies feature constant current mode to provide overload protection.

Техническа спецификация

  • Specyfikacja
Power 240W
Input voltage

90 to 264 VAC (47 to 63 Hz), 127 to 370 VDC

Output 240 W, 48 VDC, 0-5 A
Voltage Adjustment Range

48 to 55 VDC

Over-voltage Protection

 56 to 65 V

Overload Protection 105-160%
Type Constant current limiting, recovers automatically after fault condition is removed
Reset Auto Recovery
Inrush Current 35 A @ 230 VAC, 20 A @ 115 VAC
Safety Standards UL 508, EN 62368-1, IEC 62368-1
EMC Standards EN 55032/24, EN 61000-3-2 Class A, EN 61000-3-3
Dimensions 123.75 x 125.20 x 40 mm
Weight 500 g
Operating Temperature -20 to 70°C (-4 to 158°F)
Relative Humidity 20 to 95% RH
