- 10/100 Mbps Ethernet interface
- Supports baudrates up to 230.4 kbps
- Choice of operation modes: Real COM, TCP Server, TCP Client, and UDP
- Supports DHCP, BootP, Static IP, and ARP
- SNMP and email alerts for event trapping and notifications
- Half the size of a credit card—only 57 × 40 mm
- Low power consumption at 1.5 W, with single +5 V input
Цена от 65,00 € без данък
High price? Log in and buy cheaper
In stock
Place the order by 12:00, the package will be shipped on the same day
Free shipping from €300
Promocja cenowa na model HDR-15-5
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddNE-4110A10/100M Ethernet Network Enabler for RS-422/485 device, RJ-45Out of stock Warranty: 65,00 €79,95 €Login to check your price NE-4110A10/100M Ethernet Network Enabler for RS-422/485 device, RJ-45Availability: Out of stockNet price:65,00 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddNE-4110A-T10/100M Ethernet Network Enabler for RS-422/485 device, RJ-45In stockWarranty: 94,00 €115,62 €Login to check your price NE-4110A-T10/100M Ethernet Network Enabler for RS-422/485 device, RJ-45Availability:In stockNet price:94,00 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddNE-4110-ST (w/o module)Developing Kit for NE-4110 Series, NE-4110S, NE-4110A (without NE Module)Out of stock Warranty: 110,00 €135,30 €Login to check your price NE-4110-ST (w/o module)Developing Kit for NE-4110 Series, NE-4110S, NE-4110A (without NE Module)Availability: Out of stockNet price:110,00 €
Description

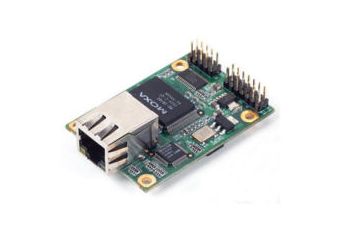

Moxa’s NE-4100 embedded device servers are designed for manufacturers who want to add sophisticated network connectivity to their serial devices. Moxa’s embedded device servers can be used to convert any device with a standard serial interface to an Ethernet-enabled device in no time. The NE-4100 embedded device servers support 10/100 Mbps Ethernet, and provide ready-to-use operation modes, including TCP Server, TCP Client, and UDP. In addition, a Real COM driver is included for backward compatibility with legacy software.
SNMP and Email Alerts for Event Trap and Notification
NE-4100 embedded device servers can be configured to send an SNMP trap or email under the following conditions:
- Cold/warm start
- Password authentication failure
- Change in DSR/DCD line signal
- Change in IP address
- Change in password
Technical Specification
- PLATFORM
| CPU | 16-bit MCU |
- MEMORY
| Flash | 2 MB |
| SDRAM | 1 MB |
- INPUT/OUTPUT INTERFACE
| Configurable DIO Channels (by software) | 4 |
- ETHERNET INTERFACE
| 10/100BaseT(X) Ports, Auto MDI/MDI-X | 8-pin RJ45 |
| Magnetic Isolation Protection | 1.5 kV (built-in) |
| Standards | IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X) IEEE 802.3x for flow control |
- ETHERNET SOFTWARE FEATURES
| Configuration Options | Web Console (HTTP), Windows Utility, Telnet Console, Serial Console |
| Management | ARP, Device Search Utility (DSU), DHCP Client, HTTP, IPv4, SMTP, SNMPv1/v2c, TCP/IP, Telnet, UDP, Web Console, ICMP |
| Windows Real COM Drivers | Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2/2016/2019 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded |
| Linux Real TTY Drivers | Kernel versions: 2.4.x, 2.6.x, 3.x, 4.x, and 5.x |
| Fixed TTY Drivers | SCO UNIX, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X |
| Android API | Android 3.1.x and later |
- SERIAL INTERFACE
| No. of Ports | 2 (1 for serial interface, 1 for TTL console port |
| Serial Standards | RS-422, RS-485 |
| Operation Modes | Real COM mode, TCP Client mode, TCP Server mode, UDP mode |
| Baudrate | 110 bps to 230.4 kbps |
| Data Bits | 5, 6, 7, 8 |
| Stop Bits | 1, 1.5, 2 |
| Parity | None, Even, Odd, Space, Mark |
| Flow Control | None, RTS/CTS, DTR/DSR, XON/XOFF |
- SERIAL SIGNALS
| RS-422 | TX+, TX-, RX+, RX-, GND |
| RS-485-4w | TX+, TX-, RX+, RX-, GND |
| RS-485-2w | Data+, Data-, GND |
- POWER PARAMETERS
| Power Consumption | 290 mA @ 5 VDC |
| Input Voltage | 5 VDC |
- PHYSICAL CHARACTERISTICS
| Dimensions | 57 x 40 mm (2.24 x 1.57 in) |
| Weight | 40 g (0.09 lb) |
| Form Factor Type | Ready-to-go pin header modules |
- ENVIRONMENTAL LIMITS
| Operating Temperature | Standard Models: 0 to 55˚C (32 to 131˚F) Wide Temp. Models: -40 to 75˚C (-40 to 167˚F) |
| Weight | -40 to 60°C (-40 to 140°F) |
| Form Factor Type | 5 to 95% (non-condensing) |
- STANDARD AND CERTIFICATIONS
| EMC | EN 55032/24 |
| EMI | CISPR 32, FCC Part 15B Class B |
| EMS | IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV IEC 61000-4-5 Surge: Power: 1 kV IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m IEC 61000-4-8 PFMF |
| Environmental Testing | IEC 60068-2-1 IEC 60068-2-3 IEC 60068-2-14 |
- DECLARATION
| Green Product | RoHS, CRoHS, WEEE |
- MTBF
| Time | 289,573 hrs |
| Standards | Telcordia SR332 |
