Also check out the smaller and cheaper EDS-2005-ELP, available in our stock! The EDS-2005-ELP is an 5-port unamanaged Ethernet switch. More details here. NOTE: EDS-205 is covered with special discount conditions. Only a 3% discount for proforma/online payments and a 3% discount for purchases through our online store is applied to the list price. |
Label Recommended
Производител: MOXA
- 10/100BaseT(X) (RJ45 connector)
- IEEE802.3/802.3u/802.3x support
- Broadcast storm protection
- DIN-rail mounting ability
- -10 to 60°C operating temperature range
Цена от 71,00 € без данък
High price? Log in and buy cheaper
In stock
Place the order by 12:00, the package will be shipped on the same day
Free shipping from €300
Promocja cenowa na model HDR-15-5
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddEDS-205Entry-level Unmanaged Ethernet Switch with 5 10/100BaseT(X) ports, -10 to 60°CLabel Recommended
In stockWarranty: 71,00 €87,33 €Login to check your price EDS-205Entry-level Unmanaged Ethernet Switch with 5 10/100BaseT(X) ports, -10 to 60°CLabel Recommended
Availability:In stockNet price:71,00 €
Accessories
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddDIN rail power supply 15W 24V 0.63AIn stockWarranty: 11,00 €13,53 €Login to check your price DIN rail power supply 15W 24V 0.63AAvailability:In stockNet price:11,00 €
Description

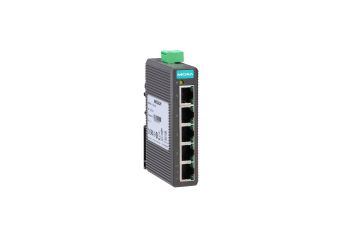

The EDS-205 Series supports IEEE 802.3/802.3u/802.3x with 10/100M, full/half-duplex, MDI/MDIX auto-sensing RJ45 ports. The EDS-205 Series is rated to operate at temperatures ranging from -10 to 60°C, and is rugged enough for any harsh industrial environment. The switches can be easily installed on a DIN rail as well as in distribution boxes. The DIN-rail mounting capability, wide operating temperature, and the IP30 housing with LED indicators make the plug-and-play EDS-205 switches reliable and easy to use.
Technical Specification
- Ethernet Interface
| Standards | IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X) IEEE 802.3x for flow control |
| 10/100BaseT(X) Ports (RJ45 connector) | Full/Half duplex mode Auto MDI/MDI-X connection Auto negotiation speedSwitch Properties |
| Processing Type | Store and Forward |
| MAC Table Size | 1 K |
| Packet Buffer Size | 512 kbits |
- Power Parameters
| Input Voltage | 24 VDC |
| Input Current | 0.11 A @ 24 VDC |
| Operating Voltage | 12 to 48 VDC |
| Connection | 1 removable 3-contact terminal block(s) |
| Overload Current Protection | 1.1 A @ 24 VDC |
| Reverse Polarity Protection | Supported |
- Physical Characteristics
| Housing | Plastic |
| IP Rating | IP30 |
| Dimensions | 24.9 x 100 x 86.5 mm (0.98 x 3.94 x 3.41 in) |
| Weight | 135 g (0.30 lb) |
| Installation | DIN-rail mounting |
- Environmental Limits
| Operating Temperature | -10 to 60°C (14 to 140°F) |
| Storage Temperature (package included) | -40 to 85°C (-40 to 185°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
- Standards and Certifications
| Safety | EN 60950-1, UL 508 |
| EMC | EN 55032/24 |
| EMI | CISPR 32, FCC Part 15B Class A |
| EMS | IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV IEC 61000-4-5 Surge: Power: 1 kV; Signal: 1 kV IEC 61000-4-6 CS: 3 V IEC 61000-4-8 PFMF |
| Shock | IEC 60068-2-27 |
| Vibration | IEC 60068-2-6 |
| Freefall | IEC 60068-2-31 |
- MTBF
| Time | 3,915,945 hrs |
| Standards | Telcordia (Bellcore), GB |
