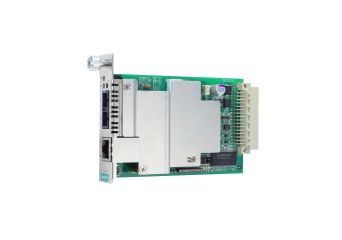

Seria CSM-400
Manageable 10/100BaseT(X) to 100BaseFX slide-in modules for the NRack System™
Производител: MOXA
Производител: MOXA
- LFP (Link Fault Pass-Through) and FEF (Far End Fault)
- Supports store-and-forward mode and pass-through mode
- Auto-negotiation
- Supports IEEE 802.3AH OAM protocol
- Plug and play
- Hot-swappable
- IP-based remote management
- Supports WDM type modules
Цена от 275,00 € без данък
High price? Log in and buy cheaper
In stock
Place the order by 12:00, the package will be shipped on the same day
Free shipping from €300
Promocja cenowa na model HDR-15-5
Seria CSM-400
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddCSM-400-121310/100BaseT(X) to 100BaseFX slide-in managed module converter, multi-mode ST connector, -20 to 55°COut of stock Warranty: 275,00 €338,25 €Login to check your price CSM-400-121310/100BaseT(X) to 100BaseFX slide-in managed module converter, multi-mode ST connector, -20 to 55°CAvailability: Out of stockNet price:275,00 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddCSM-400-121410/100BaseT(X) to 100BaseFX slide-in managed module converter, multi-mode SC connector, -20 to 55°COut of stock Warranty: 275,00 €338,25 €Login to check your price CSM-400-121410/100BaseT(X) to 100BaseFX slide-in managed module converter, multi-mode SC connector, -20 to 55°CAvailability: Out of stockNet price:275,00 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddCSM-400-121810/100BaseT(X) to 100BaseFX slide-in managed module converter, single-mode SC connector, -20 to 55°CIn stockWarranty: 364,00 €447,72 €Login to check your price CSM-400-121810/100BaseT(X) to 100BaseFX slide-in managed module converter, single-mode SC connector, -20 to 55°CAvailability:In stockNet price:364,00 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddCSM-400-122410/100BaseT(X) to 100BaseFX slide-in managed module converter, WDM-A single-mode SC connector, -20 to 55°COut of stock Warranty: 364,00 €447,72 €Login to check your price CSM-400-122410/100BaseT(X) to 100BaseFX slide-in managed module converter, WDM-A single-mode SC connector, -20 to 55°CAvailability: Out of stockNet price:364,00 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddCSM-400-122510/100BaseT(X) to 100BaseFX slide-in managed module converter, WDM-B single-mode SC connector, -20 to 55°COut of stock Warranty: 364,00 €447,72 €Login to check your price CSM-400-122510/100BaseT(X) to 100BaseFX slide-in managed module converter, WDM-B single-mode SC connector, -20 to 55°CAvailability: Out of stockNet price:364,00 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddCSM-400-1213-T10/100BaseT(X) to 100BaseFX slide-in managed module converter, multi-mode ST connector, -40 to 75°COut of stock Warranty: 342,00 €420,66 €Login to check your price CSM-400-1213-T10/100BaseT(X) to 100BaseFX slide-in managed module converter, multi-mode ST connector, -40 to 75°CAvailability: Out of stockNet price:342,00 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddCSM-400-1214-T10/100BaseT(X) to 100BaseFX slide-in managed module converter, multi-mode SC connector, -40 to 75°COut of stock Warranty: 342,00 €420,66 €Login to check your price CSM-400-1214-T10/100BaseT(X) to 100BaseFX slide-in managed module converter, multi-mode SC connector, -40 to 75°CAvailability: Out of stockNet price:342,00 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddCSM-400-1218-T10/100BaseT(X) to 100BaseFX slide-in managed module converter, single-mode SC connector, -40 to 75°COut of stock Warranty: 450,00 €553,50 €Login to check your price CSM-400-1218-T10/100BaseT(X) to 100BaseFX slide-in managed module converter, single-mode SC connector, -40 to 75°CAvailability: Out of stockNet price:450,00 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddCSM-400-1224-T10/100BaseT(X) to 100BaseFX slide-in managed module converter, WDM-A single-mode SC connector, -40 to 75°COut of stock Warranty: 450,00 €553,50 €Login to check your price CSM-400-1224-T10/100BaseT(X) to 100BaseFX slide-in managed module converter, WDM-A single-mode SC connector, -40 to 75°CAvailability: Out of stockNet price:450,00 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddCSM-400-1225-T10/100BaseT(X) to 100BaseFX slide-in managed module converter, WDM-B single-mode SC connector, -40 to 75°COut of stock Warranty: 450,00 €553,50 €Login to check your price CSM-400-1225-T10/100BaseT(X) to 100BaseFX slide-in managed module converter, WDM-B single-mode SC connector, -40 to 75°CAvailability: Out of stockNet price:450,00 €
Description
The CSM-400 Series consists of slide-in Ethernet-to-fiber managed media converters for the NRack System™. The modules provide media conversion from 10/100BaseT(X) to 100BaseFX (with SC/ST connectors), and can be installed in any NRack System™ chassis. The CSM-400 modules support LFP and FEF for easily tracing network link failures, and support store-and-forward and pass-through modes, 802.3AM OAM for remote management and monitoring, as well as WDM-type fiber modules to reduce fiber cable cost.
Technical Specification
- Ethernet Interface
| 10/100BaseT(X) Ports (RJ45 connector) | 1 |
| 100BaseFX Ports (multi-mode ST connector) | CSM-400-1213: 1 |
| 100BaseFX Ports (multi-mode SC connector) | CSM-400-1214: 1 CSM-400-1214-T: 1 |
| 100BaseFX Ports (single-mode SC connector) | CSM-400-1218: 1 CSM-400-1218-T: 1 |
| 100BaseFX Ports, WDM-A Single-Mode SC Connector | CSM-400-1224: 1 CSM-400-1224-T: 1 |
| 100BaseFX Ports, WDM-B Single-Mode SC Connector | CSM-400-1225: 1 CSM-400-1225-T: 1 |
| Optical Fiber |  |
| Magnetic Isolation Protection | 1.5 kV (built-in) |
| Standards | IEEE 802.3u for 100BaseT(X) and 100BaseFX |
- Power Parameters
| Input Current | 220 mA @ 12 VDC |
| Input Voltage | 12 VDC |
| Overload Current Protection | Supported |
| Power Consumption | 220 mA @ 12 VDC |
- Physical Characteristics
| Dimensions | 86.8 x 124.3 x 21 mm (3.42 x 4.89 x 0.83 in) |
| Weight | Packaged: CSM-400-1213/1214/1218 Series: 170 g (0.37 lb) CSM-400-1224/1225 Series: 180 g (0.40 lb) Product only: CSM-400-1213/1214/1218 Series: 115 g (0.25 lb) CSM-400-1224/1225 Series: 125 g (0.28 lb) |
- Environmental Limits
| Operating Temperature | Standard Models: -20 to 55°C (-4 to 131°F) Wide Temp. Models: -40 to 75°C (-40 to 167°F) |
| Storage Temperature (package included) | -40 to 85°C (-40 to 185°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
- Standards and Certifications
| EMC | EN 55032/24 |
| EMI | CISPR 32, FCC Part 15B Class A |
| EMS | IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV IEC 61000-4-5 Surge: Power: 2 kV(AC), 1 kV(DC); Signal: 1 kV IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m IEC 61000-4-8 PFMF IEC 61000-4-11 |
| Environmental Testing | IEC 60068-2-1 IEC 60068-2-14 IEC 60068-2-2 IEC 60068-2-3 |
| Safety | EN 60950-1, UL 60950-1 |
| Vibration | IEC 60068-2-6 |
- MTBF
| Time | 1,454,560 hrs |
| Standards | Telcordia (Bellcore), GB |
