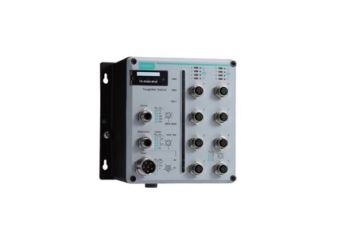

TN-5508A-8PoE

EN 50155 8-port Ethernet switches with up to 8 PoE ports

Производител: MOXA

8 IEEE 802.3at/af compliant PoE and Ethernet combo ports
Isolated power with 24 to 110 VDC power supply range
Complies with all EN 50155 mandatory test items
-40 to 75°C operating temperature range
Turbo Ring and Turbo Chain (recovery time < 20 ms @ 250 switches), and STP/RSTP/MSTP for network redundancy

Product out of stock

Free shipping from €300

Вижте 2 модела

Promocja cenowa na model HDR-15-5

Models
Description
Technical Specification
Download
Recommended Products

TN-5508A-8PoE

Models

Model	Availability	Warranty	Wishlist	Your Price	Your Price	Items Quantity Add
TN-5508A-8PoE-WV-T 8 * FE with 802.3at PoE+ M12 ports, power input 24 - 110 VDC, -40 to 75℃ operation temperature	Out of stock	Warranty:

TN-5508A-8PoE-WV-T

8 * FE with 802.3at PoE+ M12 ports, power input 24 - 110 VDC, -40 to 75℃ operation temperature

Availability: Out of stock

Model	Availability	Warranty	Wishlist	Your Price	Your Price	Items Quantity Add
TN-5508A-8PoE-WV-CT-T 8 * FE with 802.3at PoE+ M12 ports, power input 24 - 110 VDC, conformal coating, -40 to 75? operation temperature	Out of stock	Warranty:

TN-5508A-8PoE-WV-CT-T

8 * FE with 802.3at PoE+ M12 ports, power input 24 - 110 VDC, conformal coating, -40 to 75? operation temperature

Availability: Out of stock

Description

The ToughNet TN-5500A Series M12 managed Ethernet switches are designed for railway applications, such as rolling stock, and wayside installations. The TN-5500A Series switches use M12 and other circular connectors to ensure tight, robust connections, and guarantee reliable operation against environmental disturbances, such as vibration and shock. The TN-5500A Series Ethernet switches provide 8 Fast Ethernet M12 ports with 8 IEEE 802.3at/af compliant PoE (Power-over-Ethernet) ports. The PoE switches are classified as power source equipment (PSE) and provide up to 30 watts of power per port, and can be used to power IEEE 802.3at/af compliant powered devices (PDs), such as IP surveillance, wireless access points, and IP phones.

The TN-5500A Series provides a wide power input range of 24/36/48/72/96/110 VDC that allows you to use the same type of power source at different sites around the globe. In addition, the 24 to 110 VDC wide power input range and isolated power increases the reliability of your communications system. In addition, the -40 to 75°C operating temperature and IP54 rated waterproof enclosure allow deployment in harsh environments. TN-5500A Series Ethernet switches are compliant with mandatory sections of EN 50155, covering operating temperature, power input voltage, surge, ESD, and vibration, as well as conformal coating and power insulation, making the switches suitable for a variety of industrial applications.

Additional Features and Benefits

Provides up to 30 watts per PoE port with a total power budget of 120 watts per switch
IPv6 Ready logo awarded (IPv6 Logo Committee certified)
Leading EN 50155 PoE switches for rolling stock applications
DHCP Option 82 for IP address assignment with different policies
Turbo Ring and Turbo Chain (recovery time < 20 ms @ 250 switches), and STP/RSTP/MSTP for network redundancy
IGMP snooping and GMRP for filtering multicast traffic
EtherNet/IP and Modbus TCP industrial Ethernet protocols supported
Port-based VLAN, IEEE 802.1Q VLAN, and GVRP to ease network planning
QoS (IEEE 802.1p/1Q and ToS/DiffServ) allows real-time traffic classification and prioritization
IEEE 802.3ad, LACP for optimum bandwidth utilization
SNMPv1/v2c/v3 for different levels of network management
TACACS+, SNMPv3, IEEE 802.1X, HTTPS, and SSH to enhance network security
RMON for proactive and efficient network monitoring
Bandwidth management to prevent unpredictable network status
Lock port allows access by only authorized MAC addresses
Port mirroring for online debugging
Automatic warning by exception through email and relay output
Line-swap fast recovery
LLDP for automatic topology discovery in network management software
Configurable by web browser, Telnet/serial console, CLI, and Windows utility
Loop protection to prevent network loops
Panel mounting or DIN-rail mounting installation capability

Technical Specification

Input/Output Interface

Alarm Contact Channels

2 x relay output in one M12 A-coded 5-pin male connector with current carrying capacity of 1 A @ 30 VDC

Ethernet Interface

PoE Ports (10/100BaseT(X), M12 D-coded 4-pin female connector)

Standards

IEEE 802.1D-2004 for Spanning Tree Protocol
IEEE 802.1p for Class of Service
IEEE 802.1Q for VLAN Tagging
IEEE 802.1s for Multiple Spanning Tree Protocol
IEEE 802.1w for Rapid Spanning Tree Protocol
IEEE 802.1X for authentication
IEEE 802.3 for 10BaseT
IEEE 802.3ab for 1000BaseT(X)
IEEE 802.3ad for Port Trunk with LACP
IEEE 802.3u for 100BaseT(X) and 100BaseFX
IEEE 802.3x for flow control
IEEE 802.3af/at for PoE/PoE+ output

Ethernet Software Features

Broadcast Forwarding	IP directed broadcast, broadcast forwarding
Configuration Options	Command Line Interface (CLI), Command Line Interface (CLI) through Serial/Telnet/SSH, Web Console (HTTP/HTTPS), Windows Utility
Filter	802.1Q, GMRP, GVRP, IGMP v1/v2/v3, Port-based VLAN, Static Multicast
Industrial Protocols	EtherNet/IP Adapter, Modbus TCP Server (Slave)
Management	Back Pressure Flow Control, DHCP Option 66/67/82, DHCP Server/Client, Flow control, HTTP, IPv4/IPv6, IOxpress, LLDP, Port Mirror, QoS/CoS/ToS, RARP, RMON, SMTP, SNMP Inform, SNMP Trap, Syslog, Telnet, Account Management
MIB	Bridge MIB, Ethernet-like MIB, MIB-II, P-BRIDGE MIB, Q-BRIDGE MIB, RMON MIB Groups 1, 2, 3, 9, RSTP MIB
Redundancy Protocols	Link Aggregation, MSTP, RSTP, STP, Turbo Chain, Turbo Ring v1/v2, Turbo Ring with DRC
Security	Broadcast storm protection, HTTPS/SSL, Local Account Accessibility, TACACS+, Port Lock, RADIUS, Rate Limit, SSH
Time Management	IEEE 1588 PTP v1/v2, NTP Server/Client, SNTP

Switch Properties

IGMP Groups	256
Max. No. of VLANs	64
VLAN ID Range	VID 1 to 4094

LED Interface

LED Indicators

STATE, PWR1, PWR2, FAULT, 10/100/1000M

Serial Interface

Console Port

M12 A-coded male connector

Power Parameters

Input Current	24-110 VDC, 6.8A max.
Input Voltage	Redundant dual inputs, 24/36/48/72/96/110 VDC
No. of Power Inputs	2
Operating Voltage	16.8 to 137.5 VDC
Overload Current Protection	Supported
Power Connector	M23 connector
Reverse Polarity Protection	Supported
Total PoE Power Budget	120 W

Physical Characteristics

Housing	Metal
IP Rating	IP54
Dimensions	185 x 176.2 x 117.2 mm (7.28 x 6.9 x 4.61 in)
Weight	2,383 g (5.25 lb)
Installation	DIN-rail mounting (optional), Wall mounting
Protection	TN-5500A Series -CT models: PCB conformal coating

Environmental Limits

Operating Temperature	-40 to 75°C (-40 to 167°F)
Storage Temperature (package included)	-40 to 85°C (-40 to 185°F)
Ambient Relative Humidity	5 to 95% (non-condensing)
Altitude	2000 m

Standards and Certifications

EMS	IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8 PFMF
Freefall	IEC 60068-2-31
Radio Frequency	FCC
Railway	EN 50121-4, EN 50155
Railway Fire Protection	EN 45545-2
Safety	EN 62368-1
Shock	IEC 60068-2-27, IEC 61373, EN 50155
Vibration	IEC 60068-2-64, IEC 61373, EN 50155
EMC	EN 55032/35

Declaration

Green Product

RoHS, CRoHS, WEEE

MTBF

Time	450,556 hrs
Standards	Telcordia SR332

Download

Notki techniczne

Notki techniczne
Konfiguracja sieci VLAN (816.51 kB)
Konfiguracja Dual Homing (70.40 kB)
Konfiguracja Dual Ring (59.56 kB)
Konfiguracja Ring Coupling (64.31 kB)
Konfiguracja Turbo Chain (59.07 kB)
Konfiguracja Turbo Ring V2 (54.91 kB)
