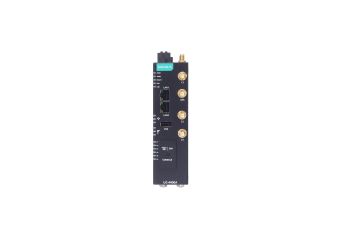

UC-4400A

Arm Cortex-A53 quad-core 64-bit computers with LTE/5G and Wi-Fi 6E capabilities

Features and Benefits

Arm Cortex-A53 quad-core 1.6 GHz processor
Integrated 5G Sub-6GHz NR module with dual SIM and AT&T approval
2 auto-sensing 10/100/1000 Mbps Ethernet ports
CANbus and serial port with 2-kV isolation protection
Moxa Industrial Linux with 10-year superior long-term support
Wi-Fi 6E and 4G LTE Cat.4 support with optional accessory
Dual SIM slots
CE/FCC/UL certifications
Ready for ISA/IEC 62443-4-2 SL2 certification
-40 to 75°C operating temperature range (-40 to 70°C with cellular module enabled)

Изчерпан

Безплатна доставка от €100

Promocja cenowa na model HDR-15-5

Продукт, предназначен само за професионална употреба

Описание
Техническа спецификация
Download
Препоръчани продукти

UC-4400A

Описание

Introduction

The UC-4400A computing platform is designed for embedded data-acquisition applications. The computer comes with up to four RS-232/422/485 serial ports, dual 10/100/1000 Mbps Ethernet ports, and up to 2 CAN ports as well as a Mini PCIe and M.2 E socket to support LTE Cat. 4 and Wi-Fi 6E modules. These versatile capabilities let users efficiently adapt the UC-4400A to a variety of complex communications solutions.

The UC-4400A is built around a Arm Cortex-A53 quad-core processor that has been optimized for use in energy monitoring systems, but is widely applicable to a variety of industrial solutions. With flexible interfacing options, this tiny, embedded computer is a reliable and secure gateway for data acquisition and data processing at field sites as well as a useful communications platform for many other large-scale deployments.

Wide temperature cellular-enabled models are available for extended-temperature applications. All units are thoroughly tested in a testing chamber, guaranteeing that the cellular-enabled computing platforms are suitable for wide-temperature applications.

Applications

Solar/wind energy
Battery Energy Storage
EV Charging Infrastructure
Facility monitoring
Machine monitoring

Oil & Gas
Water & Wastewater
Intelligent transportation system
Various IIoT gateway applications

Appearance

UC-4410A Models

UC-4414A Models

UC-4430A Models

UC-4434A Models

UC-4450A Models

UC-4454A Models

Техническа спецификация

Computer

CPU	Arm Cortex-A53 quad-core 1.6 GHz
DRAM	4 GB LPDDR4
Supported OS	Moxa Industrial Linux 3 (Debian 11, kernel 5.10), 2031 EOL See www.moxa.com/MIL
Storage Pre-installed	16 GB eMMC
Expansion Slots	microSD socket x 1

Computer Interface

Ethernet Ports	Auto-sensing 10/100/1000 Mbps ports (RJ45) x 2
Serial Ports	UC-4414/UC-4434/UC-4454: RS-232/422/485 x 4 (DB9) UC-4410/UC-4430/UC-4450: RS-232/422/485 x 2 (DB9)
CAN Ports	UC-4414/UC-4434/UC-4454: CAN 2.0 A/B x 2 (DB9) UC-4410/UC-4430/UC-4450: CAN 2.0 A/B x 1 (DB9)
Digital Input	DIs x 4
Digital Output	DOs x 4
USB 2.0	USB 2.0 host x 1, Type-A
Wi-Fi Antenna Connector	UC-4430/4434/4450/4454: RP-SMA x 2
Cellular Antenna Connector	UC-4450/4454: SMA x 4 UC-4430/4434: SMA x 2
GPS Antenna Connector	UC-4430/4434/4450/4454: SMA x 1
Console Port	RS-232 (TxD, RxD, GND), 3-pin header (115200, n, 8, 1)
Expansion Slots	UC-4430/4434/4450/4454: M.2 E-key x 1 (for Wi-Fi) UC-4430/4434: mPCIe x 1 (for LTE)
SIM Format	UC-4430/4434/4450/4454: Nano
Number of SIMs	UC-4430/4434/4450/4454: 2
Buttons	Programmable button
TPM	TPM v2.0

Ethernet Interface

Magnetic Isolation Protection 1.5 kV (built-in)

Serial Interface

No. of Ports	UC-4414/4434/4454: 4 UC-4410/4430/4450: 2
Baudrate	50 bps to 921.60 kbps
Data Bits	5, 6, 7, 8
Stop Bits	1, 1.5, 2
Parity	None, Even, Odd, Space, Mark
Flow Control	RTS/CTS, XON/XOFF ADDC (RS-485) RTS Toggle (RS-232)
Isolation	UC-4414/4434: 2 kV (P4/P5 ports)
Console Port	3-pin header to DB9

Serial Signals

RS-232 TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

RS-422 Tx+, Tx-, Rx+, Rx-, GND

RS-485-2w Data+, Data-, GND

RS-485-4w Tx+, Tx-, Rx+, Rx-, GND

CAN Interface

No. of Ports	UC-4414/4434/4454: 2 UC-4410/4430/4450: 1
Baudrate	10 to 1000 kbps
Connector	DB9 male
Industrial Protocols	CAN 2.0A CAN 2.0B
Isolation	2 kV (built-in)
Signals	CAN_H, CAN_L, CAN_GND, CAN_SHLD, CAN_V+, GND

Digital Inputs

Digital Input Channels	DIs x 4
Connector	Screw-fastened Euroblock
Sensor Type	Wet contact (NPN) Dry contact
Dry Contact	Logic 1: Open Logic 0: Close to GND
Wet Contact (COM → DI)	Logic 1: 0–3 VDC Logic 0: 10–30 VDC
Isolation	3 kVDC

Digital Outputs

Digital Output Channels DOs x 4

Connector Screw-fastened Euroblock

Current Rating 200 mA per channel

I/O Type Sink

Voltage 0 to 30 VDC

Cellular Interface

5G NR Bands	5G NSA/SA: n1, n2, n3, n5, n7, n8, n20, n25, n28, n29, n40, n41, n48, n66, n71, n75, n77, n78, n79
LTE Bands	B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B34, B38, B39, B40, B41, B42, B43, B46, B48, B66, B71
UMT Bands	B1, B2, B3, B4, B5, B6, B8, B19

GPS Interface

Frequency Range	Wide-band GNSS 1559–1606 MHz GPS 2.046 MHz @ 1575.42 MHz GLONASS 1597.05–1606 MHz BeiDou 1559.05–1563.14 MHz Galileo 1575.42 MHz
Antenna Types Supported	Active antenna (default) Passive antenna
Time to First Fix (TTFF)	Hot start: 1 s Warm start: 27 s Cold start: 28 s
Sensitivity	Cold start: -146 dBm Tracking: -161 dBm Acquisition: -148 dBm
Update Rate	≥ 1 Hz

WLAN Interface

WLAN Standards 802.11a/b/g/n/ac/ax (optional Wi-Fi module)

Frequency Band 2.4 GHz / 6 GHz
2.4 GHz / 5 GHz

Security Functions

Hardware-based Security	TPM 2.0 Hardware Root of Trust Secure Boot
Intrusion Detection	Host-based intrusion detection
Security Tools	Security Diagnostic Tool Security Event Auditing Secure Update
Disk Protection	LUKS Disk Encryption
Recovery	One-step recovery to last secure state Dual-system failback
Reliability	Network Keep Alive Network Failover/Failback

LED Indicators

System	Power x 2 READY x 1 SIM card x 1
LAN	2 LEDs (10/100/1000 Mbps)
Serial	UC-4414/4434/4454: 1 LED per port (4) UC-4410/4430/4450: 1 LED per port (2)
CAN	UC-4414/4434/4454: 1 LED per port (2) UC-4410/4430/4450: 1 LED per port (1)
Wireless Signal Strength	Cellular x 3 Wi-Fi x 3
User Programmable	1

Power Parameters

No. of Power Inputs	Redundant dual inputs
Input Voltage	9 – 48 VDC
Input Current	UC-4410/4414: 1.53 A @ 9 V / 0.21 A @ 48 V UC-4430/4434: 2.10 A @ 9 V / 0.27 A @ 48 V (LTE) UC-4450/4454: 2.13 A @ 9 V / 0.30 A @ 48 V
Power Consumption	UC-4410/4414: 10 W @ 95% CPU UC-4430/4434: 13 W (LTE) UC-4450/4454: 14.4 W
Power Connector	Screw-fastened Euroblock
Reverse Polarity Protection	Supported

Reliability

Automatic Reboot Trigger External RTC

Alert Tools External WDT

Physical Characteristics

Housing	Metal SECC
IP Rating	IP30
Dimensions	141.5 × 120 × 41 mm (5.57 × 4.72 × 1.62 in)
Weight	750 g (1.7 lb)
Installation	DIN-rail mounting Wall mount (optional)

Environmental Limits

Operating Temperature	Wi-Fi: -30 – 70 °C Cellular: -40 – 70 °C Non-wireless: -40 – 75 °C
Storage Temperature	-40 – 85 °C
Ambient Humidity	5 – 95% RH (non-condensing)

Standards and Certifications

EMC	EN 55032/35 EN 61000-6-2/-6-4 UKCA RCM UC-441/443: KC UC-441: BSMI
EMI	FCC Part 15B Class A ICES-003 Class A EN 55032 Class A EN 61000-6-4 Class A
EMS	IEC 61000-4-2, -4-3, -4-4, -4-5, -4-6, -4-8
Radio Frequency	UC-445: FCC, CE (RED), ISED, RCM, NCC
Carrier Approvals	UC-445: AT&T, Verizon, PTCRB (Q1 2025)
International Approval	FCC, CE, ISED, UKCA, RCM, KC, BSMI, NCC (Q1 2025)
Safety	IEC/EN/UL 62368-1 UC-441: BSMI
Shock	IEC 60068-2-27
Vibration	IEC 60068-2-64, 2 grms @ 5–500 Hz
Green Product	RoHS, CRoHS, WEEE

MTBF

Time	UC-4410A-T: 1,311,070 h UC-4414A-I-T: 1,097,567 h UC-4430A-T: 1,161,321 h UC-4434A-I-T: 813,255 h UC-4450A-T-5G: 982,234 h UC-4454A-T-5G: 892,697 h
Standards	Telcordia TR/SR
