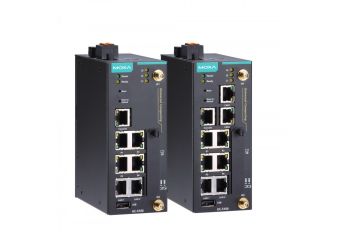

UC-5100
Arm Cortex-A8 1 GHz IIoT gateway with 1 mini PCIe expansion slot for wireless module, 4 serial ports, 2 CAN ports, 4 DIs, 4 DOs
Производител: MOXA
Производител: MOXA
- Armv7 Cortex-A8 1000 MHz processor
- Dual auto-sensing 10/100 Mbps Ethernet ports
- 4 software-selectable RS-232/422/485 ports supporting all signals
- Dual CAN ports with industrial CAN 2.0 A/B protocol supported
- Moxa Industrial Linux with 10-year long-term support
- Mini PCIe socket for Wi-Fi/cellular module
- SD slot for storage expansion
- -40 to 85°C wide temperature range and -40 to 70°C with LTE enabled
- IEC 61000-6-2/6-4 standards for harsh industrial environments
Цена от 704,00 € без данък
High price? Log in and buy cheaper
In stock
Place the order by 12:00, the package will be shipped on the same day
Free shipping from €300
Promocja cenowa na model HDR-15-5
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddUC-5101-LXArm-based Industrial computing platform with Cortex-A8 1 GHz CPU, 4 serial ports, 2 Ethernet ports, SD socket, 4 DI, 4 DO, and USB, -10 to 60°C operating temperature rangeOut of stock Warranty: 704,00 €865,92 €Login to check your price UC-5101-LXArm-based Industrial computing platform with Cortex-A8 1 GHz CPU, 4 serial ports, 2 Ethernet ports, SD socket, 4 DI, 4 DO, and USB, -10 to 60°C operating temperature rangeAvailability: Out of stockNet price:704,00 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddUC-5102-LXArm-based Industrial computing platform with Cortex-A8 1 GHz CPU, 4 serial ports, 2 Ethernet ports, SD socket, mini PCIe socket, 4 DI, 4 DO, and USB, -10 to 60°C operating temperature rangeOut of stock Warranty: 836,00 €1 028,28 €Login to check your price UC-5102-LXArm-based Industrial computing platform with Cortex-A8 1 GHz CPU, 4 serial ports, 2 Ethernet ports, SD socket, mini PCIe socket, 4 DI, 4 DO, and USB, -10 to 60°C operating temperature rangeAvailability: Out of stockNet price:836,00 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddUC-5111-LXArm-based Industrial computing platform with Cortex-A8 1 GHz CPU, 4 serial ports, 2 Ethernet ports, SD socket, 2 CAN ports, 4 DI, 4 DO, and USB, -10 to 60°C operating temperature rangeOut of stock Warranty: 878,00 €1 079,94 €Login to check your price UC-5111-LXArm-based Industrial computing platform with Cortex-A8 1 GHz CPU, 4 serial ports, 2 Ethernet ports, SD socket, 2 CAN ports, 4 DI, 4 DO, and USB, -10 to 60°C operating temperature rangeAvailability: Out of stockNet price:878,00 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddUC-5112-LXArm-based Industrial computing platform with Cortex-A8 1 GHz CPU, 4 serial ports, 2 Ethernet ports, SD socket, mini PCIe socket, 2 CAN ports, 4 DI, 4 DO, and USB, -10 to 60°C operating temperature rangeOut of stock Warranty: 1 001,00 €1 231,23 €Login to check your price UC-5112-LXArm-based Industrial computing platform with Cortex-A8 1 GHz CPU, 4 serial ports, 2 Ethernet ports, SD socket, mini PCIe socket, 2 CAN ports, 4 DI, 4 DO, and USB, -10 to 60°C operating temperature rangeAvailability: Out of stockNet price:1 001,00 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddUC-5101-T-LXArm-based Industrial computing platform with Cortex-A8 1 GHz CPU, 4 serial ports, 2 Ethernet ports, SD socket, 4 DI, 4 DO, and USB, -40 to 85°C operating temperature rangeOut of stock Warranty: 878,00 €1 079,94 €Login to check your price UC-5101-T-LXArm-based Industrial computing platform with Cortex-A8 1 GHz CPU, 4 serial ports, 2 Ethernet ports, SD socket, 4 DI, 4 DO, and USB, -40 to 85°C operating temperature rangeAvailability: Out of stockNet price:878,00 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddUC-5102-T-LXArm-based Industrial computing platform with Cortex-A8 1 GHz CPU, 4 serial ports, 2 Ethernet ports, SD socket, mini PCIe socket, 4 DI, 4 DO, and USB, -40 to 85°C operating temperature rangeOut of stock Warranty: 1 001,00 €1 231,23 €Login to check your price UC-5102-T-LXArm-based Industrial computing platform with Cortex-A8 1 GHz CPU, 4 serial ports, 2 Ethernet ports, SD socket, mini PCIe socket, 4 DI, 4 DO, and USB, -40 to 85°C operating temperature rangeAvailability: Out of stockNet price:1 001,00 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddUC-5111-T-LXArm-based Industrial computing platform with Cortex-A8 1 GHz CPU, 4 serial ports, 2 Ethernet ports, SD socket, 2 CAN ports, 4 DI, 4 DO, and USB, -40 to 85°C operating temperature rangeOut of stock Warranty: 1 056,00 €1 298,88 €Login to check your price UC-5111-T-LXArm-based Industrial computing platform with Cortex-A8 1 GHz CPU, 4 serial ports, 2 Ethernet ports, SD socket, 2 CAN ports, 4 DI, 4 DO, and USB, -40 to 85°C operating temperature rangeAvailability: Out of stockNet price:1 056,00 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddUC-5112-T-LXArm-based Industrial computing platform with Cortex-A8 1 GHz CPU, 4 serial ports, 2 Ethernet ports, SD socket, 2 CAN ports, mini PCIe socket, 4 DI, 4 DO, and USB, -40 to 85°C operating temperature rangeIn stockWarranty: 1 180,00 €1 451,40 €Login to check your price UC-5112-T-LXArm-based Industrial computing platform with Cortex-A8 1 GHz CPU, 4 serial ports, 2 Ethernet ports, SD socket, 2 CAN ports, mini PCIe socket, 4 DI, 4 DO, and USB, -40 to 85°C operating temperature rangeAvailability:In stockNet price:1 180,00 €
Accessories
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddLTE Stick antenna that covers 704-960/1710-2620 MHz providingIn stockWarranty: 24,00 €29,52 €Login to check your price LTE Stick antenna that covers 704-960/1710-2620 MHz providingAvailability:In stockNet price:24,00 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddMulti-band antenna that covers 700-2700 MHz. Specially designedOut of stock Warranty: 69,00 €84,87 €Login to check your price Multi-band antenna that covers 700-2700 MHz. Specially designedAvailability: Out of stockNet price:69,00 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddMulti-band antenna that covers 700-2700/2400-2500/5150-5850 MHz frequencies. Screw-fastened mounting and full IP67 waterproofing are available.Out of stock Warranty: 158,00 €194,34 €Login to check your price Multi-band antenna that covers 700-2700/2400-2500/5150-5850 MHz frequencies. Screw-fastened mounting and full IP67 waterproofing are available.Availability: Out of stockNet price:158,00 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddANT-WDB-ARM-0202 plus ADP1.8/1.8 dBi, RP-SMA (male) antenna with 1 SMA adapterOut of stock Warranty: 10,00 €12,30 €Login to check your price ANT-WDB-ARM-0202 plus ADP1.8/1.8 dBi, RP-SMA (male) antenna with 1 SMA adapterAvailability: Out of stockNet price:10,00 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddCable (CBL-PJTB-10)In stockWarranty: 4,00 €4,92 €Login to check your price Cable (CBL-PJTB-10)Availability:In stockNet price:4,00 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddDK-UC-5000Din-Rail mounting kit with screwsOut of stock Warranty: 17,00 €20,91 €Login to check your price DK-UC-5000Din-Rail mounting kit with screwsAvailability: Out of stockNet price:17,00 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity Add12V 1.5A, 5.5/2.1/7.5, w/Nut WT, -40 to 75°C, EU PlugIn stockWarranty: 37,00 €45,51 €Login to check your price 12V 1.5A, 5.5/2.1/7.5, w/Nut WT, -40 to 75°C, EU PlugAvailability:In stockNet price:37,00 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddLTE regions: Asia, Europe, Penta-Band LTE: Bands 1, 3, 8, 20, 28 (700, 800, 900, 1800, 2100 MHz), Dual-Band GSM 900 and 1800 MHzIn stockWarranty: 205,00 €252,15 €Login to check your price LTE regions: Asia, Europe, Penta-Band LTE: Bands 1, 3, 8, 20, 28 (700, 800, 900, 1800, 2100 MHz), Dual-Band GSM 900 and 1800 MHzAvailability:In stockNet price:205,00 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddUC-WiFi-USB802.11 ac/a/b/g/n WiFi mini PCIe module accessory package with screwsOut of stock Warranty: 74,00 €91,02 €Login to check your price UC-WiFi-USB802.11 ac/a/b/g/n WiFi mini PCIe module accessory package with screwsAvailability: Out of stockNet price:74,00 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddWM-UC-5000Wall mounting kit with screwsOut of stock Warranty: 17,00 €20,91 €Login to check your price WM-UC-5000Wall mounting kit with screwsAvailability: Out of stockNet price:17,00 €
Description
The UC-5100 Series embedded computers are designed for industrial automation applications. The computers feature 4 RS-232/422/485 full signal serial ports with adjustable pull-up/pull-down resistors, 2 CAN ports, 2 Ethernet ports, 4 digital input channels, 4 digital output channels, USB interface, and an SD slot in a compact, front-end access housing. To fulfill various industrial applications, the UC-5100 Series computing platform provides models with 2 CAN ports and a mini PCIe slot for wireless connections featuring a dual-SIM design for network redundancy. The UC-5100’s vertical DIN-rail form factor makes it easy to install the computer in a small cabinet. This space-saving solution also facilitates easy wiring, making the UC-5100 a great choice as front-end embedded controllers for industrial applications. Furthermore, all models are equipped with Moxa Industrial Linux that comes with 10-year long-term support as well as optimized software features.
Technical Specification
- Computer
| CPU | Armv7 Cortex-A8 1 GHz |
| Pre-installed OS | Linux Debian 9 kernel 4.4 (Moxa Industrial Linux) |
| DRAM | 512 MB DDR3 |
| Storage Pre-installed | 8 GB eMMC |
| Storage Slot | SD slots x 1 |
| Expansion Slots | UC-5102-LX: mPCIe slots x 1 UC-5112-LX: mPCIe slots x 1 UC-5102-T-LX: mPCIe slots x 1 UC-5112-T-LX: mPCIe slots x 1 |
- Computer Interface
| USB 2.0 | USB 2.0 hosts x 1, type-A connectors |
| Number of SIMs | 2 |
| SIM Format | Micro |
| Serial Ports | RS-232/422/485 ports x 4, software selectable (RJ45) |
| Digital Input | DIs x 4 |
| Digital Output | DOs x 4 |
| Buttons | Reset button, DIP switch for serial and CAN port configuration |
| Console Port | RS-232 (TxD, RxD, GND), RJ45 output (115200, n, 8, 1) |
- Ethernet Interface
| Ethernet Ports | Auto-sensing 10/100 Mbps ports (RJ45 connector) x 2 |
| Magnetic Isolation Protection | 1.5 kV (built-in) |
- Serial Interface
| Serial Ports | 4 x RS-232/422/485 |
| Data Bits | 5, 6, 7, 8 |
| Parity | None, Even, Odd, Space, Mark |
| Stop Bits | 1, 1.5, 2 |
- Serial Signals
| RS-232 | TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND |
| RS-422 | Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-2w | Data+, Data-, GND |
| RS-485-4w | Tx+, Tx-, Rx+, Rx-, GND |
- CAN Interface
| No. of Ports | UC-5111-LX: 2 UC-5111-T-LX: 2 UC-5112-LX: 2 UC-5112-T-LX: 2 |
| Signals | UC-5111-LX: CAN_L, CAN_H, CAN Signal GND UC-5111-T-LX: CAN_L, CAN_H, CAN Signal GND UC-5112-LX: CAN_L, CAN_H, CAN Signal GND UC-5112-T-LX: CAN_L, CAN_H, CAN Signal GND |
| Terminator | UC-5111-LX: N/A, 120 ohms (by DIP) UC-5111-T-LX: N/A, 120 ohms (by DIP) UC-5112-LX: N/A, 120 ohms (by DIP) UC-5112-T-LX: N/A, 120 ohms (by DIP) |
- Digital Inputs
| Voltage | 0 to 0.8 VDC 2.0 to 5.5 VDC |
- Digital Outputs
| Current Rating | 24 mA per channel |
| Voltage | 0 to 0.55 VDC 2.5 to 3.3 VDC |
- LED Indicators
| System | Power x 1 System Ready x 1 |
| LAN | 2 per port (10/100 Mbps) |
| Serial | 2 per port (Tx, Rx) |
| CAN | UC-5111-LX: 2 per port (Tx, Rx), UC-5112-LX: 2 per port (Tx, Rx), UC-5111-T-LX: 2 per port (Tx, Rx), UC-5112-T-LX: 2 per port (Tx, Rx) |
| Wireless Signal Strength | UC-5112-LX: Cellular/Wi-Fi x 3 UC-5102-LX: Cellular/Wi-Fi x 3 UC-5102-T-LX: Cellular/Wi-Fi x 3 UC-5112-T-LX: Cellular/Wi-Fi x 3 |
- Physical Characteristics
| Housing | Metal |
| Weight | 600 g (1.32 lb) |
| Dimensions | 57 x 136 x 100 mm (2.24 x 5.35 x 3.94 in) |
| Installation | DIN-rail mounting, Wall mounting (with optional kit) |
- Power Parameters
| Input Voltage | 9 to 48 VDC |
| Input Current | 0.95 A @ 9 VDC, 0.23 A @ 48 VDC |
| Power Consumption | 11 W |
- Environmental Limits
| Operating Temperature | Standard Models: -10 to 60°C (14 to 140°F) Wide Temp. Models: Product only: -40 to 85°C (-40 to 185°F) With LTE accessory: -40 to 70°C (-40 to 158°F) With Wi-Fi accessory: -10 to 70°C (14 to 158°F) |
| Storage Temperature | UC-5101-LX: -20 to 70°C (-4 to 158°F) UC-5102-LX: -20 to 70°C (-4 to 158°F) UC-5111-LX: -20 to 70°C (-4 to 158°F) UC-5112-LX: -20 to 70°C (-4 to 158°F) UC-5101-T-LX: -40 to 85°C (-40 to 185°F) UC-5102-T-LX: -40 to 85°C (-40 to 185°F) UC-5111-T-LX: -40 to 85°C (-40 to 185°F) UC-5112-T-LX: -40 to 85°C (-40 to 185°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
| Vibration | 2 Grms @ IEC 60068-2-64, random wave, 5-500 Hz, 1 hr per axis (without USB devices attached) |
| Shock | IEC 60068-2-27 |
- Standards and Certifications
| Safety | UL 60950-1, EN 60950-1, IEC 60950-1 |
| EMC | EN 55032/24, EN 61000-6-2/-6-4 |
| EMI | CISPR 32, FCC Part 15B Class A |
| EMS | IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8 PFMF |
| Green Product | RoHS, CRoHS, WEEE |
- Reliability
| Alert Tools | External RTC (real-time clock) |
| Automatic Reboot Trigger | External WDT (watchdog timer) |
- MTBF
| Time | UC-5101-LX: 728,216 hrs UC-5101-T-LX: 728,216 hrs UC-5102-LX: 704,409 hrs UC-5102-T-LX: 704,409 hrs UC-5111-LX: 584,470 hrs UC-5111-T-LX: 584,470 hrs UC-5112-LX: 568,997 hrs UC-5112-T-LX: 568,997 hrs |
| Standards | Telcordia (Bellcore) Standard TR/SR |
