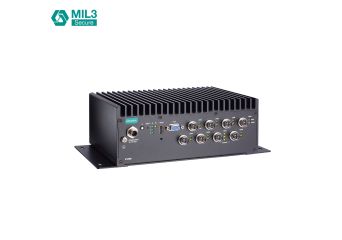

V3200
11th Gen Intel® Core™ processor railway computers with power isolation, multiple expansion slots for wireless, 2 SSD slots
Производител: MOXA
Производител: MOXA
Features and Benefits
- Intel® Celeron®/Intel® Core™ i3/i5/i7 embedded computer for in-vehicle applications
- Multiple interfaces: Up to 8 GbE, 2 serial, 2 USB, 2 DIs, 2 DOs, 1 mPCIe slot for wireless (Wi-Fi 5 or 4G), and 1 M.2 E key for wireless (Wi-Fi 6)
- Supports dual independent displays (VGA and HDMI with 4K resolution)
- Native TSN support (for models with i7-1185GRE processor)
- Onboard TPM module for enhanced cybersecurity
- Complies with all EN 50155 mandatory test items
- EN 50121-4 compliant
- IEC 61373 certified for shock and vibration resistance
- Multiple OSes including Moxa Industrial Linux with 10-year long-term support
Изчерпан
Безплатна доставка от €100
Promocja cenowa na model HDR-15-5
Продукт, предназначен само за професионална употреба
Модели
-
Модел Наличност Гаранция Wishlist Вашата ценаВашата цена Items Quantity ДобавиV3210-TL1-4L-Tx86 computer with Intel® Celeron® 6305E processor, 4 GbE ports, 4 serial ports, 2 DIs, 2 DOs, 2 USB ports, 1 HDMI port, 1 VGA port, 2 2.5" SSD/HDD slots, 1 mPCIe slot, built-in TPM module, 24 to 110 VDC, -40 to 70°C operating temperatureИзчерпан Гаранционен срок: V3210-TL1-4L-Tx86 computer with Intel® Celeron® 6305E processor, 4 GbE ports, 4 serial ports, 2 DIs, 2 DOs, 2 USB ports, 1 HDMI port, 1 VGA port, 2 2.5" SSD/HDD slots, 1 mPCIe slot, built-in TPM module, 24 to 110 VDC, -40 to 70°C operating temperatureНаличност: Изчерпан- -
Модел Наличност Гаранция Wishlist Вашата ценаВашата цена Items Quantity ДобавиV3210-TL3-4L-Tx86 computer with Intel® Core™ i3-1115G4E processor, 4 GbE ports, 4 serial ports, 2 DIs, 2 DOs, 2 USB ports, 1 HDMI port, 1 VGA port, 2 2.5" SSD slots, 1 mPCIe slot, built-in TPM module, 24 to 110 VDC, -40 to 70°C operating temperatureИзчерпан Гаранционен срок: V3210-TL3-4L-Tx86 computer with Intel® Core™ i3-1115G4E processor, 4 GbE ports, 4 serial ports, 2 DIs, 2 DOs, 2 USB ports, 1 HDMI port, 1 VGA port, 2 2.5" SSD slots, 1 mPCIe slot, built-in TPM module, 24 to 110 VDC, -40 to 70°C operating temperatureНаличност: Изчерпан- -
Модел Наличност Гаранция Wishlist Вашата ценаВашата цена Items Quantity ДобавиV3210-TL7-4L-Tx86 computer with Intel® Core™ i7-1185GRE processor, 4 GbE ports, 4 serial ports, 2 DIs, 2 DOs, 2 USB ports, 1 HDMI port, 1 VGA port, 2 2.5" SSD slots, 1 mPCIe slot, built-in TPM module, 24 to 110 VDC, -40 to 70°C operating temperatureИзчерпан Гаранционен срок: V3210-TL7-4L-Tx86 computer with Intel® Core™ i7-1185GRE processor, 4 GbE ports, 4 serial ports, 2 DIs, 2 DOs, 2 USB ports, 1 HDMI port, 1 VGA port, 2 2.5" SSD slots, 1 mPCIe slot, built-in TPM module, 24 to 110 VDC, -40 to 70°C operating temperatureНаличност: Изчерпан- -
Модел Наличност Гаранция Wishlist Вашата ценаВашата цена Items Quantity ДобавиV3210-TL3-4L-CT-Tx86 computer with Intel® Core™ i3-1115G4E processor, 4 GbE ports, 4 serial ports, 2 DIs, 2 DOs, 2 USB ports, 1 HDMI port, 1 VGA port, 2 2.5" SSD slots, 1 mPCIe slot, built-in TPM module, 24 to 110 VDC, -40 to 70°C operating temperature, conformal coatingИзчерпан Гаранционен срок: V3210-TL3-4L-CT-Tx86 computer with Intel® Core™ i3-1115G4E processor, 4 GbE ports, 4 serial ports, 2 DIs, 2 DOs, 2 USB ports, 1 HDMI port, 1 VGA port, 2 2.5" SSD slots, 1 mPCIe slot, built-in TPM module, 24 to 110 VDC, -40 to 70°C operating temperature, conformal coatingНаличност: Изчерпан- -
Модел Наличност Гаранция Wishlist Вашата ценаВашата цена Items Quantity ДобавиV3210-TL1-8L-CT-Tx86 computer with Intel® Celeron® 6305E processor, 8 GbE ports, 4 serial ports, 2 DIs, 2 DOs, 2 USB ports, 1 HDMI port, 1 VGA port, 2 2.5" SSD slots, 1 mPCIe slot, built-in TPM module, 24 to 110 VDC, -40 to 70°C operating temperature, conformal coatingИзчерпан Гаранционен срок: V3210-TL1-8L-CT-Tx86 computer with Intel® Celeron® 6305E processor, 8 GbE ports, 4 serial ports, 2 DIs, 2 DOs, 2 USB ports, 1 HDMI port, 1 VGA port, 2 2.5" SSD slots, 1 mPCIe slot, built-in TPM module, 24 to 110 VDC, -40 to 70°C operating temperature, conformal coatingНаличност: Изчерпан- -
Модел Наличност Гаранция Wishlist Вашата ценаВашата цена Items Quantity ДобавиV3210-TL5-8L-CT-Tx86 computer with Intel® Core™ i5-1145G7E processor, 8 GbE ports, 4 serial ports, 2 DIs, 2 DOs, 2 USB ports, 1 HDMI port, 1 VGA port, 2 2.5" SSD slots, 1 mPCIe slot, built-in TPM module, 24 to 110 VDC, -40 to 70°C operating temperature, conformal coatingИзчерпан Гаранционен срок: V3210-TL5-8L-CT-Tx86 computer with Intel® Core™ i5-1145G7E processor, 8 GbE ports, 4 serial ports, 2 DIs, 2 DOs, 2 USB ports, 1 HDMI port, 1 VGA port, 2 2.5" SSD slots, 1 mPCIe slot, built-in TPM module, 24 to 110 VDC, -40 to 70°C operating temperature, conformal coatingНаличност: Изчерпан- -
Модел Наличност Гаранция Wishlist Вашата ценаВашата цена Items Quantity ДобавиV3210-TL7-8L-CT-Tx86 computer with Intel® Core™ i7-1185GRE processor, 8 GbE ports, 4 serial ports, 2 DIs, 2 DOs, 2 USB ports, 1 HDMI port, 1 VGA port, 2 2.5" SSD slots, 1 mPCIe slot, built-in TPM module, 24 to 110 VDC, -40 to 70°C operating temperature, conformal coatingИзчерпан Гаранционен срок: V3210-TL7-8L-CT-Tx86 computer with Intel® Core™ i7-1185GRE processor, 8 GbE ports, 4 serial ports, 2 DIs, 2 DOs, 2 USB ports, 1 HDMI port, 1 VGA port, 2 2.5" SSD slots, 1 mPCIe slot, built-in TPM module, 24 to 110 VDC, -40 to 70°C operating temperature, conformal coatingНаличност: Изчерпан- -
Модел Наличност Гаранция Wishlist Вашата ценаВашата цена Items Quantity ДобавиV3210-TL7-8L-TSN-CT-Tx86 computer with Intel® Core™ i7-1185GRE processor, 8 GbE ports, 4 serial ports, 2 DIs, 2 DOs, 2 USB ports, 1 HDMI port, 1 VGA port, 2 2.5" SSD slots, 1 mPCIe slot, built-in TPM module, native TSN support, 24 to 110 VDC, -40 to 70°C operating temperature, conformal coatingИзчерпан Гаранционен срок: V3210-TL7-8L-TSN-CT-Tx86 computer with Intel® Core™ i7-1185GRE processor, 8 GbE ports, 4 serial ports, 2 DIs, 2 DOs, 2 USB ports, 1 HDMI port, 1 VGA port, 2 2.5" SSD slots, 1 mPCIe slot, built-in TPM module, native TSN support, 24 to 110 VDC, -40 to 70°C operating temperature, conformal coatingНаличност: Изчерпан-
Аксесоари
-
Модел Наличност Гаранция Wishlist Вашата ценаВашата цена Items Quantity Добави1-meter M12-to-5-pin power cable with waterproof 5-pin A-coded M12 connectorНаличен на складГаранционен срок: €23.00€28.29Влезте, за да проверите цената си 1-meter M12-to-5-pin power cable with waterproof 5-pin A-coded M12 connectorНаличност:Наличен на складНетна цена:€23.00 -
Модел Наличност Гаранция Wishlist Вашата ценаВашата цена Items Quantity ДобавиV3200-LTECat4-GLTelit LE910C4 LTE Cat. 4 mPCIe card, 3 coaxial cables (I-PEX MHF male connector to QMA female connector, 160 mm), 1 thermal padИзчерпан Гаранционен срок: €216.00€265.68Влезте, за да проверите цената си V3200-LTECat4-GLTelit LE910C4 LTE Cat. 4 mPCIe card, 3 coaxial cables (I-PEX MHF male connector to QMA female connector, 160 mm), 1 thermal padНаличност: ИзчерпанНетна цена:€216.00 -
Модел Наличност Гаранция Wishlist Вашата ценаВашата цена Items Quantity ДобавиV3200-WLAN22-ACWi-Fi 5 (802.11ac) module, 1 mPCIe adapter bracket with 4 screws, 2 coaxial cables (I-PEX MHF male connector to QMA female connector, 160 mm), 1 thermal padИзчерпан Гаранционен срок: €216.00€265.68Влезте, за да проверите цената си V3200-WLAN22-ACWi-Fi 5 (802.11ac) module, 1 mPCIe adapter bracket with 4 screws, 2 coaxial cables (I-PEX MHF male connector to QMA female connector, 160 mm), 1 thermal padНаличност: ИзчерпанНетна цена:€216.00 -
Модел Наличност Гаранция Wishlist Вашата ценаВашата цена Items Quantity ДобавиV3200-WLAN22-AXWi-Fi 6 (802.11ax) module, 2 coaxial cables (I-PEX 4 MHF male connector to QMA female connector, 160 mm), 1 thermal padИзчерпан Гаранционен срок: €309.00€380.07Влезте, за да проверите цената си V3200-WLAN22-AXWi-Fi 6 (802.11ax) module, 2 coaxial cables (I-PEX 4 MHF male connector to QMA female connector, 160 mm), 1 thermal padНаличност: ИзчерпанНетна цена:€309.00
Описание
Introduction
The V3200 Series embedded computers are built around an Intel® Core™ i7/i5/i3 or Intel® Celeron® high-performance processor and come with up to 64 GB RAM, one M.2 2280 M key slot, and two 2.5" SSD slots for storage expansion. The computers are compliant with EN 50155 and EN 50121-4 standards covering operating temperature, power input voltage, surge, ESD, and vibration, making them suitable for railway onboard and wayside applications.
For connecting with onboard and wayside systems and devices, the V3200 computers are equipped with a rich set of interfaces including 4 Gigabit Ethernet ports (default; can go up to 8 ports) with one-pair LAN bypass function to ensure uninterrupted data transmission, 2 RS-232/422/485 serial ports, 2 DIs, 2 DOs, and 2 USB 3.0 ports. The built-in TPM 2.0 module ensures platform integrity and provides hardware-based security as well as protection from tampering.
Vehicular applications require reliable connectivity. They also require clear indicators on the device that identify the status of the software. The V3200 computers come with one LTE and 6 SIM-card slots to help establish redundant LTE/Wi-Fi connections and three programmable LEDs that enable monitoring of the runtime status of software.
Appearance

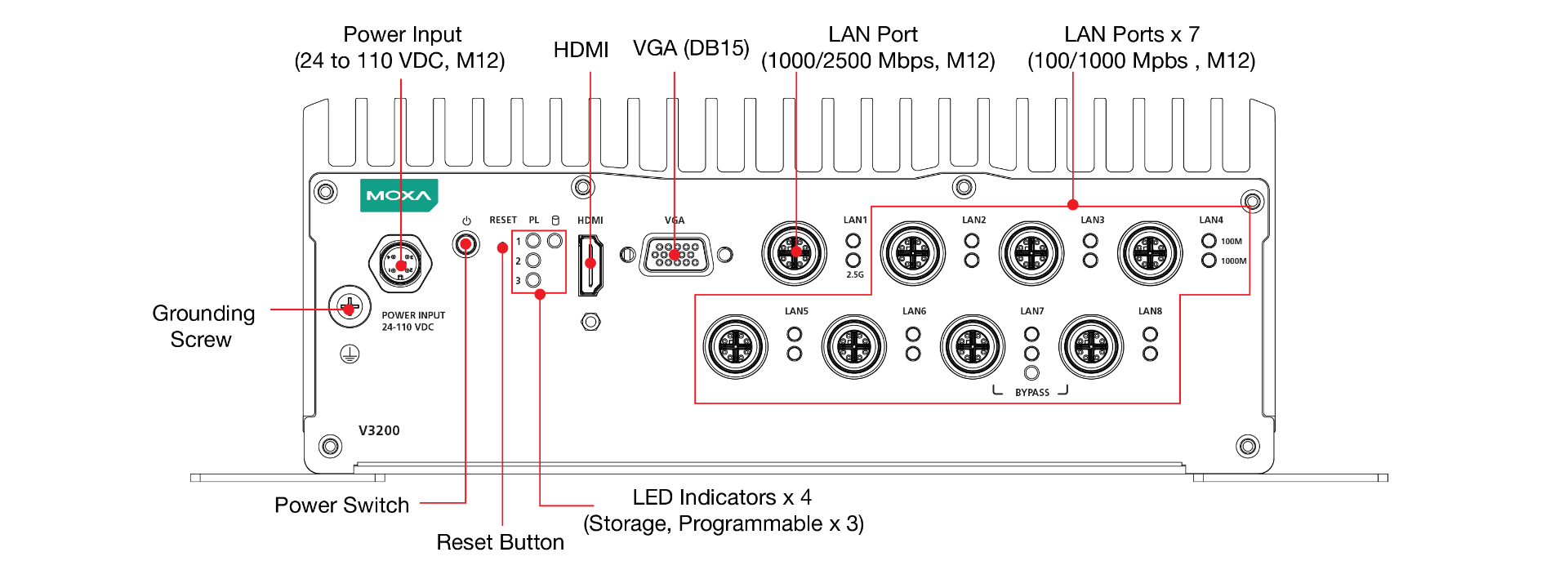

Front View 8P Models

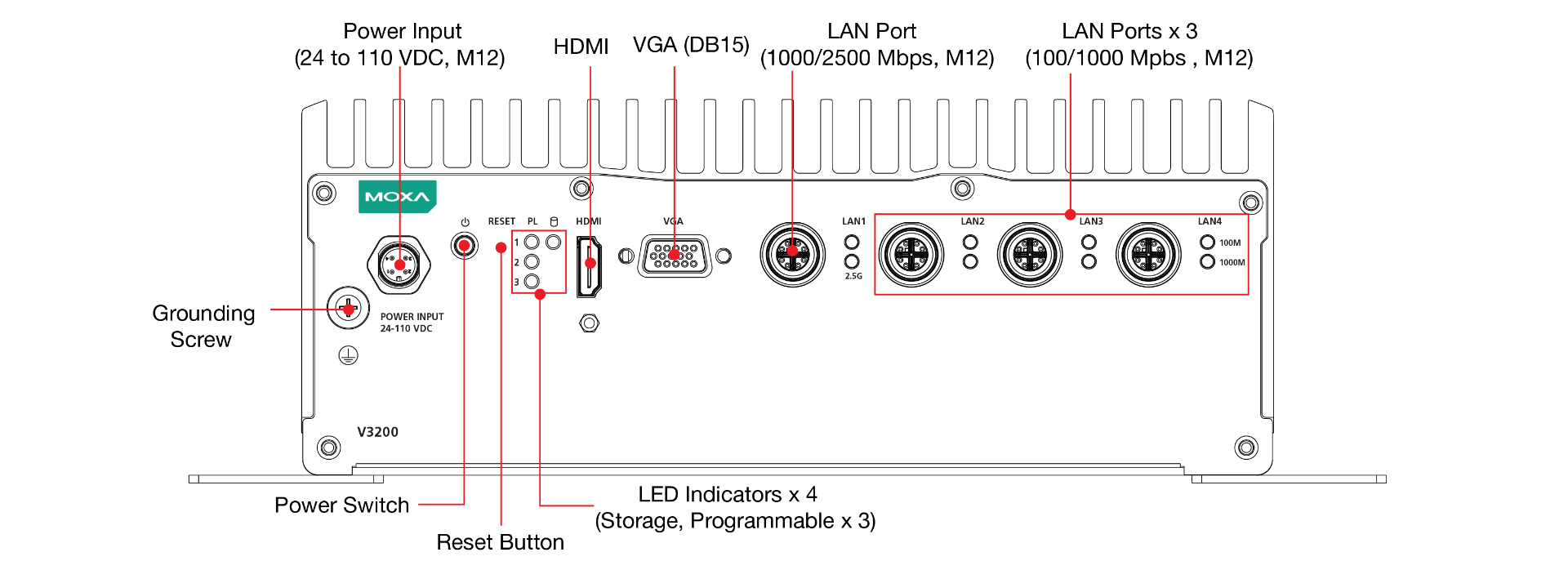

Front View 4P Models
Rear View
Техническа спецификация
- Computer
| CPU | V3210-TL1-4L-T/8L-T/4L-CT-T/8L-CT-T: Intel® Celeron® 6305E processor (2C/2T, 4 MB cache, 1.8 GHz) V3210-TL3-4L-T/8L-T/4L-CT-T/8L-CT-T: Intel® Core™ i3-1115G4E processor (2C/4T, 6 MB cache, 2.2 GHz) V3210-TL5-4L-T/8L-T/4L-CT-T/8L-CT-T: Intel® Core™ i5-1145G7E processor (4C/8T, 8 MB cache, 1.5 GHz) V3210-TL7-4L-T/8L-T/4L-CT-T/8L-CT-T: Intel® Core™ i7-1185G7E processor (4C/8T, 12 MB cache, 1.8 GHz) V3210-TL7-4L-TSN-CT-T/8L-TSN-CT-T: Intel® Core™ i7-1185GRE processor (4C/8T, 12 MB cache, 1.8 GHz) |
| System Memory Slot | SODIMM DDR4 slots × 2 (64 GB max) |
| System Memory Pre-installed | 16 GB DDR4 |
| Storage Slot | 2.5-inch SSD slots × 2 M.2 M-key 2280 slot × 1 (NVMe; 128 GB pre-installed) |
| Supported OS | Windows 10 IoT Enterprise LTSC 2021 64-bit Moxa Industrial Linux 3 (Debian 11, kernel 5.10), 2031 EOL Linux drivers supported: Debian 12 Ubuntu 22.04 LTS (HWE) |
| Graphics Controller | Intel® Celeron®/Core™ i3 Models: Intel® UHD Graphics Intel® Core™ i5/i7 Models: Intel® Iris® Xe Graphics |
- Computer Interface
| Ethernet Ports | Default: 4 ports (2.5 GbE × 1 and GbE × 3), expandable to 8 ports Auto-sensing 1000/2500 Mbps × 1 Auto-sensing 10/100/1000 Mbps × up to 7 LAN1: Intel® Ethernet Network Adapter I225 with Intel® AMT support |
| Serial Ports | RS-232/422/485 ports × 2 (software-selectable, DB9 male) |
| Digital Input | DIs × 2 |
| Digital Output | DOs × 2 |
| USB 3.0 | USB 3.0 hosts × 2, type-A |
| Video Output | VGA × 1, 15-pin D-sub (female) HDMI × 1, type A |
| Wi-Fi Antenna Connector | QMA × 8 (optional with accessory kit) |
| Expansion Slots | M.2 B-key 3052/3050 slots × 2 M.2 E-key slot × 1 (for Wi-Fi 6) mPCIe slot × 1 (for LTE with 2 Micro SIMs, Wi-Fi 5, or I/O expansion) |
| SIM Format | Micro |
| Number of SIMs | 6 |
| TPM | TPM v2.0 |
- Digital Inputs
| Connector | Screw-fastened Euroblock terminal |
| Isolation | 3 kV DC |
| Sensor Type | Dry contact Wet contact (NPN) |
| Dry Contact | Logic 0: Close to GND Logic 1: Open |
| Wet Contact (COM to DI) | Logic 0: 10 to 30 VDC Logic 1: 0 to 3 VDC |
- Digital Outputs
| Connector | Screw-fastened Euroblock terminal |
| Current Rating | 200 mA per channel |
| I/O Type | Sink |
| Voltage | 0 to 30 VDC |
| Isolation | 3 kV DC |
- LED Indicators
| System | Power × 1 Storage × 1 |
| LAN | 2 per port (LAN1: 1000/2500 Mbps, LAN2-LAN8: 100/1000 Mbps) 1 per LAN bypass pair (LAN7-LAN8) |
| Serial | 2 per port (Tx, Rx) |
| User Programmable | 3 |
- Serial Interface
| Baudrate | 50 bps to 115.2 kbps |
| Connector | DB9 male |
| ESD | Contact: 6 kV; Air: 8 kV (level 3) |
| Isolation | 2 kV |
| Data Bits | 5, 6, 7, 8 |
| Stop Bits | 1, 1.5, 2 |
| Parity | None, Even, Odd, Space, Mark |
| Flow Control | RTS/CTS, XON/XOFF Automatic Data Direction Control (ADDC) for RS-485 RTS Toggle (RS-232 only) |
- Serial Signals
| RS-232 | TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND |
| RS-422 | Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-2w | Data+, Data-, GND |
| RS-485-4w | Tx+, Tx-, Rx+, Rx-, GND |
- Power Parameters
| Input Voltage | 24 to 110 VDC |
| Power Connector | M12 A-coded male connector |
| Power Consumption | 100 W (max.) |
- Physical Characteristics
| Housing | Aluminum |
| IP Rating | IP30 |
| Dimensions (without ears) | 250 × 96.7 × 180 mm (9.84 × 3.80 × 7.09 in) |
| Weight | Product Only: 3.86 kg (8.51 lb) Product With Package: 5.10 kg (11.24 lb) |
| Installation | Wall mounting |
| Protection | PCB conformal coating Available on request |
- Environmental Limits
| Operating Temperature | -40 to 70 °C (-40 to 158 °F) |
| Storage Temperature (package included) | -40 to 85 °C (-40 to 185 °F) |
| Ambient Relative Humidity | 5 to 95 % (non-condensing) |
- Standards and Certifications
| EMC | EN 55032/35 |
| EMI | CISPR 32, FCC Part 15B Class A |
| EMS | IEC 61000-4-2 ESD: Contact 6 kV; Air 8 kV IEC 61000-4-3 RS: 80 MHz–1 GHz 20 V/m IEC 61000-4-4 EFT: Power 2 kV; Signal 2 kV IEC 61000-4-5 Surge: Power 2 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8 PFMF |
| Safety | EN 62368-1 IEC 62368-1 UL 62368-1 |
| Railway Fire Protection | EN 45545-2:2020 |
| Railway | EN 50121-4 EN 50121-3-2 EN 50155:2017 |
| Shock | IEC 60068-2-27, IEC 61373 |
| Vibration | IEC 60068-2-64, IEC 61373 |
- Declaration
| Green Product | RoHS, CRoHS, WEEE |
- MTBF
| Time | 4L Models: 382,624 hrs 8L Models: 305,836 hrs |
| Standards | Telcordia (Bellcore), GB |
- Warranty
| Warranty Period | 3 years |
| Details | See www.moxa.com/warranty |
