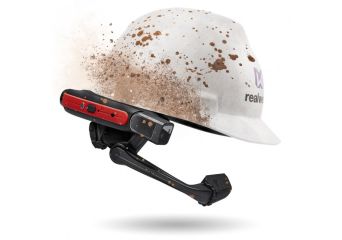

The next generation industrial strength assisted reality solution
Product out of stock
Core Platform & Functions
Operating System
Android 10 (AOSP) + WearHF™ hands-free interface
Chipset
2.0 GHz 8-core Qualcomm® Snapdragon™ 625 with Adreno 506 GPU – OpenGL ES 3.1 & OpenCL 2.0
Memory
16 GB Internal Storage / 2 GB RAM / MicroSD slot (max card supported 64 GB)
Included Applications
Document Navigator, Camera with Barcode Reader, Video Recorder, Media Player
Languages Supported
English, Spanish, French, German, Italian, Portuguese, Russian, Mandarin Chinese, Japanese, Korean, Thai, Polish
Connectivity & Sensors
Bluetooth
Bluetooth Low Energy 4.1 LE
Wi-Fi
802.11 a/b/g/n/ac – 2.4GHz and 5GHz
GPS and Location
GPS, GLONASS, A-GPS
IMU
9-DOF (3-axis accelerometer, magnetometer, and gyroscope), software enhanced stabilization
Battery
Capacity
3400 mAh Li-Ion, non-removable, rechargeable
Charging cable contains an inline “safety box”
Battery Life
Full shift (8-10 hours) with typical use
Physical Characteristics
Weight
430g
Ruggedization
Intrinsically safe, IP66, MIL-STD-810G, 2-meter drop tested
Dedicated Keys
Power key, application-specific Action key
Ports
3.5mm audio, 1 micro-USB for data and charging
Boom Arm
Adjust six ways for all head sizes, left or right eye compatible, display flips out of the way when not in use
Display
Type
20° field-of-view, 1-meter fixed focus 24-bit color LCD, 0.33 inch diagonal, outdoor visible
Resolution
WVGA (854×480)
Audio
Microphone
4 digital microphones with active noise cancellation
Accurate voice recognition even in 95 dBA of typical industrial noise
Speaker
Internal 91 dB loudspeaker
Multimedia
Camera
16 MP 4-axis optical image stabilization, PDAF with LED flashlight
Video
Up to 1080p @30fps. Codecs: VP8, VP9 and hardware encoding support for H.264, H.265 HEVC
Accessories
Included
Wall charger, Micro-USB Charging Cable with inline Charging Protection “safety box”, Overhead Strap, Rear Head Pad
Optional
Hard Hat Clips, Instrinsically Safe (IS certified) Ear Bud Hearing Protection Headphone rated at 33dB noise reduction rating (NRR), Soft Pouch Carrying Case, Semi-Rigid Carrying Case, replacement Overhead Straps and Rear Pads, Hard Hat, Micro SD card
