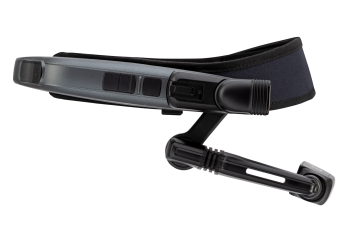

RealWear Navigator 520

The next generation industrial strength assisted reality solution

Производител: RealWear

An Android head-mounted rugged tablet
The biggest screen among RealWear devices
Voice control via predefined commands
Built-in 48MP camera with optical image stabilization
The display is placed right in front of the user's eye
Modular design
Spill-proof (IP66) and 2m drop-proof (MIL-STD-810H)
Dedicated for remote service, diagnostics, inspection, efficient documentation of procedures.

Product out of stock

Безплатна доставка от €100

Promocja cenowa na model HDR-15-5

Продукт, предназначен само за професионална употреба

Description
Technical Specification
Download
Recommended Products

RealWear Navigator 520

Description

THE BEST JUST GOT BETTER

Just when you thought frontline wearables couldn’t get any better than RealWear Navigator 500, RealWear has raised the bar with the introduction of our new improved eye box – the HyperDisplay!

Included with the new RealWear Navigator 520, the HyperDisplay offers a bigger, sharper, bolder image to make work on the frontline even better.

SEEING IS BELIEVING

RealWear Navigator 520 is the latest device in the award-winning RealWear Navigator 500 Series. Navigator 520 offers the enhanced HyperDisplay while maintaining all of the amazing features of the RealWear Navigator 500, making it our best wearable yet.

ENHANCES REMOTE COLLABORATION

Frontline Workers can easily connect with remote experts in real-time, from anywhere, using optimized video collaboration applications. Enables frontline workers to get assistance from an expert remotely to resolve any complex issue.

HANDS FREE WEARABLE DIGITAL WORKFLOW DEVICES

Digital Workflow solutions provide visual instructions, checklists, data entry, and visual documentation of completed steps while on the go. Assisted reality devices enable digital workflow to reach workers when and where they need it—improving productivity and reducing operational errors.

REVOLUTIONARY MODULAR DESIGN

Enables on-the-job agility and adaptability to support even more use cases. Optional Thermal Camera is now available.

48MP CAMERA SENSOR

Stunning camera with an incredible low-light performance, enhanced zoom without sacrificing image quality and advanced video stabilization. The modular design allows the camera to be easily removed and swapped out with other accessories or camera cover, if environment does not permit. It features two modes.

Standard Mode delivers 12MP image resolution with 5 zoom levels. Great low light performance.

Telephoto Mode with enhanced zoom that delivers >6X zoom while still retaining HD quality (720p) or >4X zoom while retaining full HD quality (1080p).

SEE THE INVISIBLE - THERMAL CAMERA MODULE*

Solve problems faster by adding fully hands-free thermal capability including MSX^® Enhanced Image Mode, which adds visible light details to full thermal images for greater detail (*Thermal Camera Module is an optional accessory)

Technical Specification

Display Type	24° field-of-view, 24-bit color LCD, 0.35-inch diagonal, outdoor visible
Resolution	HD (1280X720)
PPE Compatibility	Works with many hard hats, protective eyewear, masks and more
Microphone	4 digital microphones with active noise cancellation Accurate voice recognition in noise up to 100 dBA
Speaker	Internal 94 dBA loudspeaker
Camera Image	48 MP Sensor, PDAF with LED flashlight
Camera Video	Up to 1080p @ 60fps, >6X zoom in HD, video stabilization. codecs: VP8, VP9, H.264, H.265 HEVC
Warranty	1-Year Warranty
Extended Service & Support Plans	Available
Foresight Cloud Services	Accelerates centralized deployment and management of devices
Included accessories	Workband, USB Type-C charging cable
Security	Qualcomm® Trusted Execution Environment, Crypto Engine, Secure Boot
Operating System	Android 11 (AOSP) + WearHF™ hands-free interface + Enterprise features
Chipset	2.0 GHz 8-core Qualcomm® Snapdragon™ 662 with Adreno 610 GPU - OpenGL® ES 3.2 & OpenCL™ 2.0
Memory	64GB internal storage / 4GB RAM / MicroSD slot (max card supported 512GB)
Languages & Dialects Supported	Chinese (Cantonese, Mandarin-Simplified and Traditional), Czech, Dutch, English (American, Australian, British), French, German, Indonesian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Spanish, Thai
Bluetooth	Bluetooth® 5.1
Wi-Fi	802.11 a/b/g/n/ac - 2.4 GHz and 5GHz
GPS and Location	• GPS, Glonass, BeiDou, Galileo, QZSS, and SBAS • NavIC support • Dual-Frequency GNSS (L1 + L5) • Qualcomm® Sensor-Assisted Positioning
IMU - Head Movement Tracking	3 IMUs (including 3-axis accelerometers, gyroscopes, eCompass)
Capacity	2,600 mAh / 10.0 Wh Li-polymer, rechargeable, hot-swappable
Weight	9.7oz/274g
Ruggedization	IP66, MIL-STD-810H, 6.5 feet / 2-meter drop
Dedicated Buttons	Power button (with integrated fingerprint sensor), Programmable: action button, left button, right button
Ports	1/8” / 3.5mm audio, 1 USB Type-C
Boom Arm	Adjusts six ways for most head sizes, left or right eye compatible, display can be moved out of way when not in use
Operating Temperature, Humidity	-4°F to +122°F / -20°C to +50°C, 5% to 95% relative humidity (non-condensing)
Included Applications	Document Navigator, Camera with Barcode Reader, Audio Recorder, Video Recorder, Webpage Viewer, Cloud Sync, Media Player, Calculator, Pedometer, Timer
Sign-in Options	Companion App, Voice Keyboard with secure mode
