Description

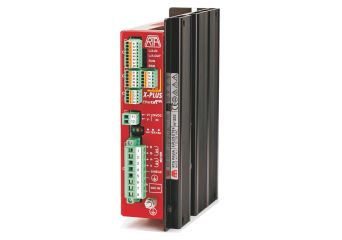

New series of stepping motor drives with EtherCAT interface and direct input from the main AC power supply (from 110 VAC to 230 VAC). Optimized for coupling with SANYO DENKI stepping motors, fitted with encoder. Possibility to be connected directly from the main (from 110 VAC to 230 VAC), saving on transformer use. High performance in terms of power and able to further increase the application potential.
Highlights:
- Communication by means of EtherCAT interface.
- STO (SIL3) - only S4 version
- Modes of operation: Profile Position and CSP.
- Full digital microstepping drive.
- Wide range of SANYO DENKI stepping motors to be coupled with: holding torque up to 9,2 Nm and flange size 86 mm.
- Extremely compact size.
- A highly sophisticated opertaion system, preserving anyhow the traditional ease of use of R.T.A. drives.
- UL/CSA
EtherCAT interface:
- Wide range of motor phase current setting.
- Motor current overboost.
- Intelligent management of the current profile.
- Communication by means of EtherCAT (CoE) interface.
- Modes of operation: Profile Position and CSP.
- Different variety of HOMING operation modes.
- Encoder feedback.
Technical Specification
| Voltage | 110-230 VAC |
| Current (A) | 4 |
| Type | EtherCAT |
| Dimensions (mm) | 169 x 129 x 46 |
| Connector | plug-in |
| Functions |
Electronic damping facility for further acoustic noise and mechanic vibrations reduction. Optoinsulated auxiliary and programmable inputs and outputs. Optimized for coupling with SANYO DENKI stepping motors, fitted with encoder. |
| Protections |
Protection against under voltage and over voltage. |
| Warranty |
24 months |
