A52/A53

Entry-level RS-232 to RS-422/485 converters

Производител: MOXA

ADDC™ (Automatic Data Direction Control) RS-485 data control
Automatic baudrate detection
RS-422 hardware flow control: CTS, RTS signals
LED indicators for power and signal status
RS-485 multidrop operation, up to 32 nodes
2 kV isolation protection (A53)
Built-in 120-ohm termination resistors

Цена от 42,00 € без данък

High price? Log in and buy cheaper

In stock

Place the order by 12:00, the package will be shipped on the same day

Free shipping from €300

Вижте 4 модела

Promocja cenowa na model HDR-15-5

Models
Accessories
Description
Technical Specification
Download
Recommended Products

A52/A53

Models

Model	Availability	Warranty	Wishlist	Your Price	Your Price	Items Quantity Add
A52/DB9F RS-232/422/485 Converter. DB9F Cable	In stock	Warranty:		42,00 € 51,66 € Login to check your price	Login to check your price	pcs.

A52/DB9F

RS-232/422/485 Converter. DB9F Cable

Availability:

In stock

Net price:

42,00 €

Model	Availability	Warranty	Wishlist	Your Price	Your Price	Items Quantity Add
A52/EU/DB9F RS-232/422/485 Converter. adapter. DB9F Cable	In delivery	Warranty:		50,00 € 61,50 € Login to check your price	Login to check your price	pcs.

A52/EU/DB9F

RS-232/422/485 Converter. adapter. DB9F Cable

Availability: In delivery

Net price:

50,00 €

Model	Availability	Warranty	Wishlist	Your Price	Your Price	Items Quantity Add
A53/DB9F RS-232/422/485 Converter. 2KV Isolation. DB9F Cable	In stock	Warranty:		81,00 € 99,63 € Login to check your price	Login to check your price	pcs.

A53/DB9F

RS-232/422/485 Converter. 2KV Isolation. DB9F Cable

Availability:

In stock

Net price:

81,00 €

Model	Availability	Warranty	Wishlist	Your Price	Your Price	Items Quantity Add
A53/EU/DB9F RS-232/422/485 Converter. 2KV Isolation. CN adapter. DB9F Cable	In stock	Warranty:		91,00 € 111,93 € Login to check your price	Login to check your price	pcs.

A53/EU/DB9F

RS-232/422/485 Converter. 2KV Isolation. CN adapter. DB9F Cable

Availability:

In stock

Net price:

91,00 €

Accessories

Model	Availability	Warranty	Wishlist	Your Price	Your Price	Items Quantity Add
CN20060 CN20060 Connection CBL RJ45/10P/M9 1.5M	In stock	Warranty:		8,00 € 9,84 € Login to check your price	Login to check your price	pcs.

CN20060

CN20060 Connection CBL RJ45/10P/M9 1.5M

Availability:

In stock

Net price:

8,00 €

Model	Availability	Warranty	Wishlist	Your Price	Your Price	Items Quantity Add
CN20070 CN20070 Connection CBL RJ45/10P/F9 1.5M	Out of stock	Warranty:		6,00 € 7,38 € Login to check your price	Login to check your price	pcs.

CN20070

CN20070 Connection CBL RJ45/10P/F9 1.5M

Availability: Out of stock

Net price:

6,00 €

Description

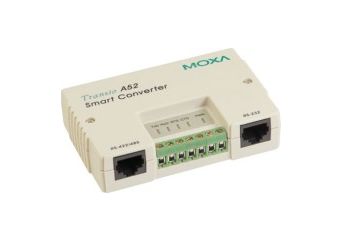

The A52 and A53 are general RS-232 to RS-422/485 converters designed for users who need to extend RS-232 transmission distance and increase networking capability.

Technical Specification

Serial Interface

Connector	10-pin RJ45
Flow Control	RTS/CTS
Isolation	A53 Series: 2 kV
No. of Ports	2
RS-485 Data Direction Control	ADDC® (automatic data direction control)
Serial Standards	RS-232, RS-422, RS-485

Serial Signals

RS-232	TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422	Tx+, Tx-, Rx+, Rx-, RTS+, RTS-, CTS+, CTS-, GND
RS-485-4w	Tx+, Tx-, Rx+, Rx-, GND
RS-485-2w	Data+, Data-, GND

Power Parameters

Input Current	A52 Series: 170 mA @ 9 VDC A53 Series: 195 mA @ 9 VDC
Input Voltage	9 to 30 VDC
No. of Power Inputs	1
Overload Current Protection	Supported
Power Consumption	A52 Series: 170 mA @ 9 VDC A53 Series: 195 mA @ 9 VDC
Source of Input Power	Power input jack

Physical Characteristics

Housing	Plastic
IP Rating	IP30
Dimensions	90 x 60 x 21 mm (3.54 x 2.36 x 0.83 in)
Weight	85 g (0.19 lb)
Installation	Desktop

Environmental Limits

Operating Temperature	0 to 55°C (32 to 131°F)
Storage Temperature (package included)	-20 to 75°C (-4 to 167°F)
Ambient Relative Humidity	5 to 95% (non-condensing)

Standards and Certifications

EMC	EN 55032/24
EMI	CISPR 32, FCC Part 15B Class A
EMS	IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV IEC 61000-4-5 Surge: Power: 1 kV IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m IEC 61000-4-8 PFMF
Environmental Testing	IEC 60068-2-1 IEC 60068-2-14 IEC 60068-2-2 IEC 60068-2-3
Safety	EN 60950-1, IEC 60950-1
Vibration	IEC 60068-2-6
