Description

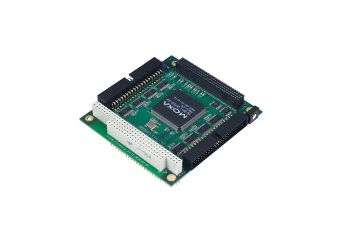

The CB-108 PC/104-Plus modules come with 8 RS-232 ports, and can be used with PC/104-Plus CPU boards that accept the PC/104-Plus expansion interface. Optional DB9 and DB25 connection cables are available for connecting to serial devices, and versatile driver support makes the modules suitable for a wide range of applications. The CB-108 modules can be used on the PC/104-Plus (PCI) bus, and provide a reliable, high-performance solution for multiport serial communication.
Technical Specification
- Serial Interface
| Comm. Controller | 16C550C or compatible x 4 |
| Bus | PC/104 plus bus |
| Connector | 40-pin box header |
| DIP Switches | Serial interface |
| IRQ | Assigned by BIOS |
| I/O Address | Assigned by BIOS |
| FIFO | 128 bytes |
| Max. No. of Boards per PC | 8 |
| No. of Ports | 8 |
| Serial Standards | RS-232 |
| Baudrate | 50 bps to 921.6 kbps |
| Data Bits | 5, 6, 7, 8 |
| Stop Bits | 1, 1.5, 2 |
| Parity | None, Even, Odd, Space, Mark |
| Flow Control | None, RTS/CTS, XON/XOFF |
- Serial Signals
| RS-232 | TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND |
- Power Parameters
| Input Current | 153 mA @ 5 VDC |
| Input Voltage | 5 VDC |
- Physical Characteristics
| Dimensions | 90 x 96 mm (3.54 x 3.78 in) |
- LED Interface
| LED Indicators | Built-in Tx, Rx LEDs for each port |
- Environmental Limits
| Operating Temperature | CB-108: 0 to 55°C (32 to 131°F) CB-108-T: -40 to 85°C (-40 to 185°F) |
| Storage Temperature (package included) | -40 to 85°C (-40 to 185°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
- Standards and Certifications
| EMC | EN 55032/24 |
| EMI | CISPR 32, FCC Part 15B Class A |
| EMS | IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV IEC 61000-4-5 Surge: Power: 0.5 kV IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m IEC 61000-4-8 PFMF |
| Environmental Testing | IEC 60068-2-1 IEC 60068-2-2 IEC 60068-2-3 IEC 60068-2-14 |
| Safety | EN 60950-1, UL 60950-1 |
| Vibration | IEC 60068-2-6 |
- MTBF
| Time | 403,631 hrs |
| Standards | Telcordia (Bellcore), GB |
