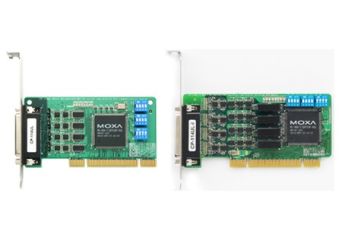

CP-114UL/UL-I
4-port RS-232/422/485 Universal PCI serial boards with optional 2 kV isolation
Производител: MOXA
Производител: MOXA
- Over 700 kbps data throughput for top performance
- 128-byte FIFO and on-chip H/W, S/W flow control
- Universal PCI compatible with 3.3/5 V PCI and PCI-X
- 921.6 kbps maximum baudrate for fast data transmission
- Drivers provided for a broad selection of operating systems, including Windows and Linux
- Easy maintenance with built-in LEDs
- Wide-temperature model available for -40 to 85°C environments
Цена от € 208,00 без данък
High price? Log in and buy cheaper
In stock
Поръчайте до 12:00 и ще бъде изпратен в рамките на деня
Безплатна доставка от €100
Promocja cenowa na model HDR-15-5
Продукт, предназначен само за професионална употреба
CP-114UL/UL-I
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddCP-114UL/DB9M4 Port UPCI Board, w/ DB9M Cable, RS-232/422/485, LowProfileOut of stock Warranty: € 221,00€ 271,83Login to check your price CP-114UL/DB9M4 Port UPCI Board, w/ DB9M Cable, RS-232/422/485, LowProfileAvailability: Out of stockNet price:€ 221,00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddCP-114UL-I-DB9M4 Port UPCI Board, w/DB9M Cable, RS-232/422/485, w/Isolation, Low ProfileIn stockWarranty: € 465,00€ 571,95Login to check your price CP-114UL-I-DB9M4 Port UPCI Board, w/DB9M Cable, RS-232/422/485, w/Isolation, Low ProfileAvailability:In stockNet price:€ 465,00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddCP-114UL-I-T4 Port UPCI Board, w/o Cable, RS-232/422/485, w/Isolation, Low Profile, Wide TemperatureOut of stock Warranty: € 579,00€ 712,17Login to check your price CP-114UL-I-T4 Port UPCI Board, w/o Cable, RS-232/422/485, w/Isolation, Low Profile, Wide TemperatureAvailability: Out of stockNet price:€ 579,00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddCP-114UL-T4 Port UPCI Board, RS-232/422/485, LowProfile, Wide TemperatureOut of stock Warranty: € 232,00€ 285,36Login to check your price CP-114UL-T4 Port UPCI Board, RS-232/422/485, LowProfile, Wide TemperatureAvailability: Out of stockNet price:€ 232,00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddCP-114UL w/o Cable4 Port UPCI Board, w/o Cable, RS-232/422/485, LowProfileOut of stock Warranty: € 208,00€ 255,84Login to check your price CP-114UL w/o Cable4 Port UPCI Board, w/o Cable, RS-232/422/485, LowProfileAvailability: Out of stockNet price:€ 208,00
Description
Moxa’s CP-114UL/UL-I Series of multiport serial boards is designed to be used by industrial automation system integrators for long-distance, multipoint, PC-based data acquisition applications. On-chip Automatic Data Direction Control for precision RS-485 communication requires precise timing control to enable and disable the line driver. The Moxa Turbo Serial Engine™ chip that powers the CP-114UL/UL-I boards come with on-chip ADDC®, which makes RS-485 as easy to use as RS-232. In RS-485 mode, the serial port can connect up to 31 daisy-chained RS-485 devices within a range of 1.2 km. For long-distance RS-485 communication, 2 kV electrical isolation protections are available to prevent equipment damage.
Drivers Provided for Windows, Linux, and UNIX
Moxa continues to support a wide variety of operating systems, and the CP-114UL/UL-I boards are no exception. Reliable Windows and Linux/UNIX drivers are provided for all Moxa boards, and other operating systems, such as WEPOS, are also supported for embedded integration.
Technical Specification
- Serial Interface
| Comm. Controller | MU860 (16C550C compatible) |
| Bus | 32-bit Universal PCI |
| Connector | DB44 female |
| FIFO | 128 bytes |
| Max. No. of Boards per PC | 8 |
| No. of Ports | 4 |
| Serial Standards | RS-232, RS-422, RS-485 |
| Baudrate | 50 bps to 921.6 kbps |
| Data Bits | 5, 6, 7, 8 |
| Stop Bits | 1, 1.5, 2 |
| Flow Control | None, RTS/CTS, XON/XOFF |
| Parity | None, Even, Odd, Space, Mark |
| Isolation | CP-114UL-I Series: 2 kV |
- Serial Signals
| RS-232 | TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND |
| RS-422 | Tx+, Tx-, Rx+, Rx-, RTS+, RTS-, CTS+, CTS-, GND |
| RS-485-4w | Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-2w | Data+, Data-, GND |
- Serial Software Features
| Windows Drivers | DOS, Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded |
| Linux Drivers | Linux kernel 2.4.x, Linux kernel 2.6.x, Linux kernel 3.x, Linux kernel 4.x, Linux kernel 5.x |
| UNIX Drivers | QNX 6, SCO OpenServer, UnixWare 7, Solaris 10, FreeBSD |
- Power Parameters
| Input Current | CP-114UL Series: 320 mA @ 5 VDC CP-114UL-I Series: 465 mA @ 5 VDC |
- Physical Characteristics
| Dimensions | CP-114UL Series: 64.4 x 120 mm (2.53 x 4.72 in) CP-114UL-I Series: 64.4 x 130 mm (2.53 x 5.12 in) |
- LED Interface
| LED Indicators | Built-in Tx, Rx LEDs for each port |
- Environmental Limits
| Operating Temperature | Standard Models: 0 to 55°C (32 to 131°F) Wide Temp. Models: -40 to 85°C (-40 to 185°F) |
| Storage Temperature (package included) | -40 to 85°C (-40 to 185°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
- Standards and Certifications
| EMC | EN 55032/24 |
| EMI | CISPR 32, FCC Part 15B Class B |
| EMS | All models: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m CP-114UL-I Series: IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV IEC 61000-4-5 Surge: Power: 2 kV IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m IEC 61000-4-8 |
| International Approval | CP-114UL-DB9M: KC |
- Declaration
| Green Product | RoHS, CRoHS, WEEE |
- MTBF
| Time | 114,223 hrs |
| Standards | Telcordia SR332 |
