CP-118U/CP-138U
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddCP-138U8 Port UPCI Board, RS-422/485Out of stock Warranty: € 340,00€ 418,20Login to check your price CP-138U8 Port UPCI Board, RS-422/485Availability: Out of stockNet price:€ 340,00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddCP-118U8 Port UPCI Board, RS-232/422/485In stockWarranty: € 360,00€ 442,80Login to check your price CP-118U8 Port UPCI Board, RS-232/422/485Availability:In stockNet price:€ 360,00
Accessories
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddCable/CBL-M62M25x8-100In stockWarranty: € 40,00€ 49,20Login to check your price Cable/CBL-M62M25x8-100Availability:In stockNet price:€ 40,00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddCable/CBL-M62M9x8-100In stockWarranty: € 34,00€ 41,82Login to check your price Cable/CBL-M62M9x8-100Availability:In stockNet price:€ 34,00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity Add8 Port Connection Box, DB25F, 150CM CableOut of stock Warranty: € 100,00€ 123,00Login to check your price 8 Port Connection Box, DB25F, 150CM CableAvailability: Out of stockNet price:€ 100,00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity Add8 Port Connection Box, DB25M, 150CM CableOut of stock Warranty: € 100,00€ 123,00Login to check your price 8 Port Connection Box, DB25M, 150CM CableAvailability: Out of stockNet price:€ 100,00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity Add8 Port Connection Box, DB25F, w/ SurgeOut of stock Warranty: € 214,00€ 263,22Login to check your price 8 Port Connection Box, DB25F, w/ SurgeAvailability: Out of stockNet price:€ 214,00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity Add8 Port Connection Box, DB9M, Matel CaseOut of stock Warranty: € 109,00€ 134,07Login to check your price 8 Port Connection Box, DB9M, Matel CaseAvailability: Out of stockNet price:€ 109,00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity Add8 Port Connection Box, RJ45, Matel CaseOut of stock Warranty: € 97,00€ 119,31Login to check your price 8 Port Connection Box, RJ45, Matel CaseAvailability: Out of stockNet price:€ 97,00
Description

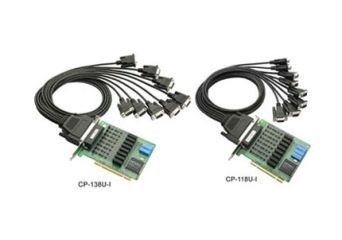

The CP-118U and CP-138U are smart, 8-port Universal PCI serial boards designed for POS and ATM applications and for use by industrial automation system manufacturers and system integrators. Both boards are compatible with all major operating systems. In addition, the CP-118U’s 8 RS-232/422/485 ports and the CP-138U’s 8 RS-422/485 ports support data rates up to 921.6 kbps and provide full modem control signals to ensure compatibility with a wide range of serial peripherals. The CP-118U and CP-138U support both 3.3 V and 5 V PCI buses, making them suitable for installation in most PC servers.
Drivers Provided for Windows, Linux, and UNIX
Moxa continues to support a wide variety of operating systems, and the CP-118U and CP-138U serial boards are no exception. Reliable Windows and Linux/UNIX drivers are provided for all Moxa boards, and other operating systems, such as WEPOS, are also supported for embedded integration.
Technical Specification
- Serial Interface
| Comm. Controller | MU860 (16C550C compatible) |
| Bus | 32-bit Universal PCI |
| Connector | DB62 female |
| FIFO | 128 bytes |
| Max. No. of Boards per PC | 8 |
| No. of Ports | 8 |
| Serial Standards | CP-118U Series: RS-232, RS-422, RS-485 CP-138U Series: RS-422, RS-485 |
| Baudrate | 50 bps to 921.6 kbps |
| Data Bits | 5, 6, 7, 8 |
| Stop Bits | 1, 1.5, 2 |
| Parity | None, Even, Odd, Space, Mark |
| Flow Control | CP-118U Series: None, RTS/CTS, XON/XOFF CP-138U Series: None, XON/XOFF |
- Serial Signals
| RS-232 | TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND |
| RS-422 | Tx+, Tx-, Rx+, Rx-, RTS+, RTS-, CTS+, CTS-, GND |
| RS-485-4w | Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-2w | Data+, Data-, GND |
- Serial Software Features
| Windows Drivers | DOS, Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded |
| Linux Drivers | Linux kernel 2.4.x, Linux kernel 2.6.x, Linux kernel 3.x, Linux kernel 4.x, Linux kernel 5.x |
| UNIX Drivers | QNX 6, SCO OpenServer, UnixWare 7, Solaris 10, FreeBSD |
- Power Parameters
| Input Current | CP-118U Series: 240 mA @ 5 VDC (RS-232); 300 mA @ 5 VDC (RS-422) CP-138U Series: 135 mA @ 5 VDC (RS-422) |
- Physical Characteristics
| Dimensions | 82 x 135 mm (3.22 x 5.31 in) |
- LED Interface
| LED Indicators | Built-in Tx, Rx LEDs for each port |
- Environmental Limits
| Operating Temperature | Standard Models: 0 to 55°C (32 to 131°F) Wide Temp. Models: -40 to 85°C (-40 to 185°F) |
| Storage Temperature (package included) | -40 to 85°C (-40 to 185°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
- Standards and Certifications
| EMC | EN 55032/24 |
| EMI | CISPR 32, FCC Part 15B Class B |
| EMS | IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m |
| International Approval | CP-138U: KC |
- Declaration
| Green Product | RoHS, CRoHS, WEEE |
- MTBF
| Time | CP-118U Series: 1,073,385 hrs CP-138U Series: 1,147,210 hrs |
| Standards | Telcordia SR332 |
