- Developed according to the IEC 62443-4-1 and compliant with the IEC 62443-4-2 industrial cybersecurity standards
- Turbo Ring and Turbo Chain (recovery time < 20 ms @ 250 switches), and RSTP/STP for network redundancy
- Wide range of power input options for flexible deployment
- Compact and flexible housing design to fit into confined spaces
- Supports MXstudio for easy, visualized industrial network management
Цена от 1 601,00 € без данък
High price? Log in and buy cheaper
Product out of stock
Free shipping from €300
Promocja cenowa na model HDR-15-5
Models
Филтър: ()
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddEDS-4009-3MSC-LVManaged Ethernet switch with 6 10/100BaseT(X) ports, 3 100BaseFX multi-mode ports with SC connectors, dual power inputs 12/24/48 VDC, -10 to 60°C operating temperatureOut of stock Warranty: 1 601,00 €1 969,23 €Login to check your price EDS-4009-3MSC-LVManaged Ethernet switch with 6 10/100BaseT(X) ports, 3 100BaseFX multi-mode ports with SC connectors, dual power inputs 12/24/48 VDC, -10 to 60°C operating temperatureAvailability: Out of stockNet price:1 601,00 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddEDS-4009-3MSC-LV-TManaged Ethernet switch with 6 10/100BaseT(X) ports, 3 100BaseFX multi-mode ports with SC connectors, dual power inputs 12/24/48 VDC, -40 to 75°C operating temperatureOut of stock Warranty: 1 729,00 €2 126,67 €Login to check your price EDS-4009-3MSC-LV-TManaged Ethernet switch with 6 10/100BaseT(X) ports, 3 100BaseFX multi-mode ports with SC connectors, dual power inputs 12/24/48 VDC, -40 to 75°C operating temperatureAvailability: Out of stockNet price:1 729,00 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddEDS-4009-3MSC-HVManaged Ethernet switch with 6 10/100BaseT(X) ports, 3 100BaseFX multi-mode ports with SC connectors, single power input 110/220 VAC/VDC, -10 to 60°C operating temperatureOut of stock Warranty: 1 707,00 €2 099,61 €Login to check your price EDS-4009-3MSC-HVManaged Ethernet switch with 6 10/100BaseT(X) ports, 3 100BaseFX multi-mode ports with SC connectors, single power input 110/220 VAC/VDC, -10 to 60°C operating temperatureAvailability: Out of stockNet price:1 707,00 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddEDS-4009-3MSC-HV-TManaged Ethernet switch with 6 10/100BaseT(X) ports, 3 100BaseFX multi-mode ports with SC connectors, single power input 110/220 VAC/VDC, -40 to 75°C operating temperatureOut of stock Warranty: 1 839,00 €2 261,97 €Login to check your price EDS-4009-3MSC-HV-TManaged Ethernet switch with 6 10/100BaseT(X) ports, 3 100BaseFX multi-mode ports with SC connectors, single power input 110/220 VAC/VDC, -40 to 75°C operating temperatureAvailability: Out of stockNet price:1 839,00 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddEDS-4009-3MST-LVManaged Ethernet switch with 6 10/100BaseT(X) ports, 3 100BaseFX multi-mode ports with ST connectors, dual power inputs 12/24/48 VDC, -10 to 60°C operating temperatureOut of stock Warranty: 1 601,00 €1 969,23 €Login to check your price EDS-4009-3MST-LVManaged Ethernet switch with 6 10/100BaseT(X) ports, 3 100BaseFX multi-mode ports with ST connectors, dual power inputs 12/24/48 VDC, -10 to 60°C operating temperatureAvailability: Out of stockNet price:1 601,00 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddEDS-4009-3MST-LV-TManaged Ethernet switch with 6 10/100BaseT(X) ports, 3 100BaseFX multi-mode ports with ST connectors, dual power inputs 12/24/48 VDC, -40 to 75°C operating temperatureOut of stock Warranty: 1 729,00 €2 126,67 €Login to check your price EDS-4009-3MST-LV-TManaged Ethernet switch with 6 10/100BaseT(X) ports, 3 100BaseFX multi-mode ports with ST connectors, dual power inputs 12/24/48 VDC, -40 to 75°C operating temperatureAvailability: Out of stockNet price:1 729,00 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddEDS-4009-3MST-HVManaged Ethernet switch with 6 10/100BaseT(X) ports, 3 100BaseFX multi-mode ports with ST connectors, single power input 110/220 VAC/VDC, -10 to 60°C operating temperatureOut of stock Warranty: 1 707,00 €2 099,61 €Login to check your price EDS-4009-3MST-HVManaged Ethernet switch with 6 10/100BaseT(X) ports, 3 100BaseFX multi-mode ports with ST connectors, single power input 110/220 VAC/VDC, -10 to 60°C operating temperatureAvailability: Out of stockNet price:1 707,00 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddEDS-4009-3MST-HV-TManaged Ethernet switch with 6 10/100BaseT(X) ports, 3 100BaseFX multi-mode ports with ST connectors, single power input 110/220 VAC/VDC, -40 to 75°C operating temperatureOut of stock Warranty: 1 839,00 €2 261,97 €Login to check your price EDS-4009-3MST-HV-TManaged Ethernet switch with 6 10/100BaseT(X) ports, 3 100BaseFX multi-mode ports with ST connectors, single power input 110/220 VAC/VDC, -40 to 75°C operating temperatureAvailability: Out of stockNet price:1 839,00 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddEDS-4009-3SSC-LVManaged Ethernet switch with 6 10/100BaseT(X) ports, 3 100BaseFX single-mode ports with SC connectors, dual power inputs 12/24/48 VDC, -10 to 60°C operating temperatureOut of stock Warranty: 1 952,00 €2 400,96 €Login to check your price EDS-4009-3SSC-LVManaged Ethernet switch with 6 10/100BaseT(X) ports, 3 100BaseFX single-mode ports with SC connectors, dual power inputs 12/24/48 VDC, -10 to 60°C operating temperatureAvailability: Out of stockNet price:1 952,00 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddEDS-4009-3SSC-LV-TManaged Ethernet switch with 6 10/100BaseT(X) ports, 3 100BaseFX single-mode ports with SC connectors, dual power inputs 12/24/48 VDC, -40 to 75°C operating temperatureOut of stock Warranty: 2 079,00 €2 557,17 €Login to check your price EDS-4009-3SSC-LV-TManaged Ethernet switch with 6 10/100BaseT(X) ports, 3 100BaseFX single-mode ports with SC connectors, dual power inputs 12/24/48 VDC, -40 to 75°C operating temperatureAvailability: Out of stockNet price:2 079,00 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddEDS-4009-3SSC-HVManaged Ethernet switch with 6 10/100BaseT(X) ports, 3 100BaseFX single-mode ports with SC connectors, single power input 110/220 VAC/VDC, -10 to 60°C operating temperatureOut of stock Warranty: 2 057,00 €2 530,11 €Login to check your price EDS-4009-3SSC-HVManaged Ethernet switch with 6 10/100BaseT(X) ports, 3 100BaseFX single-mode ports with SC connectors, single power input 110/220 VAC/VDC, -10 to 60°C operating temperatureAvailability: Out of stockNet price:2 057,00 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddEDS-4009-3SSC-HV-TManaged Ethernet switch with 6 10/100BaseT(X) ports, 3 100BaseFX single-mode ports with SC connectors, single power input 110/220 VAC/VDC, -40 to 75°C operating temperatureOut of stock Warranty: 2 183,00 €2 685,09 €Login to check your price EDS-4009-3SSC-HV-TManaged Ethernet switch with 6 10/100BaseT(X) ports, 3 100BaseFX single-mode ports with SC connectors, single power input 110/220 VAC/VDC, -40 to 75°C operating temperatureAvailability: Out of stockNet price:2 183,00 €
Description

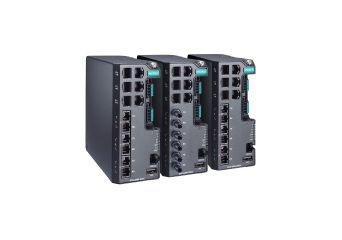

The EDS-4009 Series is a range of 9-port managed Fast Ethernet switches with the option for three 100M ST/SC fiber-optic ports.
Redundant Ethernet technologies such as Turbo Ring, Turbo Chain, and RSTP/STP increase the reliability of your system and improve the availability of your network backbone.
The EDS-4009 Series is designed specifically for demanding applications such as video and process monitoring, ITS, and DCS systems, all of which can benefit from a scalable backbone.
The EDS-4009 Series is compliant with the IEC 62443-4-2 and IEC 62443-4-1 Industrial Cybersecurity certifications, which cover both product security and secure development life-cycle requirements, helping our customers meet the compliance requirements of secure industrial network design.
Technical Specification
- Ethernet Interface
| 10/100BaseT(X) Ports (RJ45 connector) | 6 Auto negotiation speed Full/Half duplex mode Auto MDI/MDI-X connection |
| 100BaseFX Ports (multi-mode SC connector) | EDS-4009-3MSC-LV/-HV/-T models: 3 |
| 100BaseFX Ports (multi-mode ST connector) | EDS-4009-3MST-LV/-HV/-T models: 3 |
| 100BaseFX Ports (single-mode SC connector) | EDS-4009-3SSC-LV/-HV/-T models: 3 |
| Standards | IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X) and 100BaseFX IEEE 802.3x for flow control IEEE 802.3ad for Port Trunk with LACP IEEE 802.1Q for VLAN Tagging IEEE 802.1D-2004 for Spanning Tree Protocol IEEE 802.1w for Rapid Spanning Tree Protocol IEEE 802.1p for Class of Service IEEE 802.1X for authentication |
- Ethernet Software Features
| Filter | GMRP, GVRP, GARP, 802.1Q VLAN, IGMP Snooping v1/v2/v3, IGMP Querier |
| Management | IPv4/IPv6, Flow control, Back Pressure Flow Control, DHCP Server/Client, ARP, RARP, LLDP, Fiber check, Port Mirroring (SPAN, RSPAN), Linkup Delay, SMTP, SNMP Trap, SNMP Inform, SNMPv1/v2c/v3, RMON, TFTP, SFTP, HTTP, HTTPS, Telnet, Syslog, Private MIB |
| MIB | P-BRIDGE MIB, Q-BRIDGE MIB, IEEE8021-SPANNING-TREE-MIB, IEEE8021-PAE-MIB, IEEE8023-LAG-MIB, LLDP-EXT-DOT1-MIB, LLDP-EXT-DOT3-MIB, SNMPv2-MIB, RMON MIB Groups 1, 2, 3, 9 |
| Redundancy Protocols | STP, RSTP, Turbo Ring v2, Turbo Chain, Ring Coupling, Dual-Homing, Link Aggregation, MSTP, MRP |
| Industrial Protocols | EtherNet/IP, Modbus TCP, PROFINET IO Device |
| Security | Broadcast storm protection, Rate Limit, Trust access control, Static Port Lock, MAC Sticky, HTTPS/SSL, SSH, RADIUS, TACACS+, Login and Password Policy, ACL, DHCP Snooping |
| Time Management | SNTP, NTP Server/Client, NTP Authentication, IEEE 1588v2 PTP (hardware-based) Supported power profiles: IEEE 1588 Default 2008, IEC 61850-9-3-2016, IEEE C37.238-2017 |
| Protocols | IPv4/IPv6, TCP/IP, UDP, ICMP, ARP, RARP, TFTP, DNS, NTP Client, DHCP Server, DHCP Client, 802.1X, QoS, HTTPS, HTTP, Telnet, SMTP, SNMPv1/v2c/v3, RMON, Syslog |
- Switch Properties
| MAC Table Size | 16 K |
| Jumbo Frame Size | 9.216 KB |
| Max. No. of VLANs | 256 |
| VLAN ID Range | VID 1 to 4094 |
| IGMP Groups | 512 |
| Priority Queues | 4 |
| Packet Buffer Size | 1 Mbits |
- LED Interface
| LED Indicators | PWR1, PWR2, STATE, FAULT, MSTR/HEAD, CPLR/TAIL, SYNC |
- Serial Interface
| Console Port | RS-232 (TxD, RxD, GND), 8-pin RJ45 (115200, n, 8, 1) |
- USB Interface
| USB Connector | USB Type A (Reserved) |
- Input/Output Interface
| Alarm Contact Channels | 1, Relay output with current carrying capacity of 1 A @ 24 VDC |
| Digital Input Channels | 1 +13 to +30 V for state 1 -30 to +3 V for state 0 Max. input current: 8 mA |
| Buttons | Reset button |
- DIP Switch Configuration
| DIP Switches | Turbo Ring, Master, Coupler, Reserve |
- Power Parameters
| Connection | 2 removable 4-contact terminal block(s) |
| Pre-installed Power Module | -LV/-LV-T models: PWR-100–LV -HV/-HV-T models: PWR-105-HV-I |
| Note | The EDS-4009 Series supports modular power supplies. The model names and power parameters are determined by the installed power module. For example: EDS-4009-T + PWR-100–LV = EDS-4009-LV-T EDS-4009-T + PWR-105-HV-I = EDS-4009-HV-T If you install a different power module, refer to the specifications of the corresponding model. For example, if you replace the power module of the EDS-4009–LV-T with the PWR-105–HV-I, refer to the specifications of the EDS-4009–HV-T. |
| Input Voltage | -LV/-LV-T models: 12/24/48 VDC, Redundant dual inputs -HV/-HV-T models: 110/220 VDC/VAC, Single input |
| Operating Voltage | -LV/-LV-T models: 9.6 to 60 VDC -HV/-HV-T models: 88 to 300 VDC, 85 to 264 VAC |
| Input Current | -LV/-LV-T models: 12-48 VDC, 1.50-0.40 A or 24 VDC, 0.70 A -HV/-HV-T models: 110-220 VAC, 50-60 Hz, 0.30-0.20 A or 110-220 VDC, 0.30-0.20 A |
| Power Consumption (Max.) | EDS-4009-3MSC-LV(-T) models: 9.51 W EDS-4009-3MSC-HV(-T) models: 12.14 W EDS-4009-3MST-LV(-T) models: 9.51 W EDS-4009-3MST-HV(-T) models: 12.17 W EDS-4009-3SSC-LV(-T) models: 9.51 W EDS-4009-3SSC-HV(-T) models: 12.34 W |
| Overload Current Protection | Supported |
| Reverse Polarity Protection | Supported |
- Physical Characteristics
| P Rating | IP40 |
| Dimensions | EDS-4009-3MSC(-T)/EDS-4009-3SSC(-T) models: 55 x 140 x 120 mm (2.17 x 5.51 x 4.72 in) EDS-4009-3MST(-T) models: 55 x 140 x 132 mm (2.17 x 5.51 x 5.20 in) |
| Weight | EDS-4009-3MSC(-T) models: 821.5 g (1.81 lb) EDS-4009-3MST(-T) models: 920 g (2.03 lb) EDS-4009-3SSC(-T) models: 932 g (2.05 lb) |
| Installation | DIN-rail mounting, Wall mounting (with optional kit) |
| Housing | Metal |
- Environmental Limits
| Operating Temperature | Standard Models: -10 to 60°C (14 to 140°F) Wide Temp. Models: -40 to 75°C (-40 to 167°F) |
| Storage Temperature (package included) | -40 to 85°C (-40 to 185°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
- Standards and Certifications
| Industrial Cybersecurity | IEC 62443-4-1 IEC 62443-4-2 |
| Safety | UL 61010-2-201, EN 62368-1 (LVD) |
| EMC | EN 55032/35, EN 61000-6-2/-6-4 |
| EMI | CISPR 32, FCC Part 15B Class A |
| EMS | IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV IEC 61000-4-5 Surge: Power: 4 kV; Signal: 4 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8 PFMF |
| Vibration | IEC 60068-2-6 |
| Shock | IEC 60068-2-27 |
| Freefall | IEC 60068-2-32 |
| Railway | EN 50121-4 |
| Traffic Control | NEMA TS2 |
| Power Substation | IEC 61850-3 IEEE 1613 Class 1 |
| Hazardous Locations | -LV/-LV-T models: ATEX IECEx Class I Division 2 |
| Maritime |
-LV/-LV-T, PoE/PoE-T models: DNV, ABS, NK, LR |
- MTBF
| Time | EDS-4009-3MSC-LV/-LV-T models: 972,841 hrs EDS-4009-3MSC-HV/-HV-T models: 482,263 hrs EDS-4009-3MST-LV/-LV-T models: 972,841 hrs EDS-4009-3MST-HV/-HV-T models: 482,263 hrs EDS-4009-3SSC-LV/-LV-T models: 972,841 hrs EDS-4009-3SSC-HV/-HV-T models: 482,263 hrs hrs |
- Warranty
| Warranty Period | 5 years |
| Details | See www.moxa.com/warranty |
- Package Contents
| Device | 1 x EDS-4009 Series switch |
| Documentation | 1 x quick installation guide 1 x product notice, Simplified Chinese 1 x product certificates of quality inspection, Simplified Chinese 1 x warranty card |
