Производител: MOXA
- Transmits data up to 2 km over optical fiber
- Converts CAN signals to fiber and fiber to CAN signals
- Baudrate up to 1 Mbps
- Dual power inputs for redundancy
- DIP switch for 120 ohm terminal resistance
- DIP switch for fiber test mode
- LEDs for Fiber Tx, Fiber Rx, Power 1, Power 2
- Wide-temperature model available for -40 to 85°C environments
- Fully compatible with the ISO 11898 standard
Цена от 375,00 € без данък
High price? Log in and buy cheaper
In stock
Place the order by 12:00, the package will be shipped on the same day
Free shipping from €300
Promocja cenowa na model HDR-15-5
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddICF-1170I-M-STIndustrial CAN bus to Fiber Optic Converter, ST Multi-mode, 0 to 60? TemperatureIn stockWarranty: 375,00 €461,25 €Login to check your price ICF-1170I-M-STIndustrial CAN bus to Fiber Optic Converter, ST Multi-mode, 0 to 60? TemperatureAvailability:In stockNet price:375,00 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddICF-1170I-M-ST-TIndustrial CAN bus to Fiber Optic Converter, ST Multi-mode, -40 to 85 ? TemperatureIn stockWarranty: 433,00 €532,59 €Login to check your price ICF-1170I-M-ST-TIndustrial CAN bus to Fiber Optic Converter, ST Multi-mode, -40 to 85 ? TemperatureAvailability:In stockNet price:433,00 €
Accessories
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddDIN rail power supply 20W 12V 1.67AIn stockWarranty: 12,70 €15,62 €Login to check your price DIN rail power supply 20W 12V 1.67AAvailability:In stockNet price:12,70 €
Description

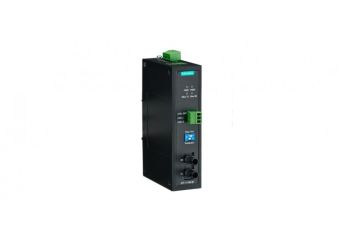

The ICF-1170I Series CAN-to-fiber converters are used to convert CAN signals from copper to optical fiber. The converters come with 2 kV optical isolation for the CAN bus system and dual power inputs with alarm contact relay to ensure that your CAN bus system will remain online.
Fiber Test Mode
Fiber Test Mode can be used to test the fiber cable between two ICF-1170I units, and it provides a simple way to determine if the fiber cable is transmitting data correctly. When in Fiber Test Mode, the fiber transceiver (Tx) will continuously send out a data signal and the Fiber Tx LED will light up. On the other side of the connection, when the ICF-1170I fiber transceiver (Rx) receives the data signal from the Tx side, the Fiber Rx LED will light up.
Technical Specification
- Serial Interface
| Optical Fiber | 100BaseFX ports (multi-mode ST connector) |
| Optical Fiber |  |
- CAN Interface
| Isolation | 2 kV (built-in) |
| No. of Ports | 1 |
| Signals | CAN_L, CAN_H, CAN Signal GND |
| Terminator | N/A, 120 ohms (by DIP) |
- Power Parameters
| Input Current | 221 mA @ 12 to 48 VDC |
| Power Consumption | 221 mA @ 12 to 48 VDC |
| Input Voltage | 12 to 48 VDC |
| No. of Power Inputs | 2 |
| Overload Current Protection | Supported |
| Power Connector | Terminal block (for DC models) |
- Physical Characteristics
| Housing | Metal |
| IP Rating | IP30 |
| Dimensions | 30.3 x 70 x 115 mm (1.19 x 2.76 x 4.53 in) |
| Weight | 178 g (0.39 lb) |
| Installation | DIN-rail mounting |
- Environmental Limits
| Operating Temperature | ICF-1170I-M-ST: 0 to 60°C (32 to 140°F) ICF-1170I-M-ST-T: -40 to 85°C (-40 to 185°F) |
| Storage Temperature (package included) | -40 to 85°C (-40 to 185°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
- Standards and Certifications
| EMC | EN 55032/24 |
| EMI | CISPR 32, FCC Part 15B Class A |
| EMS | IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m IEC 61000-4-4 EFT: Power: 4 kV; Signal: 2 kV IEC 61000-4-5 Surge: Power: 1 kV IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m IEC 61000-4-8 PFMF |
| Safety | EN 62368-1 |
| Environmental Testing | IEC 60068-2-1 IEC 60068-2-2 IEC 60068-2-3 |
| Vibration | IEC 60068-2-6 |
- MTBF
| Time | 792,085 hrs |
| Standards | Telcordia (Bellcore), GB |
