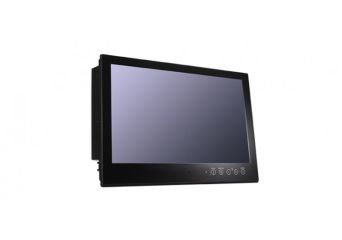

MD-224

24-inch marine display

Производител: MOXA
Производител: MOXA
  • 24-inch display, 16:9 aspect ratio
  • 300-nit or sunlight-readable 1000-nit LED backlight
  • Color calibrated for ECDIS compliance (available by CTOS)
  • Full range dimming, 0 to 100%
  • SavvyTouch display controls
  • Built-in RS-232/422/485 interfaces
  • Dual power supplies (AC & DC)
  • IP54-rated front panel (IP66 available by request)
Product out of stock

Free shipping from €300

Вижте 2 модела

Promocja cenowa na model HDR-15-5

Models

  • ModelAvailabilityWarrantyWishlist
    Your Price
    Your Price
    MD-224X
    24-inch display, 16:9 aspect ratio, full HD (1920x1080), LED backlighting, RS-232 & RS-422/485 serial ports, dual-power supply (AC/DC)
    Out of stock Warranty:
    MD-224X
    24-inch display, 16:9 aspect ratio, full HD (1920x1080), LED backlighting, RS-232 & RS-422/485 serial ports, dual-power supply (AC/DC)
    Availability: Out of stock
    -
  • ModelAvailabilityWarrantyWishlist
    Your Price
    Your Price
    MD-224Z
    24-inch display, 16:9 aspect ratio, full HD (1920x1080), projected-capacitive touch panel, LED backlighting, RS-232 & RS-422/485 serial ports, dual-power supply (AC/DC)
    Out of stock Warranty:
    MD-224Z
    24-inch display, 16:9 aspect ratio, full HD (1920x1080), projected-capacitive touch panel, LED backlighting, RS-232 & RS-422/485 serial ports, dual-power supply (AC/DC)
    Availability: Out of stock
    -

Description

The MD-224 Series of marine displays come with full range dimming, wide viewing angles, and optional optical bonding. These displays are built with a small-profile modular design that allows easier integration into industrial marine systems, thereby reducing deployment costs and overall time-to-market.

The innovative and user-friendly SavvyTouch display controls offer several unique features not found in most marine display consoles: a proximity sensor for convenient adjustments in dark conditions, an info button for immediate updates of power status, and a quick-switch to adjust between day, dusk, and night-time ECDIS modes (for color-calibrated ECDIS models only).

The MD-224 Series displays are compliant with IEC 60945, DNV, ABS, and IACS E10, making them suitable for maritime applications. Their IP54-rated (IP66-rated models available on request) enclosure provides additional protection against dust and moisture above and beyond the limits established by these international standards bodies.

ECDIS-approved models are also available, offering an excellent HMI solution for ECDIS charting and navigation stations.

Technical Specification

  • Display
Aspect Ratio 16:9
Contrast Ratio 5,000:1
Max. No. of Colors 16.7M (8-bit/color)
Panel Size 24-inch viewable image
Panel Type MVA
Pixels 1920 x 1080
Response Time 25 ms (gray to gray)
Viewing Angles 178°/178°
Light Intensity (Brightness) MD-224X/224Z: 300 cd/m2
MD-224Z-HB: 1000 cd/m2
  • Computer Interface
Serial Ports RS-232 ports x 1 (DB9 male)
RS-232/422/485 ports x 1, software-selectable (terminal block)
Video Input DVI-D x 1, 29-pin DVI-D connectors (female)
VGA x 1, 15-pin D-sub connector (female)
  • Touch Function
Touch Type MD-224Z/224Z-HB: Capacitive Touch (PCAP)
MD-224X: None
Touch Support Points MD-224Z/224Z-HB: 4 points
  • Serial Interface
Baudrate 50 bps to 115.2 kbps
Data Bits 5, 6, 7, 8
Flow Control RTS/CTS, XON/XOFF, ADDC® (automatic data direction control) for RS-485, RTS Toggle (RS-232 only)
Parity None, Even, Odd, Space, Mark
Stop Bits 1, 1.5, 2
  • Serial Signals
RS-232 TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422 Tx+, Tx-, Rx+, Rx-, GND
RS-485-2w Data+, Data-, GND
RS-485-4w Tx+, Tx-, Rx+, Rx-, GND
  • Power Parameters
Input Voltage 100 to 240 VAC, 24 VDC (18 to 30 V)
Power Consumption 40 W (max.)
  • Physical Characteristics
Housing Metal
IP Rating MD-224X: IP54, front
MD-224X: IP22, rear
MD-224Z: IP54, front
MD-224Z: IP22, rear
MD-224Z-HB: IP66, front
MD-224Z-HB: IP22, rear
Dimensions 595 x 393 x 75 mm (23.43 x 15.47 x 2.95 in)
Weight 9,570 g (21.10 lb)
Installation Desktop, Panel mounting, VESA mounting
  • Environmental Limits
Operating Temperature -15 to 55°C (5 to 131°F)
Storage Temperature (package included) -20 to 60°C (-4 to 140°F)
Ambient Relative Humidity 5 to 95% (non-condensing)
  • Standards and Certifications
EMC EN 55032/24
EMI CISPR 32, FCC Part 15B Class A
EMS IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV
IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV
IEC 61000-4-6 CS: 1kV
Maritime ABS, CCS, DNV-GL, IEC 60945
Safety UL 60950-1
