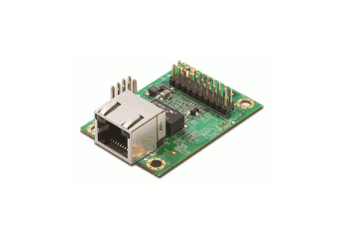

MiiNePort E3
10/100 Mbps embedded drop in module serial device servers with PoE pass-through support
Производител: MOXA
Производител: MOXA
- IEEE 802.3af compliant PoE passthrough
- Use Moxa’s high-quality and reliable second-generation MiiNe SoC
- Variety of operation modes fulfill specific application requirements
- Green design with extremely low power consumption
- MiiNePort NetEZ technology makes integration incredibly easy
- Highly compact embedded device module
Цена от 57,00 € без данък
High price? Log in and buy cheaper
Product out of stock
Безплатна доставка от €100
Promocja cenowa na model HDR-15-5
MiiNePort E3
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddMiiNePort E3Embedded device server for TTL devices, up to 230.4Kbps, with RJ45, 0 to 55°COut of stock Warranty: 57,00 €70,11 €Login to check your price MiiNePort E3Embedded device server for TTL devices, up to 230.4Kbps, with RJ45, 0 to 55°CAvailability: Out of stockNet price:57,00 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddMiiNePort E3-HEmbedded device server for TTL devices, up to 921.6Kbps, with RJ45, 0 to 55°COut of stock Warranty: 63,00 €77,49 €Login to check your price MiiNePort E3-HEmbedded device server for TTL devices, up to 921.6Kbps, with RJ45, 0 to 55°CAvailability: Out of stockNet price:63,00 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddMiiNePort E3-H-STStarter kit for the MiiNePort E3-H series, module includedOut of stock Warranty: 165,00 €202,95 €Login to check your price MiiNePort E3-H-STStarter kit for the MiiNePort E3-H series, module includedAvailability: Out of stockNet price:165,00 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddMiiNePort E3-STStarter kit for MiiNePort E3 Series, with moduleOut of stock Warranty: 162,00 €199,26 €Login to check your price MiiNePort E3-STStarter kit for MiiNePort E3 Series, with moduleAvailability: Out of stockNet price:162,00 €
Description
Moxa’s MiiNePort E3 Series embedded device servers are designed for manufacturers who want to add sophisticated network connectivity to their serial devices with minimal integration effort. The MiiNePort E3 is empowered by the MiiNe, Moxa’s second-generation SoC, which supports 10/100 Mbps Ethernet, up to 921.6 kbps serial baudrate, a versatile selection of ready-to-use operation modes, and requires only a small amount of power. By using Moxa’s innovative NetEZ technology, the MiiNePort E3 can be used to convert any device with a standard serial interface to an Ethernet-enabled device in no time. In addition, the MiiNePort E3 is a compact embedded device server with an RJ45 connector, making it easy to fit into virtually any existing serial device.
Moxa’s Second-generation SoC
The MiiNe was created to provide manufacturers with a competitive embedded serial-to-Ethernet solution. The MiiNePort E3, which uses the MiiNe for its SoC, is a compact embedded device server that has the lowest power consumption among similar products. The MiiNe has the following features:
- Designed for serial-to-Ethernet applications
- Uses an Arm core
- Uses Moxa’s own advanced UART technology
- 2 MB Flash and 4 MB SDRAM memory built in
Technical Specification
- EMBADDED SYSTEM
| CPU | 32-bit Arm Core |
- MEMORY
| Flash | 2 MB |
| SDRAM | 4 MB |
- INPUT/OUTPUT INTERFACE
| Configurable DIO Channels (by software) | 4 |
- ETHERNET INTERFACE
| 10/100BaseT(X) Ports, Auto MDI/MDI-X | 8-pin RJ45 |
| Magnetic Isolation Protection | 1.5 kV (built-in) |
| PoE Pass-through | IEEE 802.3af for PoE |
- ETHERNET SOFTWARE FEATURES
| Configuration Options | Web Console (HTTP), Windows Utility |
| Management | ARP, BOOTP, Device Search Utility (DSU), DHCP Client, IPv4, SMTP, SNMPv1, TCP/IP, Telnet, TFTP, UDP, ICMP |
| Windows Real COM Drivers | Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded |
| Linux Real TTY Drivers | Kernel versions: 2.4.x, 2.6.x, 3.x, 4.x, and 5.x |
| Fixed TTY Drivers | SCO UNIX, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X |
| Android API | Android 3.1.x and later |
- SERIAL INTERFACE
| No. of Ports | 1 |
| Serial Standards | TTL |
| Operation Modes | Real COM mode, TCP Server mode, TCP Client mode, UDP mode, RFC2217 mode, Ethernet Modem mode |
| Baudrate | MiiNePort E3 Series: 50 bps to 230.4 kbps MiiNePort E3-H Series: 50 bps to 921.6 kbps |
| Data Bits | 5, 6, 7, 8 |
| Stop Bits | 1, 1.5, 2 |
| Parity | None, Even, Odd, Space, Mark |
| Flow Control | None, RTS/CTS, DTR/DSR, XON/XOFF |
- SERIAL SIGNALS
| TTL | TxD, RxD, RTS, CTS, DTR, DSR, DCD, RST (reset circuit), GND |
- NETEZ TECHNOLOGY
| NetEZ Functions | EZPower, EZPage, SCM (Serial Command Mode), AutoCFG) |
- POWER PARAMETERS
| Input Current | 157 mA @ 3.3 VDC |
| Input Voltage | 3.3 to 5 VDC |
- PHYSICAL CHARACTERISTICS
| Dimensions | MiiNePort E3/E3-H Series: 35 x 52.5 x 18 mm (1.38 x 2.07 x 0.71 in) |
| Weight | MiiNePort E3/E3-H Series: 12 g (0.03 lb) MiiNePort E3-ST/E3-H-ST: 89 g (0.20 lb) |
- ENVIRONMENTAL LIMITS
| Operating Temperature | Standard models: 0 to 55˚C (32 to 131˚F) Wide Temp. models: -40 to 85˚C (-40 to 185˚F) |
| Weight | -40 to 60°C (-40 to 140°F) |
| Form Factor Type | 5 to 95% (non-condensing) |
- STANDARD AND CERTIFICATIONS
| EMC | EN 55032/24 |
| EMI | CISPR 32, FCC Part 15B Class B |
| EMS | IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV IEC 61000-4-5 Surge: Power: 2 kV IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m IEC 61000-4-8 PFMF IEC 61000-4-11 DIPs |
| Environmental Testing | IEC 60068-2-1 IEC 60068-2-3 |
| Shock | IEC 60068-2-27 |
| Vibration | IEC 60068-2-6 |
| Freefall | IEC 60068-2-6 |
- DECLARATION
| Green Product | RoHS, CRoHS, WEEE |
- MTBF
| Time | 5,696,350 hrs |
| Standards | Telcordia SR332 |
