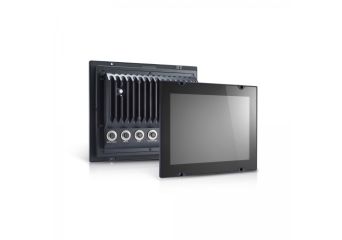

main product photo

MPC-2101

10-inch industrial fanless panel computers

Производител: MOXA
Производител: MOXA
  • 10-inch panel computer
  • Intel Atom® processor E3845 1.91 GHz
  • 1000-nit sunlight-readable LCD
  • -40 to 70°C wide-temperature design, no fan or heater
  • EN 50155:2017 Compliant
Product out of stock

Free shipping from €300

Вижте 6 модела

Promocja cenowa na model HDR-15-5

10-calowe przemysłowe panelowe komputery bez wentylatorów

MPC-2101

Models

  • ModelAvailabilityWarrantyWishlist
    Your Price
    		Your Price
    MPC-2101-E4-CT-T
    10-inch panel computer with Intel Atom E3845 1.91 GHz, 4 GB RAM, 1000-nit LCD with multi-touch, 24 to 110 VDC, IP66, EN 50155, -40 to 70°C operating temperature
    		 Out of stock Warranty:
    MPC-2101-E4-CT-T
    10-inch panel computer with Intel Atom E3845 1.91 GHz, 4 GB RAM, 1000-nit LCD with multi-touch, 24 to 110 VDC, IP66, EN 50155, -40 to 70°C operating temperature
    Availability: Out of stock
    -
  • ModelAvailabilityWarrantyWishlist
    Your Price
    		Your Price
    MPC-2101-E4-CT-T-LX
    10-inch panel computer with Intel Atom E3845 1.91 GHz, 4 GB RAM, 16 GB CFast, 1000-nit LCD with multi-touch, Linux preinstalled, 24 to 110 VDC, IP66, EN50155, -40 to 70°C operating temperature
    		 Out of stock Warranty:
    MPC-2101-E4-CT-T-LX
    10-inch panel computer with Intel Atom E3845 1.91 GHz, 4 GB RAM, 16 GB CFast, 1000-nit LCD with multi-touch, Linux preinstalled, 24 to 110 VDC, IP66, EN50155, -40 to 70°C operating temperature
    Availability: Out of stock
    -
  • ModelAvailabilityWarrantyWishlist
    Your Price
    		Your Price
    MPC-2101-E4-CT-T-W7E
    10-inch panel computer with Intel Atom E3845 1.91 GHz, 4 GB RAM, 32 GB CFast, 1000-nit LCD with multi-touch, Windows Embedded Standard 7 preinstalled, 24 to 110 VDC, IP66, EN 50155, -40 to 70°C operating temperature
    		 Out of stock Warranty:
    MPC-2101-E4-CT-T-W7E
    10-inch panel computer with Intel Atom E3845 1.91 GHz, 4 GB RAM, 32 GB CFast, 1000-nit LCD with multi-touch, Windows Embedded Standard 7 preinstalled, 24 to 110 VDC, IP66, EN 50155, -40 to 70°C operating temperature
    Availability: Out of stock
    -
  • ModelAvailabilityWarrantyWishlist
    Your Price
    		Your Price
    MPC-2101-E4-LB-CT-T
    10-inch panel computer with Intel Atom E3845 1.91 GHz, 4 GB RAM, 500-nit LCD with multi-touch, 24 to 110 VDC, IP66, EN 50155, -40 to 70°C operating temperature
    		 Out of stock Warranty:
    MPC-2101-E4-LB-CT-T
    10-inch panel computer with Intel Atom E3845 1.91 GHz, 4 GB RAM, 500-nit LCD with multi-touch, 24 to 110 VDC, IP66, EN 50155, -40 to 70°C operating temperature
    Availability: Out of stock
    -
  • ModelAvailabilityWarrantyWishlist
    Your Price
    		Your Price
    MPC-2101-E4-LB-CT-T-LX
    10-inch panel computer with Intel Atom E3845 1.91 GHz, 4 GB RAM, 16 GB CFast, 500-nit LCD with multi-touch, Linux preinstalled, 24 to 110 VDC, IP66, EN 50155, -40 to 70°C operating temperature
    		 Out of stock Warranty:
    MPC-2101-E4-LB-CT-T-LX
    10-inch panel computer with Intel Atom E3845 1.91 GHz, 4 GB RAM, 16 GB CFast, 500-nit LCD with multi-touch, Linux preinstalled, 24 to 110 VDC, IP66, EN 50155, -40 to 70°C operating temperature
    Availability: Out of stock
    -
  • ModelAvailabilityWarrantyWishlist
    Your Price
    		Your Price
    MPC-2101-E4-LB-CT-T-W7E
    10-inch panel computer with Intel Atom E3845 1.91 GHz, 4 GB RAM, 32 GB CFast, 500-nit LCD with multi-touch, Windows Embedded Standard 7 preinstalled, 24 to 110 VDC, IP66, EN 50155, -40 to 70°C operating temperature
    		 Out of stock Warranty:
    MPC-2101-E4-LB-CT-T-W7E
    10-inch panel computer with Intel Atom E3845 1.91 GHz, 4 GB RAM, 32 GB CFast, 500-nit LCD with multi-touch, Windows Embedded Standard 7 preinstalled, 24 to 110 VDC, IP66, EN 50155, -40 to 70°C operating temperature
    Availability: Out of stock
    -

Description

The MPC-2101 10-inch panel computers with E3800 Series Intel Atom® processor deliver a reliable, durable, and versatile platform for use in industrial environments. All interfaces come with IP66-rated M12 connectors to provide anti-vibration and waterproof connections. With two software-selectable RS-232/422/485 serial ports and two Ethernet LAN ports, the MPC-2101 panel computers support a wide variety of serial interfaces as well as high-speed IT communications, all with native network redundancy.

The MPC-2101 Series panel computers are designed with a wide, -40 to 70°C temperature range, and come with a fanless, streamlined enclosure designed for highly efficient heat dissipation, making this one of the most reliable industrial platforms available for vibration prone, harsh, hot, outdoor environments. The MPC-2101 also features a 1000-nit LCD panel offering a sunlight readable, projected-capacitive, multi-touch screen, providing an excellent user experience.

Technical Specification

  • Computer
CPU Intel Atom® Processor E3845 (2M Cache, 1.91 GHz)
Graphics Controller Intel® HD Graphics
System Memory Pre-installed 4 (8GB Max.) GB DDR3L
System Memory Slot SODIMM DDR3/DDR3L slot x 1
Pre-installed OS MPC-2101-E4-LB-CT-T-W7E/MPC-2101-E4-CT-T-W7E: Windows Embedded Standard 7 (WS7P) 64-bit pre-installed
MPC-2101-E4-LB-CT-T-LX/MPC-2101-E4-CT-T-LX: Linux 9 pre-installed
Storage Slot CFast slot x 1
SD slots x 1, SD 3.0 (SDHC/SDXC) socket
Storage Pre-installed MPC-2101-E4-LB-CT-T-W7E/MPC-2101-E4-CT-T-W7E: 32 GB CFast Card
MPC-2101-E4-LB-CT-T-LX/MPC-2101-E4-CT-T-LX: 32 GB CFast Card
Expansion Slots Mini PCIe
Supported OS Windows 10 Pro 64-bit
Windows 10 Embedded IoT Ent 2019 LTSC 64-bit
Windows 10 Embedded IoT Ent 2016 LTSB
Windows 7 Pro for Embedded Systems
Windows Embedded Standard 7 (WS7P) 64-bit
Linux Debian 9
  • Computer Interface
Digital Output DOs x 2 (M12 A-code)
Digital Input DIs x 4 (M12 A-code)
Serial Ports RS-232/422/485 ports x 1 (M12 A-code 12P)
USB 2.0 USB 2.0 hosts x 1 (M12 A-code 5P)
Ethernet Ports Auto-sensing 10/100 Mbps ports (M12 D-coded 4P) x 2
  • LED Indicators
System Power x 1
  • Display
Panel Size 10.4-inch viewable image
Pixel Pitch (RGB) 0.240 (H) x 0.240 (V) mm
Contrast Ratio 1000:1
Active Display Area 210.4 (H) x 157.8 (V) mm
Aspect Ratio 4:3
Viewing Angles 176°/176°
Max. No. of Colors 16.2M (8-bit/color)
Response Time 5 ms (gray to gray)
Pixels 1024 x 768
Light Intensity (Brightness) 500/1000 cd/m2
  • Touch Function
Touch Support Points 4 points
Touch Type Capacitive Touch (PCAP)
Glove Support Yes
  • Serial Interface
Baudrate 50 bps to 115.2 kbps
Data Bits 5, 6, 7, 8
Flow Control RTS/CTS, XON/XOFF
Parity None, Even, Odd, Space, Mark
Stop Bits 1, 1.5, 2
  • Serial Signals
RS-232 TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422 Tx+, Tx-, Rx+, Rx-, GND
RS-485-2w Data+, Data-, GND
RS-485-4w Tx+, Tx-, Rx+, Rx-, GND
  • Power Parameters
Input Voltage 24 to 110 VDC
  • Physical Characteristics
Dimensions 256.9 x 214.4 x 58.9 mm (10.11 x 8.44 x 2.32 in)
Housing Metal
IP Rating IP66
Weight 2,080 g (4.59 lb)
  • Environmental Limits
Ambient Relative Humidity 5 to 95% (non-condensing)
Operating Temperature -40 to 70°C (-40 to 158°F)
Storage Temperature (package included) -40 to 70°C (-40 to 158°F)
  • Standards and Certifications
EMI CISPR 32, FCC Part 15B Class A
EMS IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m
IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV
IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV
IEC 61000-4-6 CS: 10 V
IEC 61000-4-8 PFMF
Mechanical Protection Rating IEC 60529, IP code
Safety IEC 62368-1, IEC 60950-1, UL 62368-1
Shock EN 50155 standard
EMC EN55032/35
Vibration EN 50155 standard
  • Declaration
Green Product RoHS, CRoHS, WEEE
