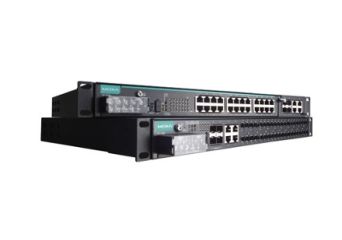

PT-7528

The PT-7528 Series is designed for power substation automation applications that operate in extremely harsh environments. The PT-7528 Series supports Moxa’s Noise Guard technology, is compliant with IEC 61850-3, and its EMC immunity exceeds IEEE 1613 Class 2 standards to ensure zero packet loss while transmitting at wire speed. The PT-7528 Series also features critical packet prioritization (GOOSE and SMVs), a built-in MMS server, and a configuration wizard designed specifically for substation automation.

With Gigabit Ethernet, redundant ring, and 110/220 VDC/VAC isolated redundant power supplies, the PT-7528 Series further increases the reliability of your communications and saves cabling/wiring costs. The wide range of PT-7528 models available support multiple types of port configuration, with up to 28 copper or 24 fiber ports, and up to 4 Gigabit ports. Taken together, these features allow greater flexibility, making the PT-7528 Series suitable for a variety of industrial applications.

Additional Features and Benefits

• Switch data modeling based on the IEC 61850-90-4 standard
• Fiber Check™ provides monitoring and diagnosis functions on MST/MSC/SSC/SFP fiber ports
• VLAN Unaware: Supports priority-tagged frames to be received by specific IEDs
• EtherNet/IP and Modbus TCP industrial Ethernet protocols supported
• Configurable by web browser, Telnet/Serial console, CLI, Windows utility, and ABC-02 automatic backup configurator
• Turbo Ring and Turbo Chain (recovery time < 20 ms @ 250 switches),  RSTP/STP, and MSTP for network redundancy
• DHCP Option 82 for IP address assignment with different policies
• IGMP snooping and GMRP for filtering multicast traffic from industrial Ethernet protocols
• IEEE 802.3ad, LACP for optimum bandwidth utilization
• Bandwidth management to prevent unpredictable network status
• Multiport mirroring for online debugging
• Automatic warning by exception through email and relay output
• RMON for proactive and efficient network monitoring
• Automatic recovery of connected device’s IP addresses
• Line-swap fast recovery
• Noise Guard™ provides a high level of EMC immunity for critical applications, exceeding IEEE 1613 Class 2

Cybersecurity Features

• User passwords with multiple levels of security protect against unauthorized configuration
• SSH/HTTPS is used to encrypt passwords and data
• Lock switch ports with 802.1X port-based network access control so that only authorized clients can access the port
• RADIUS/TACACS+ allows you to manage passwords from a central location
• 802.1Q VLAN allows you to logically partition traffic transmitted between selected switch ports
• Secure switch ports so that only specific devices and/or MAC addresses can access the ports
• Disable one or more ports to block network traffic
• SNMPv3 provides encrypted authentication and access security
