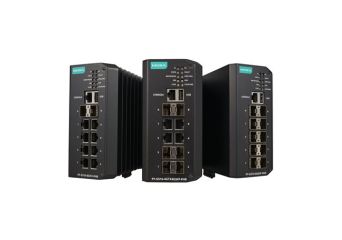

PT-G510

IEC 61850-3 10-портов Layer 2 full Gigabit PRP/HSR управляем Ethernet суич

Производител: MOXA

IEC 61850-3 Edition 2 Class 2 съвместим
IEC 62439-3 Clause 4 (PRP) и Clause 5 (HSR) съвместим
Поддържа IEEE 1588 hardware time stamp
Поддържа IEEE C37.238 и IEC 61850-9-3 power profiles
GOOSE Check за лесно отстраняване на неизправности
Вграден MMS сървър, базиран на IEC 61850-90-4 switch data modeling for power SCADA
-40 до 75°C работен температурен обхват

In stock

Поръчайте до 12:00 и ще бъде изпратен в рамките на деня

Безплатна доставка от €100

Вижте 12 модела

Promocja cenowa na model HDR-15-5

Продукт, предназначен само за професионална употреба

Models
Description
Technical Specification
Download
Recommended Products

PT-G510

Models

Model	Availability	Warranty	Wishlist	Your Price	Your Price	Items Quantity Add
PT-G510-8GSFP-PHR-HV IEC 61850-3 and IEC 62439-3 full Gigabit Managed Ethernet switch with 10 100/1000Base SFP ports, isolated dual power supply (88 to 300 VDC or 85 to 264 VAC), -40 to 75°C operating temperature	In stock	Warranty:

PT-G510-8GSFP-PHR-HV

IEC 61850-3 and IEC 62439-3 full Gigabit Managed Ethernet switch with 10 100/1000Base SFP ports, isolated dual power supply (88 to 300 VDC or 85 to 264 VAC), -40 to 75°C operating temperature

Availability:

In stock

Model	Availability	Warranty	Wishlist	Your Price	Your Price	Items Quantity Add
PT-G510-8GSFP-PHR-WV IEC 61850-3 and IEC 62439-3 full Gigabit Managed Ethernet switch with 10 100/1000Base SFP ports, isolated dual power supply (24/48 VDC), -40 to 75°C operating temperature	In stock	Warranty:

PT-G510-8GSFP-PHR-WV

IEC 61850-3 and IEC 62439-3 full Gigabit Managed Ethernet switch with 10 100/1000Base SFP ports, isolated dual power supply (24/48 VDC), -40 to 75°C operating temperature

Availability:

In stock

Model	Availability	Warranty	Wishlist	Your Price	Your Price	Items Quantity Add
PT-G510-8GTX-PHR-HV IEC 61850-3 and IEC 62439-3 full Gigabit Managed Ethernet switch with 8 100/1000BaseT(X) ports and 2 100/1000Base SFP ports, isolated dual power supply (88 to 300 VDC or 85 to 264 VAC), -40 to 75°C operating temperature	Out of stock	Warranty:

PT-G510-8GTX-PHR-HV

IEC 61850-3 and IEC 62439-3 full Gigabit Managed Ethernet switch with 8 100/1000BaseT(X) ports and 2 100/1000Base SFP ports, isolated dual power supply (88 to 300 VDC or 85 to 264 VAC), -40 to 75°C operating temperature

Availability: Out of stock

Model	Availability	Warranty	Wishlist	Your Price	Your Price	Items Quantity Add
PT-G510-8GTX-PHR-WV IEC 61850-3 and IEC 62439-3 full Gigabit Managed Ethernet switch with 8 100/1000BaseT(X) ports and 2 100/1000Base SFP ports, isolated dual power supply (24/48 VDC), -40 to 75°C operating temperature	Out of stock	Warranty:

PT-G510-8GTX-PHR-WV

IEC 61850-3 and IEC 62439-3 full Gigabit Managed Ethernet switch with 8 100/1000BaseT(X) ports and 2 100/1000Base SFP ports, isolated dual power supply (24/48 VDC), -40 to 75°C operating temperature

Availability: Out of stock

Model	Availability	Warranty	Wishlist	Your Price	Your Price	Items Quantity Add
PT-G510-4GTX4GSFP-PHR-HV IEC 61850-3 and IEC 62439-3 full Gigabit Managed Ethernet switch with 4 100/1000BaseT(X) ports and 6 100/1000Base SFP ports, isolated dual power supply (88 to 300 VDC or 85 to 264 VAC), -40 to 75°C operating temperature	In stock	Warranty:

PT-G510-4GTX4GSFP-PHR-HV

IEC 61850-3 and IEC 62439-3 full Gigabit Managed Ethernet switch with 4 100/1000BaseT(X) ports and 6 100/1000Base SFP ports, isolated dual power supply (88 to 300 VDC or 85 to 264 VAC), -40 to 75°C operating temperature

Availability:

In stock

Model	Availability	Warranty	Wishlist	Your Price	Your Price	Items Quantity Add
PT-G510-4GTX4GSFP-PHR-WV IEC 61850-3 and IEC 62439-3 full Gigabit Managed Ethernet switch with 4 100/1000BaseT(X) ports and 6 100/1000Base SFP ports, isolated dual power supply (24/48 VDC), -40 to 75°C operating temperature	In stock	Warranty:

PT-G510-4GTX4GSFP-PHR-WV

IEC 61850-3 and IEC 62439-3 full Gigabit Managed Ethernet switch with 4 100/1000BaseT(X) ports and 6 100/1000Base SFP ports, isolated dual power supply (24/48 VDC), -40 to 75°C operating temperature

Availability:

In stock

Model	Availability	Warranty	Wishlist	Your Price	Your Price	Items Quantity Add
PT-G510-8GSFP-PHR-HV-CT IEC 61850-3 and IEC 62439-3 full Gigabit Managed Ethernet switch with 10 100/1000Base SFP ports, isolated dual power supply (88 to 300 VDC or 85 to 264 VAC), -40 to 75°C operating temperature, Conformal Coating	Out of stock	Warranty:

PT-G510-8GSFP-PHR-HV-CT

IEC 61850-3 and IEC 62439-3 full Gigabit Managed Ethernet switch with 10 100/1000Base SFP ports, isolated dual power supply (88 to 300 VDC or 85 to 264 VAC), -40 to 75°C operating temperature, Conformal Coating

Availability: Out of stock

Model	Availability	Warranty	Wishlist	Your Price	Your Price	Items Quantity Add
PT-G510-8GSFP-PHR-WV-CT IEC 61850-3 and IEC 62439-3 full Gigabit Managed Ethernet switch with 10 100/1000Base SFP ports, isolated dual power supply (24/48 VDC), -40 to 75°C operating temperature, Conformal Coating	Out of stock	Warranty:

PT-G510-8GSFP-PHR-WV-CT

IEC 61850-3 and IEC 62439-3 full Gigabit Managed Ethernet switch with 10 100/1000Base SFP ports, isolated dual power supply (24/48 VDC), -40 to 75°C operating temperature, Conformal Coating

Availability: Out of stock

Model	Availability	Warranty	Wishlist	Your Price	Your Price	Items Quantity Add
PT-G510-8GTX-PHR-HV-CT IEC 61850-3 and IEC 62439-3 full Gigabit Managed Ethernet switch with 8 100/1000BaseT(X) ports and 2 100/1000Base SFP ports, isolated dual power supply (88 to 300 VDC or 85 to 264 VAC), -40 to 75°C operating temperature, Conformal Coating	Out of stock	Warranty:

PT-G510-8GTX-PHR-HV-CT

Availability: Out of stock

Model	Availability	Warranty	Wishlist	Your Price	Your Price	Items Quantity Add
PT-G510-8GTX-PHR-WV-CT IEC 61850-3 and IEC 62439-3 full Gigabit Managed Ethernet switch with 8 100/1000BaseT(X) ports and 2 100/1000Base SFP ports, isolated dual power supply (24/48 VDC), -40 to 75°C operating temperature, Conformal Coating	Out of stock	Warranty:

PT-G510-8GTX-PHR-WV-CT

IEC 61850-3 and IEC 62439-3 full Gigabit Managed Ethernet switch with 8 100/1000BaseT(X) ports and 2 100/1000Base SFP ports, isolated dual power supply (24/48 VDC), -40 to 75°C operating temperature, Conformal Coating

Availability: Out of stock

Model	Availability	Warranty	Wishlist	Your Price	Your Price	Items Quantity Add
PT-G510-4GTX4GSFP-PHR-HV-CT IEC 61850-3 and IEC 62439-3 full Gigabit Managed Ethernet switch with 4 100/1000BaseT(X) ports and 6 100/1000Base SFP ports, isolated dual power supply (88 to 300 VDC or 85 to 264 VAC), -40 to 75°C operating temperature, Conformal Coating	Out of stock	Warranty:

PT-G510-4GTX4GSFP-PHR-HV-CT

Availability: Out of stock

Model	Availability	Warranty	Wishlist	Your Price	Your Price	Items Quantity Add
PT-G510-4GTX4GSFP-PHR-WV-CT IEC 61850-3 and IEC 62439-3 full Gigabit Managed Ethernet switch with 4 100/1000BaseT(X) ports and 6 100/1000Base SFP ports, isolated dual power supply (24/48 VDC), -40 to 75°C operating temperature, Conformal Coating	Out of stock	Warranty:

PT-G510-4GTX4GSFP-PHR-WV-CT

IEC 61850-3 and IEC 62439-3 full Gigabit Managed Ethernet switch with 4 100/1000BaseT(X) ports and 6 100/1000Base SFP ports, isolated dual power supply (24/48 VDC), -40 to 75°C operating temperature, Conformal Coating

Availability: Out of stock

Description

Серията PT-G510 е проектирана да достави най-високото ниво на надеждност на системата и непокътнатост на данните за критични приложения в цифрови подстанции, които изискват резервиране с нулево време за възстановяване. PT-G510 суичовете поддържат PRP/HSR за постигане на безпроблемно резервиране за подстанции и системи за автоматизация на процеси. Хардуерно базиран IEEE 1588v2 PTP също се поддържа за време-критични приложения. Отличаваща се с изключително издръжлив дизайн, серията PT-G510 е сертифицирана за IEC 61850-3 Edition 2 Class 2, за да изпълни взискателните изисквания в приложенията на подстанции.

Суичовете PT-G510 се предлагат с осем 100/1000BaseT(X) Ethernet порта или 100/1000BaseSFP слота с два специални 100/1000BaseSFP PRP/HSR порта, комбинирани с поддръжка за пълен набор от протоколи за резервиране, включително PRP, HSR, MRP, STP, MSTP и RSTP за максимална надеждност на мрежата. Серията PT-G510 допълнително поддържа GOOSE Check за ефективно наблюдение на GOOSE пакети и разполага с вграден MMS сървър, базиран на IEC 61850-90-4 моделиране на данни за превключване за Power SCADA системи.

Technical Specification

Ethernet Interface

100/1000BaseT(X) Ports (RJ45 connector)	PT-G510-8GTX-PHR models: 8 PT-G510-4GTX4GSFP-PHR models: 4
100/1000BaseSFP Ports	PT-G510-8GSFP-PHR models: 10 PT-G510-4GTX4GSFP-PHR models: 6
Standards	IEEE 802.3u for 100BaseT(X) and 100BaseFX IEEE 802.3ab for 1000BaseT(X) IEEE 802.3z for 1000BaseX IEEE 802.1D-2004 for Spanning Tree Protocol IEEE 802.1w for Rapid Spanning Tree Protocol IEEE 802.1p for Class of Service IEEE 802.1Q for VLAN Tagging IEEE 802.1X for authentication IEEE 802.3ad for Port Trunk with LACP IEEE 802.3x for flow control

Ethernet Software Features

Management	HTTPS Dying Gasp Back Pressure Flow Control DHCP Option 66/67/82 Fiber check Flow control LLDP Port Mirror SNMP Inform BOOTP DHCP Server/Client HTTP IPv4/IPv6 RARP SMTP SNMPv1/v2c/v3 Syslog Telnet TFTP
MIB	MIB-II Ethernet-like MIB Bridge MIB P-BRIDGE MIB Q-BRIDGE MIB RSTP MIB RMON MIB Groups 1, 2, 3, 9
Filter	IGMP v1/v2/v3 GMRP GVRP 802.1Q QinQ VLAN
Redundancy Protocols	Link Aggregation MSTP RSTP STP Turbo Chain Turbo Ring MRP HSR PRP Coupling RSTP grouping
Security	RADIUS TACACS+ SSH Port Lock Broadcast storm protection MAB authentication Sticky MAC Access control list
Time Management	NTP Server/Client SNTP IEEE 1588v2 PTP (hardware-based)
Power Substation	GOOSE Check IEC 61850 QoS MMS

Switch Properties

Priority Queues	8
Max. No. of VLANs	256
VLAN ID Range	1 to 4094
RSTP Grouping ID Range	1 to 4094
IGMP Groups	4096
MAC Table Size	16 K
Packet Buffer Size	12 Mbits

Serial Interface

Console Port

RS-232 (RJ45)

USB Interface

Storage Port

USB Type A

Power Parameters

Input Voltage	-HV models: 110-220 VAC, 110-220 VDC (88 to 300 VDC, 85 to 264 VAC) -WV models: 24-48 VDC (18 to 72 VDC) Note: Both -HV and -WV models support dual power inputs with a single power module.
Input Current	-HV models: 0.5 A @ 110-220 VAC 0.3 A @ 110-220 VDC -WV models: 1.1 A @ 24-48 VDC
Alarm Contact Channels	Resistive load: 1 A @ 24 VDC
Overload Current Protection	Supported
Reverse Polarity Protection	Supported

Physical Characteristics

IP Rating	IP30
Dimensions (without ears)	74 x 148 x 120 mm (2.91 x 5.83 x 4.72 in)
Weight	1476 g (3.25 lb)
Installation	DIN-rail mounting

Environmental Limits

Operating Temperature	-40 to 75°C (-40 to 167°F) -40 to 85°C (-40 to 185°F) for 16 hrs (tested in accordance with IEC 60068-2-2)
Storage Temperature (package included)	-40 to 85°C (-40 to 185°F)
Ambient Relative Humidity	5 to 95% (non-condensing)

Standards and Certifications

EMC	EN 55032/35
EMI	CISPR 32, FCC Part 15B Class A
EMS	IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV IEC 61000-4-5 Surge: Power: 4 kV; Signal: 4 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8 PFMF EN 61000-4-11
Power Substation	IEC 61850-3 Edition 2.0 Class 2 IEEE 1613
Railway	EN 50121-4
Maritime	-WV models: DNV IEC 60945
Safety	IEC 62368-1 UL 62368-1

MTBF

Time	688,584 hrs
Standards	Telcordia (Bellcore) Standard TR/SR

Warranty

Warranty Period

5 years
