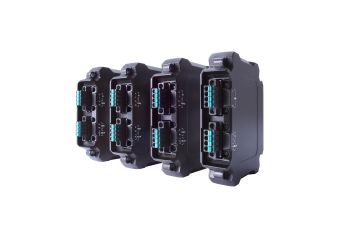

PWR-100 Power Module Series

Note

The EDS-4000/G4000 Series device model name and power parameters are determined
by the installed PWR-100 power module.
PWR-100–LV: -LV/-LV-T models
PWR-105-HV-I: -HV/-HV-T models
PWR-101-LV-BP-I: -LVA/-LVA-T models (PoE support)
PWR-103-LV-VB-I: -LVB/-LVB-T models (PoE support)
For example:
EDS-G4008-T + PWR-100-LV = EDS-G4008-LV-T
EDS-G4008-T + PWR-105-HV-I = EDS-G4008-HVT
If you install a different power module, refer to the specifications of the corresponding
model. For example, if you replace the power module of the EDS-G4008-LV-T with the
PWR-105-HV-I, refer to the specifications of the EDS-G4008-HV-T.
Power over Ethernet:
Only the EDS-4008-4P-2GT-2GS(-T), EDS-4012-8P-4GS(-T), and EDS-G4012-8P-4QGS
(-T) models support PoE. If a PoE-capable PWR-100 Series module (PWR-101-LV-BP-I,
PWR-103-LV-VB-I) is installed into an EDS-4000/G4000 Series non-PoE model, PoE
functionality will not be available.

Connection

2 removable 4-contact terminal block(s)

Input Voltage

PWR-100-LV: 12/24/48 VDC
PWR-105-HV-I: 110/220 VDC/VAC
PWR-101-LV-BP-I: 48 VDC
PWR-103-LV-VB-I: 12/24/48 VDC

Operating Voltage

PWR-100-LV: 9.6 to 60 VDC
PWR-105-HV-I: 88 to 300 VDC, 85 to 264 VAC
PWR-101-LV-BP-I: 44 to 57 VDC (> 52 VDC for PoE+ output recommended)
PWR-103-LV-VB-I: 12 to 57 VDC (> 52 VDC for PoE+ output recommended)

Input Current

PWR-100-LV: 12 to 48 VDC, 1.50 to 0.40 A or 24 VDC, 0.70 A
PWR-105-HV-I: 110 to 220 VAC, 50 to 60 Hz, 0.30 to 0.20 A or 110 to 220 VDC, 0.30 to
0.20 A
PWR-101-LV-BP-I: 48 VDC, 5.42 A
PWR-103-LV-VB-I: 12/48 VDC, 7.46/4.27 A or 24 VDC, 7.26 A

No. of Power Inputs

PWR-100-LV: Redundant dual inputs
PWR-105-HV-I: Single input
PWR-101-LV-BP-I: Redundant dual inputs
PWR-103-LV-VB-I: Redundant dual inputs

Inrush Current (Max.)

-LV models: Max. 0.8 A @ 48 VDC (0.1 to 1 ms)

Overload Current Protection

Supported

Reverse Polarity Protection

Supported

Dimensions

PWR-100-LV: 103 x 98 x 26.6 mm (4.06 x 3.86 x 1.02 in)
PWR-105-HV-I: 103 x 98 x 39.9 mm (4.06 x 3.86 x 1.57 in)
PWR-101-LV-BP-I: 103 x 98 x 39.9 mm (4.06 x 3.86 x 1.57 in)
PWR-103-LV-VB-I: 103 x 98 x 39.9 mm (4.06 x 3.86 x 1.57 in)

Weight

PWR-100-LV: 142 g (0.31 lb)
PWR-105-HV-I: 215 g (0.47 lb)
PWR-101-LV-BP-I: 176 g (0.39 lb)
PWR-103-LV-VB-I: 244 g (0.54 lb)

Operating Temperature

The operating temperature is dependent on the EDS-4000/G4000 switch the module is
installed in. Please refer to the respective EDS-4000/G4000 Series datasheet for more
information.

Storage Temperature

-40 to 85°C (-40 to 185°F)

Ambient Relative Humidity

5 to 95% (non-condensing)

Safety

EN 62368-1 (LVD)

EMI

FCC Part 15 Subpart B Class A

EMC

EN 55032/35
EN 61000-6-2/-6-4

EMS

EN 61000-4-2 (ESD) Level 4
EN 61000-4-3 (RS) Level 3
EN 61000-4-4 (EFT) Level 4
EN 61000-4-5 (Surge) Level 4
EN 61000-4-6 (CS) Level 3
EN 61000-4-8 Level 4

Vibration

ISTA 1A

Warranty Period

5 years
