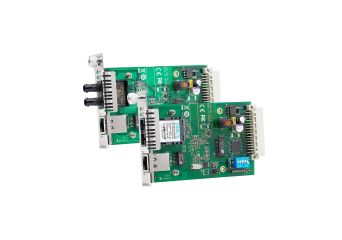

Seria CSM-200

Unmanageable 10/100BaseT(X) to 100BaseFX slide-in modules for the NRack System™

Производител: MOXA

LFP (Link Fault Pass-Through) and FEF (Far End Fault)
Two different operation modes: store-and-forward and pass-through
Auto-negotiation
Plug and play
Hot-swappable

Цена от 243,00 € без данък

High price? Log in and buy cheaper

In stock

Place the order by 12:00, the package will be shipped on the same day

Free shipping from €300

Вижте 3 модела

Promocja cenowa na model HDR-15-5

Models
Description
Technical Specification
Download
Recommended Products

Seria CSM-200

Models

Model	Availability	Warranty	Wishlist	Your Price	Your Price	Items Quantity Add
CSM-200-1213 10/100Base-TX to 100Base-Fx Converter. ST Multi mode. Slide-in Module	Out of stock	Warranty:		243,00 € 298,89 € Login to check your price	Login to check your price	pcs.

CSM-200-1213

10/100Base-TX to 100Base-Fx Converter. ST Multi mode. Slide-in Module

Availability: Out of stock

Net price:

243,00 €

Model	Availability	Warranty	Wishlist	Your Price	Your Price	Items Quantity Add
CSM-200-1214 10/100Base-TX to 100Base-Fx Converter. SC Multi mode. Slide-in Module	In stock	Warranty:		243,00 € 298,89 € Login to check your price	Login to check your price	pcs.

CSM-200-1214

10/100Base-TX to 100Base-Fx Converter. SC Multi mode. Slide-in Module

Availability:

In stock

Net price:

243,00 €

Model	Availability	Warranty	Wishlist	Your Price	Your Price	Items Quantity Add
CSM-200-1218 10/100Base-TX to 100Base-Fx Converter. SC Single mode. Slide-in Module	Out of stock	Warranty:		342,00 € 420,66 € Login to check your price	Login to check your price	pcs.

CSM-200-1218

10/100Base-TX to 100Base-Fx Converter. SC Single mode. Slide-in Module

Availability: Out of stock

Net price:

342,00 €

Description

The CSM-200 slide-in Ethernet-to-fiber media converters are designed for the NRack System™. The modules provide media conversion from 10/100BaseT(X) to 100BaseFX (SC/ST connectors), and can be installed in any NRack System™ chassis.

Technical Specification

Ethernet Interface

10/100BaseT(X) Ports (RJ45 connector)	1
100BaseFX Ports (multi-mode ST connector)	CSM-200-1213: Multi-mode ST connector
100BaseFX Ports (multi-mode SC connector)	CSM-200-1214: Multi-mode SC connector
100BaseFX Ports (single-mode SC connector)	CSM-200-1218: Single-mode SC connector
Magnetic Isolation Protection	1.5 kV (built-in)
Standards	IEEE 802.3u for 100BaseT(X) and 100BaseFX
Optical Fiber

Power Parameters

Input Current	180 mA @ 12 VDC
Input Voltage	12 VDC
Overload Current Protection	Supported
Power Consumption	180 mA @ 12 VDC

Physical Characteristics

Dimensions	86.8 x 124.3 x 21 mm (3.42 x 4.89 x 0.83 in)
Weight	Packaged: CSM-200-1213: 170 g (0.37 lb) CSM-200-1214/1218: 180 g (0.40 lb) Product only: CSM-200-1213: 115 g (0.25 lb) CSM-200-1214/1218: 125 g (0.28 lb)

Environmental Limits

Operating Temperature	0 to 55°C (32 to 131°F)
Storage Temperature (package included)	-40 to 85°C (-40 to 185°F)
Ambient Relative Humidity	5 to 95% (non-condensing)

Standards and Certifications

EMC	EN 55032/24
EMI	CISPR 32, FCC Part 15B Class A
EMS	IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV IEC 61000-4-5 Surge: Power: 1 kV; Signal: 0.5 kV IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m IEC 61000-4-8 PFMF IEC 61000-4-11 DIPs
Environmental Testing	IEC 60068-2-1 IEC 60068-2-14 IEC 60068-2-2 IEC 60068-2-3
Safety	EN 60950-1, UL 60950-1
Vibration	IEC 60068-2-6
