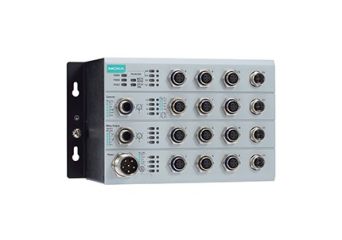

TN-4516A-4GTX

EN 50155 12+4G port Gigabit Ethernet switches

Производител: MOXA

Isolated power with 24 to 110 VDC power supply range
2 Gigabit fiber ports with embedded multi-mode Q-ODC® interface on fiber models
2 Gigabit ports with bypass relay function on bypass models
Complies with all EN 50155 mandatory test items
-40 to 75°C operating temperature range
Turbo Ring and Turbo Chain (recovery time < 20 ms @ 250 switches), and STP/RSTP/MSTP for network redundancy

Product out of stock

Free shipping from €300

Вижте 2 модела

Promocja cenowa na model HDR-15-5

Models
Description
Technical Specification
Download
Recommended Products

TN-4516A-4GTX

Models

Model	Availability	Warranty	Wishlist	Your Price	Your Price	Items Quantity Add
TN-4516A-4GTX-WV-CT-T L2 Managed Ethernet switch, 12 * 10/100BaseT(X) PoE and 4 * 10/100/1000 Base-T(X) M12 connectors, power input 24 - 110 VDC, -40 to 75? operation temperature, conformal coating model	Out of stock	Warranty:

TN-4516A-4GTX-WV-CT-T

L2 Managed Ethernet switch, 12 * 10/100BaseT(X) PoE and 4 * 10/100/1000 Base-T(X) M12 connectors, power input 24 - 110 VDC, -40 to 75? operation temperature, conformal coating model

Availability: Out of stock

Model	Availability	Warranty	Wishlist	Your Price	Your Price	Items Quantity Add
TN-4516A-4GTX-WV-T L2 Managed Ethernet switch, 12 * 10/100BaseT(X) and 4 * 10/100/1000 Base-T(X) M12 connectors, power input 24 - 110 VDC, -40 to 75? operation temperature	Out of stock	Warranty:

TN-4516A-4GTX-WV-T

L2 Managed Ethernet switch, 12 * 10/100BaseT(X) and 4 * 10/100/1000 Base-T(X) M12 connectors, power input 24 - 110 VDC, -40 to 75? operation temperature

Availability: Out of stock

Description

The ToughNet TN-4500A Series M12 managed Ethernet switches are designed for railway applications, including rolling stock and wayside installations. The switches use M12 and other circular connectors to ensure tight, robust connections, and guarantee reliable operation in industrial environments where vibration and shock are commonplace. The TN-4500A Series Ethernet switches provide 12 fast Ethernet M12 ports. In addition, the fiber models provide 2 Gigabit fiber interface ports with an embedded 2 km multimode fiber transceiver.

The 24 to 110 VDC wide power input range and isolated dual power inputs not only allow you to use the same type of power source at different sites around the globe, but also increase the reliability of your communications system. Furthermore, the -40 to 75°C operating temperature range of the switches ensures they can withstand deployment in harsh environments. TN-4500A Series Ethernet switches are compliant with the mandatory sections of EN 50155, covering operating temperature, power input voltage, surge, ESD, and vibration, as well as conformal coating and power insulation, making the switches suitable for a variety of industrial applications.

Additional Features and Benefits

IPv6 Ready logo awarded (IPv6 Logo Committee certified)
Switches are compliant with the mandatory test items of the EN 50155 standard to ensure suitability for rolling stock applications
DHCP Option 82 for IP address assignment with different policies
Turbo Ring and Turbo Chain (recovery time < 20 ms @ 250 switches), and STP/RSTP/MSTP for network redundancy
IGMP snooping and GMRP for filtering multicast traffic
EtherNet/IP and Modbus TCP industrial Ethernet protocols supported
Port-based VLAN, IEEE 802.1Q VLAN, and GVRP to ease network planning
QoS (IEEE 802.1p/1Q and ToS/DiffServ) allows real-time traffic classification and prioritization
IEEE 802.3ad, LACP for optimum bandwidth utilization
SNMPv1/v2c/v3 for different levels of network management
TACACS+, SNMPv3, IEEE 802.1X, HTTPS, and SSH to enhance network security
RMON for proactive and efficient network monitoring
Bandwidth management to prevent unpredictable network status
Lock port allows access by only authorized MAC addresses
Port mirroring for online debugging
Automatic warning by exception through email and relay output
Line-swap fast recovery
LLDP for automatic topology discovery in network management software
Configurable by web browser, Telnet/serial console, CLI, and Windows utility
Loop protection to prevent network loops
Panel mounting installation capability

Technical Specification

Input/Output Interface

Alarm Contact Channels

2 x relay output in one M12 A-coded 5-pin male connector with current carrying capacity of 1 A @ 30 VDC

Ethernet Interface

10/100/1000BaseT(X) Ports (M12 A-coded 8-pin female connector)	4
10/100BaseT(X) Ports (M12 D-coded 4-pin female connector)	12
Standards	IEEE 802.1D-2004 for Spanning Tree Protocol IEEE 802.1p for Class of Service IEEE 802.1Q for VLAN Tagging IEEE 802.1s for Multiple Spanning Tree Protocol IEEE 802.1w for Rapid Spanning Tree Protocol IEEE 802.1X for authentication IEEE 802.3 for 10BaseT IEEE 802.3ab for 1000BaseT(X) IEEE 802.3ad for Port Trunk with LACP IEEE 802.3u for 100BaseT(X) and 100BaseFX IEEE 802.3x for flow control IEEE 802.3z for 1000BaseSX/LX/LHX/Z

Ethernet Software Features

Broadcast Forwarding	IP directed broadcast, broadcast forwarding
Configuration Options	Command Line Interface (CLI), Command Line Interface (CLI) through Serial/Telnet/SSH, Web Console (HTTP/HTTPS), Windows Utility
Filter	802.1Q, GMRP, GVRP, IGMP v1/v2/v3, Port-based VLAN, Static Multicast
Industrial Protocols	EtherNet/IP Adapter (Slave), Modbus TCP Server (Slave)
Management	Back Pressure Flow Control, DHCP Option 66/67/82, DHCP Server/Client, Flow control, HTTP, IPv4/IPv6, LLDP, Port Mirror, QoS/CoS/ToS, RARP, RMON, SMTP, SNMP Inform, SNMP Trap, Syslog, Telnet, Account Management
MIB	Bridge MIB, Ethernet-like MIB, MIB-II, P-BRIDGE MIB, Q-BRIDGE MIB, RMON MIB Groups 1, 2, 3, 9, RSTP MIB
Redundancy Protocols	Link Aggregation, MSTP, RSTP, STP, Turbo Chain, Turbo Ring v1/v2, Turbo Ring with DRC
Security	Broadcast storm protection, HTTPS/SSL, Local Account Accessibility, TACACS+, Port Lock, RADIUS, Rate Limit, SSH
Time Management	IEEE 1588 PTP v1/v2, NTP Server/Client, SNTP

Switch Properties

IGMP Groups	256
Max. No. of VLANs	64
VLAN ID Range	VID 1 to 4094

LED Interface

LED Indicators

STATE, PWR1, PWR2, FAULT, 10/100/1000M

Serial Interface

Console Port

M12 A-coded male connector

Power Parameters

Input Current	Max. 0.7 A @ 24 VDC
Input Voltage	24/36/48/72/96/110 VDC
No. of Power Inputs	2
Operating Voltage	16.8 to 137.5 VDC
Overload Current Protection	Supported
Power Connector	M23 connector
Reverse Polarity Protection	Supported

Physical Characteristics

Housing	Metal
IP Rating	IP42
Dimensions	229.8 x 132 x 122.3 mm (9.05 x 5.20 x 4.81 in)
Weight	1,965 g (4.32 lb)
Installation	DIN-rail mounting (optional), Wall mounting

Environmental Limits

Operating Temperature	-40 to 75°C (-40 to 167°F)
Storage Temperature (package included)	-40 to 85°C (-40 to 185°F)
Ambient Relative Humidity	5 to 95% (non-condensing)
Altitude	2000 m

Standards and Certifications

EMC	EN 55032/24
EMS	IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8 PFMF
Freefall	IEC 60068-2-31
Radio Frequency	FCC
Railway	EN 50121-4, EN 50155, IEC 60571
Railway Fire Protection	EN 45545-2
Safety	IEC 60950-1, UL 61010-2-201
Shock	IEC 60068-2-27, IEC 61373, EN 50155
Vibration	IEC 60068-2-64, IEC 61373, EN 50155

Declaration

Green Product

RoHS, CRoHS, WEEE

MTBF

Standards	Telcordia SR332
Time	599,164 hrs
