Производител: MOXA
- M12 connectors and IP40 metal housing
- Up to 8 IEEE 802.3af compliant PoE and Ethernet combo ports
- Supports IEEE 802.3/802.3u/802.3x
- Complies with all EN 50155 mandatory test items
- -40 to 75°C operating temperature range (-T models)
In stock
Place the order by 12:00, the package will be shipped on the same day
Free shipping from €300
Promocja cenowa na model HDR-15-5

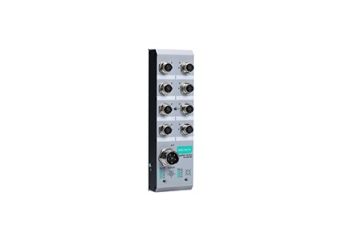

TN-5308-4PoE/TN-5308-8PoE
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddTN-5308-4PoE-48Unmanaged Ethernet switch with 8 10/100BaseT(X) ports with M12 connectors, 48 VDC, 0 to 60°COut of stock Warranty: TN-5308-4PoE-48Unmanaged Ethernet switch with 8 10/100BaseT(X) ports with M12 connectors, 48 VDC, 0 to 60°CAvailability: Out of stock- -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddTN-5308-4PoE-48-TUnmanaged Ethernet switch with 8 10/100BaseT(X) ports with M12 connectors, 48 VDC, -40 to 75°COut of stock Warranty: TN-5308-4PoE-48-TUnmanaged Ethernet switch with 8 10/100BaseT(X) ports with M12 connectors, 48 VDC, -40 to 75°CAvailability: Out of stock- -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddTN-5308-8PoE-48Unmanaged Ethernet switch with 8 10/100BaseT(X) PoE ports, M12 connectors,1 isolated power inputs(48 VDC), -25 to 60°C operating temperatureOut of stock Warranty: TN-5308-8PoE-48Unmanaged Ethernet switch with 8 10/100BaseT(X) PoE ports, M12 connectors,1 isolated power inputs(48 VDC), -25 to 60°C operating temperatureAvailability: Out of stock- -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddTN-5308-8PoE-48-TUnmanaged Ethernet switch with 8 10/100BaseT(X) PoE ports, M12 connectors,1 isolated power inputs(48 VDC), -40 to 75°C operating temperatureIn stockWarranty: TN-5308-8PoE-48-TUnmanaged Ethernet switch with 8 10/100BaseT(X) PoE ports, M12 connectors,1 isolated power inputs(48 VDC), -40 to 75°C operating temperatureAvailability:In stock-
Accessories
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddCAP-M for M12FFIn stockWarranty: 8,00 €9,84 €Login to check your price CAP-M for M12FFAvailability:In stockNet price:8,00 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity Add1-meter M12-to-5-pin power cable with waterproof 5-pin A-coded M12 connectorIn stockWarranty: 22,00 €27,06 €Login to check your price 1-meter M12-to-5-pin power cable with waterproof 5-pin A-coded M12 connectorAvailability:In stockNet price:22,00 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity Add1-meter M12-to-RJ45 Cat-5E UTP Ethernet cable with waterproof 4-pin D-coded M12 connectorOut of stock Warranty: 22,00 €27,06 €Login to check your price 1-meter M12-to-RJ45 Cat-5E UTP Ethernet cable with waterproof 4-pin D-coded M12 connectorAvailability: Out of stockNet price:22,00 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddField-installable A-coded screw-in sensor connector, femaleOut of stock Warranty: 30,00 €36,90 €Login to check your price Field-installable A-coded screw-in sensor connector, femaleAvailability: Out of stockNet price:30,00 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddField-installable D-coded screw-in sensor connector, maleIn stockWarranty: 17,00 €20,91 €Login to check your price Field-installable D-coded screw-in sensor connector, maleAvailability:In stockNet price:17,00 €
Description
The ToughNet TN-5308 Series M12 unmanaged Ethernet switches are designed for industrial applications in harsh environments. TN-5308 Series switches use M12 connectors to ensure tight, robust connections, and guarantee reliable operation against environmental disturbances, such as vibration and shock. The TN-5308 Series Ethernet switches provide 8 Fast Ethernet M12 ports, support IEEE 802.3/802.3u/802/3x with 10/100M, full/half-duplex, MDI/MDI-X auto-sensing, and provide an economical solution for your industrial Ethernet network.
Models with an extended operating temperature range of -40 to 75°C are also available. TN-5308 Ethernet switches comply with those EN 50155 requirements that make products more suitable for rolling stock applications, including operating temperature, power input voltage, surge, ESD, and vibration, making the switches suitable for a variety of industrial applications. TN-5308 PoE Ethernet switches provide 4 or 8 IEEE 802.3af compliant PoE ports. These switches are classified as power source equipment (PSE) and provide up to 15.4 watts of power per port.
Technical Specification
- Ethernet Interface
| PoE Ports (10/100BaseT(X), M12 D-coded 4-pin female connector) | 8 |
| Standards | IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X) IEEE 802.3x for flow control IEEE 802.3af for PoE |
- Power Parameters
| Input Current | TN-5308-4PoE Series: 1.6 A @ 48 VDC TN-5308-8PoE Series: 2.9 A @ 48 VDC |
| Input Voltage | 48 VDC |
| Max. PoE Power Output per Port | 15.4 W |
| No. of Power Inputs | 1 |
| Operating Voltage | 46 to 50 VDC |
| Power Connector | M12 A-coded male connector |
- Physical Characteristics
| Housing | Metal |
| IP Rating | IP40 |
| Dimensions | TN-5308-4PoE Series: 60 x 216.6 x 48.7 mm (2.36 x 8.53 x 1.91 in) TN-5308-8PoE Series: 60 x 216.6 x 52.9 mm (2.36 x 8.53 x 2.1 in) |
| Weight | TN-5308-4PoE Series: 675 g (1.49 lb) TN-5308-8PoE Series: 970 g (2.14 lb) |
| Installation | DIN-rail mounting (with optional kit), Wall mounting |
- Environmental Limits
| Operating Temperature | Standard Models: -25 to 60°C (-13 to 140°F) Wide Temp. Models: -40 to 75°C (-40 to 167°F) |
| Storage Temperature (package included) | -40 to 85°C (-40 to 185°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
| Altitude | 2000 m |
- Standards and Certifications
| Freefall | IEC 60068-2-32 |
| EMC | EN 55032/24 |
| EMI | CISPR 32, FCC Part 15B Class A |
| EMS | IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8 PFMF |
| Environmental Testing | IEC 60068-2-1, EN 50155 IEC 60068-2-14, EN 50155 IEC 60068-2-2, EN 50155 IEC 60068-2-30, EN 50155 |
| International Approval | RCM |
| Railway | EN 50121-4, EN 50155 |
| Railway Fire Protection | EN 45545-2 |
| Safety | EN 60950-1, UL 508 |
| Salt Spray Test | IEC 60068-2-11, EN 50155 |
| Shock | IEC 60068-2-27, IEC 61373, EN 50155 |
| Vibration | IEC 60068-2-64, IEC 61373, EN 50155 |
- Declaration
| Green Product | RoHS, CRoHS, WEEE |
- MTBF
| Time | TN-5308-4PoE Series: 252,075 hrs TN-5308-8PoE Series: 308,392 hrs |
| Standards | Telcordia SR332 |
