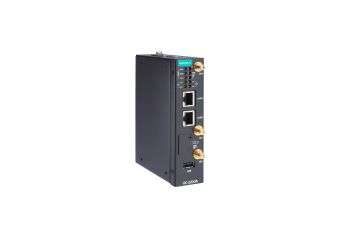

UC-2200A
Arm® Cortex®-A53 dual-core 64-bit 1-GHz industrial computers with built-in LTE Cat. 4 module, -40 to 70°C operating temperature
Производител: MOXA
Производител: MOXA
- Armv8 Cortex-A53 dual-core 1 GHz processor
- 2 auto-sensing 10/100/1000 Mbps Ethernet ports
- Rich programmable LEDs and a programmable button for easy installation and maintenance
- LTE-ready computer with Verizon/AT&T certification and industrial-grade CE/FCC/UL certifications
- -40 to 75°C operating temperature range
- Long-term Linux support until 2031; includes bug fixes and security patches
Цена от 583,00 € без данък
High price? Log in and buy cheaper
Product out of stock
Free shipping from €300
Promocja cenowa na model HDR-15-5
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddUC-2222A-TArm-based DIN-rail industrial computer with wide operating temperature, Cortex-A53 dual-core 64-bit 1 GHz CPU, 2GB RAM, 2 serial ports, 2 Ethernet ports, TPM, and Linux pre-installedOut of stock Warranty: 583,00 €717,09 €Login to check your price UC-2222A-TArm-based DIN-rail industrial computer with wide operating temperature, Cortex-A53 dual-core 64-bit 1 GHz CPU, 2GB RAM, 2 serial ports, 2 Ethernet ports, TPM, and Linux pre-installedAvailability: Out of stockNet price:583,00 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddUC-2222A-T-EUArm-based wireless-enabled DIN-rail industrial computer with wide operating temperature, Cortex-A53 dual-core 64-bit 1 GHz CPU, 2GB RAM, 2 serial ports, 2 Ethernet ports, TPM, Europe LTE module built-in, and Linux pre-installedOut of stock Warranty: 776,00 €954,48 €Login to check your price UC-2222A-T-EUArm-based wireless-enabled DIN-rail industrial computer with wide operating temperature, Cortex-A53 dual-core 64-bit 1 GHz CPU, 2GB RAM, 2 serial ports, 2 Ethernet ports, TPM, Europe LTE module built-in, and Linux pre-installedAvailability: Out of stockNet price:776,00 €
Accessories
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddLTE Stick antenna that covers 704-960/1710-2620 MHz providingIn stockWarranty: 24,00 €29,52 €Login to check your price LTE Stick antenna that covers 704-960/1710-2620 MHz providingAvailability:In stockNet price:24,00 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddMulti-band antenna that covers 700-2700 MHz. Specially designedOut of stock Warranty: 69,00 €84,87 €Login to check your price Multi-band antenna that covers 700-2700 MHz. Specially designedAvailability: Out of stockNet price:69,00 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddMulti-band antenna that covers 700-2700/2400-2500/5150-5850 MHz frequencies. Screw-fastened mounting and full IP67 waterproofing are available.Out of stock Warranty: 158,00 €194,34 €Login to check your price Multi-band antenna that covers 700-2700/2400-2500/5150-5850 MHz frequencies. Screw-fastened mounting and full IP67 waterproofing are available.Availability: Out of stockNet price:158,00 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity Add2.4/5GHz, dual-band omni-directional antenna, 1.8/1.8 dBi, RP-SMA (male) connectorIn stockWarranty: 7,00 €8,61 €Login to check your price 2.4/5GHz, dual-band omni-directional antenna, 1.8/1.8 dBi, RP-SMA (male) connectorAvailability:In stockNet price:7,00 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddCBL-F9DPF1x4-BK-100Console cable with 4-pin connectorIn stockWarranty: 4,00 €4,92 €Login to check your price CBL-F9DPF1x4-BK-100Console cable with 4-pin connectorAvailability:In stockNet price:4,00 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddCable (CBL-PJTB-10)In stockWarranty: 4,00 €4,92 €Login to check your price Cable (CBL-PJTB-10)Availability:In stockNet price:4,00 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity Add12V 1.5A, 5.5/2.1/7.5, w/Nut WT, -40 to 75°C, EU PlugIn stockWarranty: 37,00 €45,51 €Login to check your price 12V 1.5A, 5.5/2.1/7.5, w/Nut WT, -40 to 75°C, EU PlugAvailability:In stockNet price:37,00 €
Description
Introduction
The UC-2200A computing platform is designed for embedded data acquisition applications. The computer comes with dual RS-232/422/485 serial ports and dual 10/100/1000 Mbps Ethernet ports, as well as a Mini PCIe socket to support a wireless module. These versatile capabilities let users efficiently adapt the UC-2200A to a variety of complex communications solutions.
The UC-2200A is built around a Cortex-A53 processor that has been optimized for use in energy monitoring systems, but is widely applicable to a variety of industrial solutions. With flexible interfacing options, this tiny embedded computer is a reliable and secure gateway for data acquisition and processing at field sites as well as a useful communications platform for many other large-scale deployments.
Wide-temperature and LTE-enabled models are available. All units are thoroughly tested in a testing chamber, guaranteeing that the LTE-enabled computing platforms are suitable for wide-temperature applications.
Appearance
Technical Specification
- Computer
| CPU | Armv8 Cortex-A53 dual-core 1GHz |
| DRAM | 2 GB DDR4 |
| Pre-installed OS | Moxa Industrial Linux (Debian 11, kernel 5.10), 2031 EOL See www.moxa.com/MIL |
| Storage Pre-installed | 16 GB eMMC |
| Storage Slot | micro SD slots x 1 |
- Computer Interface
| Ethernet Ports | Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) x 2 |
| Serial Ports | RS-232/422/485 ports x 2, software selectable (terminal block) |
| USB 2.0 | USB 2.0 hosts x 1, type-A connectors |
| Console Port | RS-232 (TxD, RxD, GND), 4-pin header output (115200, n, 8, 1) |
| Expansion Slots | mPCIe slots x 1 |
| Number of SIMs | 1 |
| SIM Format | Nano |
| Buttons | Reset button |
| TPM | TPM v2.0 |
- Ethernet Interface
| Ethernet Ports | Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) x 2 |
| Magnetic Isolation Protection | 1.5 kV (built-in) |
- Serial Interface
| Baudrate | 300 bps to 921.6 kbps |
| Data Bits | 5, 6, 7, 8 |
| Parity | None, Even, Odd, Space, Mark |
| Stop Bits | 1, 1.5, 2 |
| Flow Control | RTS/CTS XON/XOFF Automatic Data Direction Control (ADDC) for RS-485 RTS Toggle (RS-232 only) |
- Serial Signals
| RS-232 | TxD, RxD, RTS, CTS, GND |
| RS-422 | Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-2w | Data+, Data-, GND |
| RS-485-4w | Tx+, Tx-, Rx+, Rx-, GND |
- Cellular Interface
| Cellular Standards | LTE Cat. 4 |
| Band Options | US Models: LTE Band 2 (1900 MHz) / LTE Band 4 (1700 MHz) / LTE Band 5 (850 MHz) / LTE Band 12 (700 MHz) / Band 13 (700 MHz) / Band 14 (700 MHz) / Band 66 (1700 MHz) / Band 71 (600 MHz)UMTS/HSPA B5 (850 MHz) / B4 (1700 MHz) / B2 (1900 MHz)Carrier Approvals: Verizon, AT&T EU Models:LTE Band 1 (2100 MHz) / LTE Band 3 (1800 MHz) / Band 7 (2600 MHz) / LTE Band 8 (900 MHz) / LTE Band 20 (800 MHz)/ LTE Band 28A (700 MHz)UMTS/HSPA B8 (900 MHz) / B3 (1800 MHz) / B1 (2100 MHz) GSM DCS (1800 MHz) / GSM 900 (900 MHz) AP Models:LTE Band 1 (2100 MHz) / LTE Band 3 (1800 MHz) / LTE Band 5 (850 MHz) / LTE Band 8 (900 MHz) / LTE Band 9 (1800 MHz) / LTE Band 18 (800 MHz) / LTE Band 19 (800 MHz) / LTE Band 26 (850 MHz) / LTE Band 28 (700 MHz)UMTS/HSPA B19 (800 MHz) / B8 (900 MHz) / B6 (850 MHz) / B5 (850 MHz) / B1 (2100 MHz) |
- GPS Interface
| Receiver Types | GPS, GLONASS, Galileo |
| Accuracy | Position: 2.0 m @CEP50 |
| Acquisition | Hot starts: 1.1 sec Cold starts: 29.94 sec |
| Sensitivity | Cold starts: -145 dBm Tracking: -160 dBm |
| Time Pulse | 250 Hz to 10 MHz |
- LED Indicators
| System | Power x 1 SW ready (programmable) USB (programmable) x 1 micro SD slot (programmable) x 1 Serial Port: TX x 2, RX x 2 |
| Wireless Signal Strength | Cellular x 2, programmable Disconnected: None Very Poor Signal: 1 LED (blinking) Poor Signal: 1 LED Good Signal: 2 LEDs |
- Power Parameters
| Input Current | Models Without Built-in LTE: 600mA @ 12 VDC 300mA @ 24 VDC Models With Built-in LTE: 900mA @ 12 VDC 450mA @ 24 VDC |
| Input Voltage | 12 to 24 VDC |
| Power Consumption | Models Without Built-in LTE: 4.5 W (without external USB device) 7.2 W (with external USB device attached) Models With Built-in LTE: 7.8 W (without external USB device) 10.5 W (with external USB device) |
- Reliability
| Alert Tools | External RTC (real-time clock) |
| Automatic Reboot Trigger | External WDT (watchdog timer) |
- Physical Characteristics
| Dimensions | 102 x 32 x 128 mm (4.20 x 1.26 x 5.04 in) |
| Weight | 546 g (1.2 lb) |
| Housing | SECC Metal |
| Installation | DIN-rail mounting Wall mounting (with optional kit) |
- Environmental Limits
| Operating Temperature | Models Without Built-in LTE: -40 to 75°C (-40 to 167°F) Models With Built-in LTE: -40 to 70°C (-40 to 158°F) |
| Storage Temperature (package included) | -40 to 80°C (-40 to 176°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
| Shock | IEC 60068-2-27 |
| Vibration | 2 Grms @ IEC 60068-2-64, random wave, 5-500 Hz, 1 hr per axis (without USB devices attached) |
- Standards and Certifications
| EMC | EN 55032/35 EN 61000-6-2/-6-4 |
| EMI | CISPR 32, FCC Part 15B Class A |
| EMS | IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m IEC 61000-4-3 RS: 1.4 GHz to 6 GHz: 3 V/m IEC 61000-4-4 EFT: Power: 1 kV; Signal: 1 kV IEC 61000-4-5 L-PE: 1 kV ; L –L: 0.5 kV; Signal: 1 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8 PFMF |
| Safety | EN 62368-1 UL 62368-1 |
| International Approval | RCM KC BSMI |
| Green Product | RoHS, CRoHS, WEEE |
- MTBF
| Time | UC-2222A-T: 924,676 hrs UC-2222A-T-CN: 914,741 hrs UC-2222A-T-EU: 866,622 hrs UC-2222A-T-AP: 870,393 hrs UC-2222A-T-US: 865,122 hrs |
| Standards | Telcordia (Bellcore) Standard TR/SR |
- Warranty
| Warranty Period | 5 years |
| Details | See www.moxa.com/warranty |
