1-port RS-232/422/485 serial device servers with serial surge protection
Цена от 141,00 € без данък
При поръчка до 15:00 ч., пратката ще бъде изпратена същия ден In stock
Производител: MOXA
- Hi-Speed USB 2.0 for up to 480 Mbps USB data transmission rates
- 921.6 kbps maximum baudrate for fast data transmission
- Drivers provided for Windows, WinCE, and Linux
- Mini-DB9-female-to-terminal-block adapter for easy wiring
- LEDs for indicating USB and TxD/RxD activity
Цена от 234,00 € без данък
High price? Log in and buy cheaper
Product out of stock
Free shipping from €300
Promocja cenowa na model HDR-15-5
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddUPort 14104 Port USB-to-Serial Hub, RS-232Out of stock Warranty: 234,00 €287,82 €Login to check your price UPort 14104 Port USB-to-Serial Hub, RS-232Availability: Out of stockNet price:234,00 €
Description

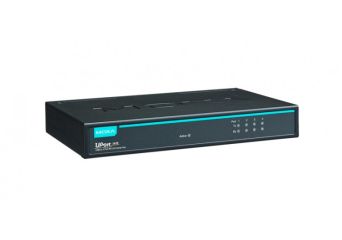

The UPort® 1410 Series of USB-to-serial converters is the perfect accessory for laptop or workstation computers that do not have a serial port. They are essential for engineers who need to connect different serial devices in the field or separate interface converters for devices without a standard COM port or DB9 connector.
The UPort® 1410 Series converts from USB to RS-232. All products are compatible with legacy serial devices, and can be used with instrumentation and point-of-sale applications.
Technical Specification
- USB Interface
| Speed | 12 Mbps, 480 Mbps |
| USB Connector | USB Type B |
| USB Standards | USB 1.1/2.0 compliant |
- Serial Interface
| No. of Ports | 4 |
| Connector | DB9 male |
| Baudrate | 50 bps to 921.6 kbps |
| Data Bits | 5, 6, 7, 8 |
| Stop Bits | 1, 1.5, 2 |
| Parity | None, Even, Odd, Space, Mark |
| Flow Control | None, RTS/CTS, XON/XOFF |
| Serial Standards | RS-232 |
- Serial Signals
| RS-232 | TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND |
| RS-422 | Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-4w | Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-2w | Data+, Data-, GND |
- Power Parameters
| Input Voltage | 5 V for USB port power, 12 V for external power adapter |
| Input Current | 260 mA @ 12 VDC |
- Physical Characteristics
| Housing | Metal |
| Dimensions | 204 x 30 x 125 mm (8.03 x 1.18 x 4.92 in) |
| Weight | 720 g (1.59 lb) |
- Environmental Limits
| Operating Temperature | 0 to 55°C (32 to 131°F) |
| Storage Temperature (package included) | -20 to 75°C (-4 to 167°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
- Standards and Certifications
| EMC | EN 55032/24 |
| EMI | CISPR 32, FCC Part 15B Class 1 |
| EMS | IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m IEC 61000-4-4 EFT: Power: 1 kV IEC 61000-4-5 Surge: Power: 1 kV IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m IEC 61000-4-8 PFMF |
| Safety | UL 60950-1 |
- Declaration
| Green Product | RoHS, CRoHS, WEEE |
- MTBF
| Time | 394,441 hrs |
| Standards | Telcordia (Bellcore) Standard |
Download
