Производител: MOXA
- 3 Gigabit Ethernet ports for redundant ring or uplink solutions
- Turbo Ring and Turbo Chain (recovery time < 20 ms @ 250 switches), RSTP/STP, and MSTP for network redundancy
- RADIUS, TACACS+, SNMPv3, IEEE 802.1x, HTTPS, SSH, and sticky MAC address to enhance network security
- Security features based on IEC 62443
- EtherNet/IP, PROFINET, and Modbus TCP protocols supported for device management and monitoring
- Supports MXstudio for easy, visualized industrial network management
- V-ON™ ensures millisecond-level multicast data and video network recovery
Цена от 1 056,00 € без данък
High price? Log in and buy cheaper
In stock
Place the order by 12:00, the package will be shipped on the same day
Free shipping from €300
Promocja cenowa na model HDR-15-5
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddEDS-510E-3GTXSFPManaged Gigabit Ethernet switch with 7 10/100BaseT(X) ports, and 3 10/100/1000BaseT(X) or 100/1000BaseSFP combo ports, -10 to 60°C operating temperatureIn stockWarranty: 1 056,00 €1 298,88 €Login to check your price EDS-510E-3GTXSFPManaged Gigabit Ethernet switch with 7 10/100BaseT(X) ports, and 3 10/100/1000BaseT(X) or 100/1000BaseSFP combo ports, -10 to 60°C operating temperatureAvailability:In stockNet price:1 056,00 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddEDS-510E-3GTXSFP-TManaged Gigabit Ethernet switch with 7 10/100BaseT(X) ports, and 3 10/100/1000BaseT(X) or 100/1000BaseSFP combo ports, -40 to 75°C operating temperatureIn stockWarranty: 1 144,00 €1 407,12 €Login to check your price EDS-510E-3GTXSFP-TManaged Gigabit Ethernet switch with 7 10/100BaseT(X) ports, and 3 10/100/1000BaseT(X) or 100/1000BaseSFP combo ports, -40 to 75°C operating temperatureAvailability:In stockNet price:1 144,00 €
Accessories
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddDIN rail power supply 30W 24V 1.5AIn stockWarranty: 13,40 €16,48 €Login to check your price DIN rail power supply 30W 24V 1.5AAvailability:In stockNet price:13,40 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddSmall Form Factor pluggable transceiver with 100Base multi-mode, LC connector, 4Km, -40 to 85°CIn stockWarranty: 122,00 €150,06 €Login to check your price Small Form Factor pluggable transceiver with 100Base multi-mode, LC connector, 4Km, -40 to 85°CAvailability:In stockNet price:122,00 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddSmall Form Factor pluggable transceiver with 100Base single-mode, LC connector, 40Km, -40 to 85°CIn delivery Warranty: 274,00 €337,02 €Login to check your price Small Form Factor pluggable transceiver with 100Base single-mode, LC connector, 40Km, -40 to 85°CAvailability: In deliveryNet price:274,00 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddSmall Form Factor pluggable transceiver with 1000BaseLX, LC connector, 10 km, 0 to 60°CIn stockWarranty: 257,00 €316,11 €Login to check your price Small Form Factor pluggable transceiver with 1000BaseLX, LC connector, 10 km, 0 to 60°CAvailability:In stockNet price:257,00 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddSmall Form Factor pluggable transceiver with 1000BaseSX, LC connector, 0.5 km, 0 to 60°CIn stockWarranty: 145,00 €178,35 €Login to check your price Small Form Factor pluggable transceiver with 1000BaseSX, LC connector, 0.5 km, 0 to 60°CAvailability:In stockNet price:145,00 €
Description

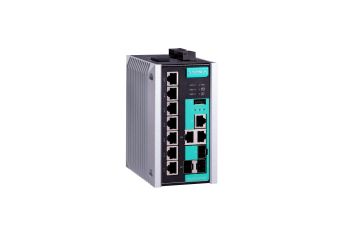

The EDS-510E Gigabit managed Ethernet switches are designed to meet rigorous mission-critical applications, such as factory automation, ITS, and process control. The 3 Gigabit Ethernet ports allow great flexibility to build up a Gigabit redundant Turbo Ring and a Gigabit uplink. The switches have USB interfaces for switch configuration, system file backup, and firmware upgrade, making them easier to manage.
Additional Features and Benefits
- Command line interface (CLI) for quickly configuring major managed functions
- DHCP Option 82 for IP address assignment with different policies
- Supports EtherNet/IP, PROFINET, and Modbus TCP protocols for device management and monitoring
- IGMP snooping and GMRP for filtering multicast traffic
- Port-based VLAN, IEEE 802.1Q VLAN, and GVRP to ease network planning
- Configurable by web browser, Telnet/USB console, CLI, MXconfig, and ABC-02-USB automatic backup configurator
- QoS (IEEE 802.1p/1Q and TOS/DiffServ) to increase determinism
- Port Trunking for optimum bandwidth utilization
- SNMPv1/v2c/v3 for different levels of network management
- RMON for proactive and efficient network monitoring
- Bandwidth management to prevent unpredictable network status
- Lock port function for blocking unauthorized access based on MAC address
- Automatic warning by exception through email and relay output
Technical Specification
- Input/Output Interface
| Alarm Contact Channels | 1, Relay output with current carrying capacity of 1 A @ 24 VDC |
| Buttons | Reset button |
| Digital Input Channels | 1 |
| Digital Inputs | +13 to +30 V for state 1 -30 to +3 V for state 0 Max. input current: 8 mA |
- Ethernet Interface
| 10/100BaseT(X) Ports (RJ45 connector) | 7 Auto negotiation speed Full/Half duplex mode Auto MDI/MDI-X connection |
| Combo Ports (10/100/1000BaseT(X) or 100/1000BaseSFP+) | 3 |
| 10/100/1000BaseT(X) Ports (RJ45 connector) | Auto negotiation speed Full/Half duplex mode Auto MDI/MDI-X connection |
| Standards | IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X) and 100BaseFX IEEE 802.3ab for 1000BaseT(X) IEEE 802.3z for 1000BaseSX/LX/LHX/ZX IEEE 802.3x for flow control IEEE 802.1D-2004 for Spanning Tree Protocol IEEE 802.1w for Rapid Spanning Tree Protocol IEEE 802.1s for Multiple Spanning Tree Protocol IEEE 802.1p for Class of Service IEEE 802.1Q for VLAN Tagging IEEE 802.1X for authentication IEEE 802.3ad for Port Trunk with LACP |
- Ethernet Software Features
| Filter | 802.1Q VLAN, Port-based VLAN, GVRP, IGMP v1/v2/v3, GMRP |
| Industrial Protocols | EtherNet/IP, Modbus TCP, PROFINET IO Device (Slave) |
| Management | LLDP, Back Pressure Flow Control, BOOTP, Port Mirror, DHCP Option 66/67/82, DHCP Server/Client, Fiber check, Flow control, IPv4/IPv6, RARP, RMON, SMTP, SNMP Inform, SNMPv1/v2c/v3, Syslog, Telnet, TFTP |
| MIB | Ethernet-like MIB, MIB-II, Bridge MIB, P-BRIDGE MIB, Q-BRIDGE MIB, RMON MIB Groups 1, 2, 3, 9, RSTP MIB |
| Redundancy Protocols | Link Aggregation, MSTP, RSTP, STP, Turbo Chain, Turbo Ring v1/v2 |
| Security | Broadcast storm protection, HTTPS/SSL, TACACS+, SNMPv3, Sticky MAC, NTP authentication, Port Lock, RADIUS, SSH, SMTP with TLS |
| Time Management | NTP Server/Client, SNTP |
- Switch Properties
| IGMP Groups | 2048 |
| MAC Table Size | 8 K |
| Max. No. of VLANs | 64 |
| Packet Buffer Size | 1 Mbits |
| Priority Queues | 4 |
| VLAN ID Range | VID 1 to 4094 |
- USB Interface
| Storage Port | USB Type A |
- LED Interface
| LED Indicators | PWR1, PWR2, STATE, FAULT, 10/100M (TP port), Gigabit combo port, MSTR/HEAD, CPLR/TAIL |
- Serial Interface
| Console Port | USB-serial console (Type B connector) |
- DIP Switch Configuration
| DIP Switches | Turbo Ring, Master, Coupler, Reserve |
- Power Parameters
| Connection | 2 removable 4-contact terminal block(s) |
| Input Current | 0.58 A @ 24 VDC |
| Input Voltage | 12/24/48/-48 VDC, Redundant dual inputs |
| Operating Voltage | 9.6 to 60 VDC |
| Overload Current Protection | Supported |
| Reverse Polarity Protection | Supported |
- Physical Characteristics
| Housing | Metal |
| IP Rating | IP30 |
| Dimensions | 79.2 x 135 x 116 mm (3.12 x 5.31 x 4.57 in) |
| Weight | 1690 g (3.73 lb) |
| Installation | DIN-rail mounting, Wall mounting (with optional kit) |
- Environmental Limits
| Operating Temperature | EDS-510E-3GTXSFP: -10 to 60°C (14 to 140°F) EDS-510E-3GTXSFP-T: -40 to 75°C (-40 to 167°F) |
| Storage Temperature (package included) | -40 to 85°C (-40 to 185°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
- Standards and Certifications
| Safety | UL 508 |
| EMC | EN 61000-6-2/-6-4 |
| EMI | CISPR 32, FCC Part 15B Class A |
| EMS | IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV IEC 61000-4-5 Surge: Power: 4 kV; Signal: 4 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8 PFMF |
| Hazardous Locations | ATEX, Class I Division 2 |
| Maritime | DNV-GL, LR, ABS, NK |
| Power Substation | IEC 61850-3, IEEE 1613 |
| Railway | EN 50121-4 |
| Traffic Control | NEMA TS2 |
| Shock | IEC 60068-2-27 |
| Freefall | IEC 60068-2-32 |
| Vibration | IEC 60068-2-6 |
- MTBF
| Time | 725,532 hrs |
| Standards | Telcordia (Bellcore), GB |
