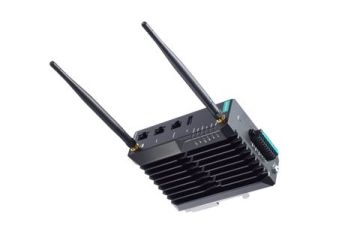

AWK-3252A

Industrial IEEE 802.11a/b/g/n/ac wireless AP/bridge/client

Производител: MOXA

IEEE 802.11a/b/g/n/ac Wave 2 AP/bridge/client
Concurrent dual-band Wi-Fi with aggregated data rates up to 1.267 Gbps
Latest WPA3 encryption for enhanced wireless network security
Universal (UN) models with configurable country or region code for more flexible deployment
Easy network setup with Network Address Translation (NAT)
Millisecond-level Client-based Turbo Roaming
Built-in 2.4 GHz and 5 GHz band pass filter for more reliable wireless connections
-40 to 75°C wide operating temperature range (-T models)
Integrated antenna isolation

Цена от 763,00 € без данък

High price? Log in and buy cheaper

Product out of stock

Free shipping from €300

Вижте 2 модела

Promocja cenowa na model HDR-15-5

Models
Accessories
Description
Technical Specification
Download
Recommended Products

AWK-3252A

Models

Model	Availability	Warranty	Wishlist	Your Price	Your Price	Items Quantity Add
AWK-3252A-UN Advanced In-door 802.11ac 2.4GHz/5GHz Dual Radio, 2x2:2SS, Dual GbE, PoE+, IP30, Universal model, -25 to 60°C	Out of stock	Warranty:		763,00 € 938,49 € Login to check your price	Login to check your price	pcs.

AWK-3252A-UN

Advanced In-door 802.11ac 2.4GHz/5GHz Dual Radio, 2x2:2SS, Dual GbE, PoE+, IP30, Universal model, -25 to 60°C

Availability: Out of stock

Net price:

763,00 €

Model	Availability	Warranty	Wishlist	Your Price	Your Price	Items Quantity Add
AWK-3252A-UN-T Advanced In-door 802.11ac 2.4GHz/5GHz Dual Radio, 2x2:2SS, Dual GbE, PoE+, IP30, Universal model, -40 to 75°C	Out of stock	Warranty:		898,00 € 1 104,54 € Login to check your price	Login to check your price	pcs.

AWK-3252A-UN-T

Advanced In-door 802.11ac 2.4GHz/5GHz Dual Radio, 2x2:2SS, Dual GbE, PoE+, IP30, Universal model, -40 to 75°C

Availability: Out of stock

Net price:

898,00 €

Accessories

Model	Availability	Warranty	Wishlist	Your Price	Your Price	Items Quantity Add
HDR-30-24 DIN rail power supply 30W 24V 1.5A	In stock	Warranty:		13,40 € 16,48 € Login to check your price	Login to check your price	pcs. 96 pieces in box

HDR-30-24

DIN rail power supply 30W 24V 1.5A

Availability:

In stock

Net price:

13,40 €

Description

The AWK-3252A Series 3-in-1 industrial wireless AP/bridge/client is designed to meet the growing need for faster data transmission speeds through IEEE 802.11ac technology for aggregated data rates of up to 1.267 Gbps. The AWK-3252A is compliant with industrial standards and approvals covering operating temperature, power input voltage, surge, ESD, and vibration. The two redundant DC power inputs increase the reliability of the power supply, and the AWK-3252A can be powered via PoE to facilitate flexible deployment. The AWK-3252A can operate concurrently on both the 2.4 and 5 GHz bands and is backwards-compatible with existing 802.11a/b/g/n deployments to future-proof your wireless investments.

Advanced 802.11ac Industrial Wireless Solution

802.11a/b/g/n/ac compliant AP/bridge/client for flexible deployment
DFS channel support allows a wider range of 5 GHz channel selection to avoid interference from existing wireless infrastructure

Advanced Wireless Technology

Seamless roaming with client-based Turbo Roaming for < 150 ms roaming recovery time between APs (Client Mode)

Industrial Ruggedness

Integrated antenna isolation designed to provide protection against external electrical interference
-40 to 75°C wide operating temperature models (-T) provided for smooth wireless communication in harsh environments

Technical Specification

WLAN Interface

WLAN Standards	2.4 GHz: 802.11b/g/n with 256 QAM support 5 GHz: 802.11a/n/ac Wave 2 with 256 QAM support
Frequency Band for US (20 MHz operating channels)	AWK-3252A US Models Only: 2.412 to 2.462 GHz (11 channels) 5.180 to 5.240 GHz (4 channels) 5.260 to 5.320 GHz (4 channels) 5.500 to 5.700 GHz (11 channels) 5.745 to 5.825 GHz (5 channels)
Frequency Band for UN (20 MHz operating channels)	AWK-3252A UN Models Only: 2.412 to 2.484 GHz (14 channels) 5.180 to 5.240 GHz (4 channels) 5.260 to 5.320 GHz (4 channels) 5.500 to 5.700 GHz (11 channels) 5.745 to 5.825 GHz (5 channels) Available channels change depending on the selected country or region code.
Wireless Security)	WEP encryption (64-bit and 128-bit) WPA/WPA2/WPA3-Enterprise (IEEE 802.1X/RADIUS, TKIP, AES) WPA/WPA2/WPA3-Personal
Transmission Rate	2.4 GHz: 802.11b: 1 to 11 Mbps 802.11g: 6 to 54 Mbps 802.11n: 6.5 to 400 Mbps 5 GHz: 802.11a: 6 to 54 Mbps 802.11n: 6.5 to 300 Mbps 802.11ac: 6.5 to 867 Mbps
Transmitter Power for 802.11a (Dual Chain)	25±1.5 dBm @ 6 Mbps 23±1.5 dBm @ 54 Mbps
Transmitter Power for 802.11n (5 GHz, Dual Chain)	25±1.5 dBm @ MCS0 20 MHz 22±1.5 dBm @ MCS7 20 MHz 24±1.5 dBm @ MCS0 40 MHz 22±1.5 dBm @ MCS7 40 MHz
Transmitter Power for 802.11ac (Dual Chain)	25±1.5 dBm @ MCS0 20 MHz 22±1.5 dBm @ MCS8 20 MHz 24±1.5 dBm @ MCS0 40 MHz 21±1.5 dBm @ MCS9 40 MHz 23±1.5 dBm @ MCS0 80 MHz 20±1.5 dBm @ MCS9 80 MHz
Transmitter Power for 802.11b (Dual Chain)	29±1.5 dBm @ 1 Mbps 29±1.5 dBm @ 11 Mbps
Transmitter Power for 802.11g (Dual Chain)	29±1.5 dBm @ 6 Mbps 26±1.5 dBm @ 54 Mbps
Transmitter Power for 802.11n (2.4 GHz, Dual Chain)	28±1.5 dBm @ MCS0 20 MHz 25±1.5 dBm @ MCS7 20 MHz 28±1.5 dBm @ MCS0 40 MHz 25±1.5 dBm @ MCS7 40 MHz
Receiver Sensitivity for 802.11a (measured at 5.680 GHz)	Typ. -88 @ 6 Mbps Typ. -72 @ 54 Mbps
Receiver Sensitivity for 802.11n (5 GHz; measured at 5.680 GHz)	Typ. -88 dBm @ MCS0 20 MHz Typ. -68 dBm @ MCS7 20 MHz Typ. -84 dBm @ MCS0 40 MHz Typ. -66 dBm @ MCS7 40 MHz
Receiver Sensitivity for 802.11ac	Typ. -88 dBm @ MCS0 20 MHz Typ. -65 dBm @ MCS8 20 MHz Typ. -85 dBm @ MCS0 40 MHz Typ. -60 dBm @ MCS9 40 MHz Typ. -81 dBm @ MCS0 80 MHz Typ. -55 dBm @ MCS9 80 MHz
Receiver Sensitivity for 802.11b (measured at 2.437 GHz)	Typ. -96 dBm @ 1 Mbps Typ. -88 dBm @ 11 Mbps
Receiver Sensitivity for 802.11g (measured at 2.437 GHz)	Typ. -90 dBm @ 6 Mbps Typ. -74 dBm @ 54 Mbps
Receiver Sensitivity for 802.11n (2.4 GHz; measured at 2.437 GHz)	Typ. -90 dBm @ MCS0 20 MHz Typ. -70 dBm @ MCS7 20 MHz Typ. -87 dBm @ MCS0 40 MHz Typ. -69 dBm @ MCS7 40 MHz
WLAN Operation Mode	Access point, Client, Client-Router, Master, Slave, Sniffer
Antenna	External, 2/2 dBi, Omni-directional
Antenna Connectors	2 RP-SMA female

Ethernet Interface

Standards	IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X) IEEE 802.3ab for 1000BaseT(X) IEEE 802.3af for PoE IEEE 802.3at for PoE IEEE 802.1Q for VLAN Tagging IEEE 802.1X for authentication
10/100/1000BaseT(X) Ports (RJ45 connector)	1
PoE Ports (10/100/1000BaseT(X), RJ45 connector)	1

Ethernet Software Features

Management	DHCP Client, DNS, HTTP, IPv4, LLDP, SMTP, SNMPv1/v2c/v3, Syslog, TCP/IP, Telnet, UDP, VLAN, MXconfig
Routing	Port forwarding, Static Route, NAT
Security	HTTPS/SSL, RADIUS, SSH
Time Management	SNTP Client

Firewall

Filter

ICMP, MAC address, IP protocol, Port-based

Serial Interface

Console port

RS-232, 8-pin RJ45

USB Interface

Storage port

USB Type A

LED Interface

LED Indicators

PWR1, PWR2, PoE, SYS, 2.4G, 5G, LAN1, LAN2

Input/Output Interface

Digital Inputs	2 Max. input current: 8 mA +13 to +30 V for state 1 +3 to -30 V for state 0
Alarm contact channels	Relay output with current carrying capacity of 1 A @ 24 VDC
Buttons	Reset button

Physical Characteristics

Housing	Metal
IP Rating	IP30
Dimensions	45 x 130 x 100 mm
Weight	700 g
Installation	DIN-rail mounting, Wall mounting (with optional kit)

Power Parameters

Input Current	12-48 VDC, 2.2-0.5 A
Input Voltage	12 to 48 VDC, Redundant dual inputs, 48 VDC Power-over-Ethernet
Power Connector	1 removable 10-contact terminal block(s)
Power Consumption	28.4 W (max.)

Environmental Limits

Operating Temperature	Standard Models: -25 to 60°C (-13 to 140°F) Wide Temp. Models: -40 to 75°C (-40 to 167°F)
Storage Temperature (package included)	-40 to 85°C (-40 to 185°F)
Ambient Relative Humidity	5 to 95% (non-condensing)

Standards and Certifications

EMC	EN 61000-6-2/-6-4, EN 55032/35
EMI	CISPR 32, FCC Part 15B Class A
EMS	IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV IEC 61000-4-6 CS: 10 V/m IEC 61000-4-8 PFMF: 30 A/m
Safety	IEC 60950-1, IEC 62368-1, UL 62368-1
Hazardous Locations	ATEX, Class I Division 2, IECEx
Road Vehicles	E mark E1
Vibration	IEC 60068-2-6
Radio	EN 300 328, EN 301 489-1/17, EN 301 893, ANATEL, FCC, MIC, NCC, RCM, SRRC, WPC, KC, IC

MTBF

Time	653801 hrs
Standards	Telcordia SR332
