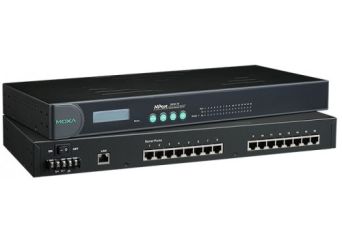

NPort 5610/5630
8 and 16-port RS-232 or RS-422/485 rackmount serial device servers
- Standard 19-inch rackmount size
- Easy IP address configuration with LCD panel (excluding wide-temperature models)
- Configure by Telnet, web browser, or Windows utility
- Socket modes: TCP server, TCP client, UDP
- SNMP MIB-II for network management
- Universal high-voltage range: 100 to 240 VAC or 88 to 300 VDC
- Popular low-voltage ranges: ±48 VDC (20 to 72 VDC, -20 to -72 VDC)
Цена от €843.00 нетна цена
Висока цена? Влезте в профила си и купете на по-ниска
В доставка
Безплатна доставка от €100
Promocja cenowa na model HDR-15-5
Продукт, предназначен само за професионална употребаМодели
Филтър: ()
-
Модел Наличност Гаранция Wishlist Вашата ценаВашата цена Items Quantity ДобавиNPort 5610-8/EU8 port device server, 10/100M Ethernet, RS-232, RJ-45 8pin, 15KV ESD, 100V or 240VВ доставка Гаранционен срок: €843.00€1,036.89Влезте, за да проверите цената си NPort 5610-8/EU8 port device server, 10/100M Ethernet, RS-232, RJ-45 8pin, 15KV ESD, 100V or 240VНаличност: В доставкаНетна цена:€843.00 -
Модел Наличност Гаранция Wishlist Вашата ценаВашата цена Items Quantity ДобавиNPort 5610-8-48V8 port device server, 10/100M Ethernet, RS-232, RJ-45 8pin, 15KV ESD, +-48 VDCИзчерпан Гаранционен срок: €922.00€1,134.06Влезте, за да проверите цената си NPort 5610-8-48V8 port device server, 10/100M Ethernet, RS-232, RJ-45 8pin, 15KV ESD, +-48 VDCНаличност: ИзчерпанНетна цена:€922.00 -
Модел Наличност Гаранция Wishlist Вашата ценаВашата цена Items Quantity ДобавиNPort 5610-16/EU16 port device server, 10/100M Ethernet, RS-232, RJ-45 8pin, 15KV ESD, 100V or 240VВ доставка Гаранционен срок: €1,089.00€1,339.47Влезте, за да проверите цената си NPort 5610-16/EU16 port device server, 10/100M Ethernet, RS-232, RJ-45 8pin, 15KV ESD, 100V or 240VНаличност: В доставкаНетна цена:€1,089.00 -
Модел Наличност Гаранция Wishlist Вашата ценаВашата цена Items Quantity ДобавиNPort 5610-16-48V16 port device server, 10/100M Ethernet, RS-232, RJ-45 8pin, 15KV ESD, +-48 VDCИзчерпан Гаранционен срок: €1,191.00€1,464.93Влезте, за да проверите цената си NPort 5610-16-48V16 port device server, 10/100M Ethernet, RS-232, RJ-45 8pin, 15KV ESD, +-48 VDCНаличност: ИзчерпанНетна цена:€1,191.00 -
Модел Наличност Гаранция Wishlist Вашата ценаВашата цена Items Quantity ДобавиNPort 5630-8/EU8-port rackmount device server, 10/100M Ethernet, RS-422/485 RJ-45, 100-240VACВ доставка Гаранционен срок: €899.00€1,105.77Влезте, за да проверите цената си NPort 5630-8/EU8-port rackmount device server, 10/100M Ethernet, RS-422/485 RJ-45, 100-240VACНаличност: В доставкаНетна цена:€899.00 -
Модел Наличност Гаранция Wishlist Вашата ценаВашата цена Items Quantity ДобавиNPort 5630-16/EU16 port device server, 10/100M Ethernet, RS-422/485, RJ-45 8pin, 15KV ESD, 100V or 240VИзчерпан Гаранционен срок: €1,134.00€1,394.82Влезте, за да проверите цената си NPort 5630-16/EU16 port device server, 10/100M Ethernet, RS-422/485, RJ-45 8pin, 15KV ESD, 100V or 240VНаличност: ИзчерпанНетна цена:€1,134.00
Аксесоари
-
Модел Наличност Гаранция Wishlist Вашата ценаВашата цена Items Quantity Добави8pin RJ45 to female DB9 connection cable, 150cm, for NPort 5210, 5610Наличен на складГаранционен срок: €10.00€12.30Влезте, за да проверите цената си 8pin RJ45 to female DB9 connection cable, 150cm, for NPort 5210, 5610Наличност:Наличен на складНетна цена:€10.00 -
Модел Наличност Гаранция Wishlist Вашата ценаВашата цена Items Quantity Добави8pin RJ45 to male DB25 connection cable, 150cm, for NPort 5210, 5610Изчерпан Гаранционен срок: €6.00€7.38Влезте, за да проверите цената си 8pin RJ45 to male DB25 connection cable, 150cm, for NPort 5210, 5610Наличност: ИзчерпанНетна цена:€6.00 -
Модел Наличност Гаранция Wishlist Вашата ценаВашата цена Items Quantity Добави8pin RJ45 to male DB9 connection cable, 150cm, for NPort 5210, 5610Наличен на складГаранционен срок: €10.00€12.30Влезте, за да проверите цената си 8pin RJ45 to male DB9 connection cable, 150cm, for NPort 5210, 5610Наличност:Наличен на складНетна цена:€10.00
Useful products
5-портов малък и бюджетен неуправляем Ethernet суич с пластмасов корпус
Цена от €51.00 нетна цена
При поръчка до 15:00 ч., пратката ще бъде изпратена същия ден Наличен на склад
Описание
With the NPort® 5600 Rackmount Series, you not only protect your current hardware investment, but also allow for future network expansion by centralizing the management of your serial devices and distributing management hosts over the network.
Network Readiness for up to 16 Serial Devices
Only basic configuration is needed with the NPort® 5600 to connect up to 16 serial devices to an Ethernet network.
19-Inch Rackmount Device Server
NPort® 5600 device servers come with Tx/Rx LEDs for the serial ports on the front panel, and 8 or 16 RJ45 serial port connectors on the rear panel. This makes the NPort® 5600 device servers suitable for a standard 19-inch rackmount, allowing you to simplify operational, maintenance, and administrative tasks.
Real COM/TTY Ports
Real COM/TTY drivers are provided to make the serial ports on the NPort® 5600 recognizable as Real COM ports by Windows, or Real TTY ports by Linux. In addition to supporting basic data transmission and reception, the NPort® drivers also support the RTS, CTS, DTR, DSR, and DCD control signals.
LED Indicators to Ease Your Maintenance Tasks
The System LED, serial Tx/Rx LEDs, and Ethernet LEDs (located on the RJ45 connector) provide a great tool for basic maintenance tasks and help engineers analyze problems in the field. The LEDs not only indicate current system and network status, but they also help field engineers monitor the status of attached serial devices.
Adjustable Termination and Pull High/Low Resistors
When using termination resistors to prevent serial signal reflection, it is important to set the pull high/low resistors correctly so that the electrical signal is not corrupted. Since no set of resistor values is universally compatible for all environments, the NPort® 5650-8/16 has DIP switches on the bottom panel for setting the termination and pull high/low resistor values.
Техническа спецификация
- Ethernet Interface
| 10/100BaseT(X) Ports (RJ45 connector) | 1 |
| Magnetic Isolation Protection | 1.5 kV (built-in) |
- Ethernet Software Features
| Configuration Options | Telnet Console, Web Console (HTTP/HTTPS), Windows Utility |
| Management | ARP, BOOTP, DHCP Client, DNS, HTTP, HTTPS, ICMP, IPv4, LLDP, RFC2217, Rtelnet, PPP, SLIP, SMTP, SNMPv1/v2c, TCP/IP, Telnet, UDP |
| Filter | IGMP v1/v2c |
| Windows Real COM Drivers | Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded |
| Linux Real TTY Drivers | Kernel versions: 2.4.x, 2.6.x, 3.x, 4.x, and 5.x |
| Fixed TTY Drivers | SCO UNIX, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X |
| Android API | Android 3.1.x and later |
| Time Management | SNTP |
- Serial Interface
| Connector | 8-pin RJ45 |
| No. of Ports | 8 or 16 ports |
| Serial Standards | NPort 5610 Series: RS-232 NPort 5630 Series: RS-422, RS-485 |
| Operation Modes | Disabled, Ethernet Modem, Pair Connection, Real COM, Reverse Telnet, RFC2217, TCP Client, TCP Server, UDP |
| Baudrate | Supports standard baudrates (unit=bps): 50, 75, 110, 134, 150, 300, 600, 1200, 1800, 2400, 4800, 7200, 9600, 19200, 38400, 57600, 115200, 230.4k, 460.8k, 921.6k |
| Data Bits | 5, 6, 7, 8 |
| Stop Bits | 1, 1.5, 2 |
| Parity | None, Even, Odd, Space, Mark |
| Flow Control | None, RTS/CTS (RS-232 only), DTR/DSR (RS-232 only), XON/XOFF |
| Pull High/Low Resistor for RS-485 | 1 kilo-ohm, 150 kilo-ohms |
| Terminator for RS-485 | 120 ohms |
| RS-485 Data Direction Control | ADDC® (automatic data direction control) |
- Serial Signals
| RS-232 | TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND |
| RS-422 | Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-4w | Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-2w | Data+, Data-, GND |
- Power Parameters
| Input Current | NPort 5610-8-48V/16-48V: 135 mA @ 48 VDC NPort 5650-8-HV-T/16-HV-T: 152 mA @ 88 VDC NPort 5610-8/16: 141 mA @ 100 VAC NPort 5630-8/16: 152 mA @ 100 VAC |
| Input Voltage | HV Models: 88 to 300 VDC AC Models: 100 to 240 VAC, 47 to 63 Hz DC Models: ±48 VDC, 20 to 72 VDC, -20 to -72 VDC |
- Reliability
| Automatic Reboot Trigger | Built-in WDT |
- Physical Characteristics
| Housing | Metal |
| Installation | 19-inch rack mounting |
| Dimensions (with ears) | 480 x 45 x 198 mm (18.90 x 1.77 x 7.80 in) |
| Dimensions (without ears) | 440 x 45 x 198 mm (17.32 x 1.77 x 7.80 in) |
| Weight | NPort 5610-8: 2,290 g (5.05 lb) NPort 5610-8-48V: 3,160 g (6.97 lb) NPort 5610-16: 2,490 g (5.49 lb) NPort 5610-16-48V: 3,260 g (7.19 lb) NPort 5630-8: 2,510 g (5.53 lb) NPort 5630-16: 2,560 g (5.64 lb) |
| Interactive Interface | LCD panel display (standard temp. models only) Push buttons for configuration (standard temp. models only) |
- Environmental Limits
| Operating Temperature | Standard Models: 0 to 60°C (32 to 140°F) Wide Temp. Models: -40 to 75°C (-40 to 167°F) High-Voltage Wide Temp. Models: -40 to 85°C (-40 to 185°F) |
| Storage Temperature (package included) | Standard Models: -20 to 70°C (-4 to 158°F) Wide Temp. Models: -40 to 75°C (-40 to 167°F) High-Voltage Wide Temp. Models: -40 to 85°C (-40 to 185°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
- Standards and Certifications
| EMI | CISPR 32, FCC Part 15B Class A |
| EMC | EN 55032/24 |
| EMS | IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m IEC 61000-4-4 EFT: Power: 4 kV; Signal: 2 kV IEC 61000-4-5 Surge: Power: 2.5 kV; Signal: 1 kV IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m IEC 61000-4-8 PFMF IEC 61000-4-11 DIPs |
| Medical | EN 60601-1-2 Class B, EN 55011 |
| Safety | UL 60950-1 |
- MTBF
| Time | NPort 5610-8: 877,888 hrs NPort 5610-8-48V: 870,961 hrs NPort 5610-16: 666,105 hrs NPort 5610-16-48V: 662,111 hrs NPort 5630-8: 765,449 hrs NPort 5630-16: 473,748 hrs |
| Standards | AC models: MIL-HDBK-217FHV models: Telcordia (Bellcore) Standard TR/SR |
