Seria CSM-G200
Unmanaged 10/100/1000BaseT(X)-to-100/1000BaseSFP slide-in media converter modules for the NRack System™
Производител: MOXA
Производител: MOXA
- LFP (Link Fault Pass-Through) and FEF (Far End Fault)
- Two different operation modes: store-and-forward and pass-through
- Auto-negotiation
- Plug and play
- Hot-swappable
- Supports 10 KB jumbo frames
Цена от 273,00 € без данък
High price? Log in and buy cheaper
In delivery
Безплатна доставка от €100
Promocja cenowa na model HDR-15-5
Seria CSM-G200
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddCSM-G200-1221Unmanaged 10/100/1000BaseT(X)-to-100/1000BaseSFP slide-in media converter modules for the NRack System™In delivery Warranty: 273,00 €335,79 €Login to check your price CSM-G200-1221Unmanaged 10/100/1000BaseT(X)-to-100/1000BaseSFP slide-in media converter modules for the NRack System™Availability: In deliveryNet price:273,00 €
Description

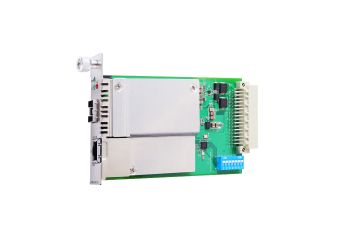

The CSM-G200 slide-in Ethernet-to-fiber media converters are designed for the NRack System™. The module provides media conversion from 10/100/1000BaseT(X) to 100/1000BaseFX (SFP connector), and can be installed in any NRack System™ chassis.
Technical Specification
- Ethernet Interface
| 100/1000BaseSFP Ports | 1 |
| 10/100/1000BaseT(X) Ports (RJ45 connector) | 1 |
| Jumbo Frame Size | 10 KB |
- Power Parameters
| Input Current | 185 mA @ 12 VDC |
| Input Voltage | 12 VDC |
| Overload Current Protection | Supported |
- Physical Characteristics
| Dimensions | 86.8 x 124.3 x 21 mm (3.42 x 4.89 x 0.83 in) |
| Weight | Product only: 140 g (0.31 lb) |
- Environmental Limits
| Operating Temperature | 0 to 55°C (32 to 131°F) |
| Storage Temperature (package included) | -40 to 85°C (-40 to 185°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
- Standards and Certifications
| EMC | EN 55032/35 |
| EMI | CISPR 32, FCC Part 15B Class A |
| EMS | IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV IEC 61000-4-5 Surge: Power: 1 kV; Signal: 1 kV IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m IEC 61000-4-8 PFMF: 30 A/m |
| Environmental Testing | IEC 60068-2-1 IEC 60068-2-14 IEC 60068-2-2 IEC 60068-2-3 |
| Vibration | IEC 60068-2-6 |
- MTBF
| Time | 1,579,447 hrs |
| Standards | MIL-HDBK-217F |
- Warranty
| Warranty Period | 5 years |
