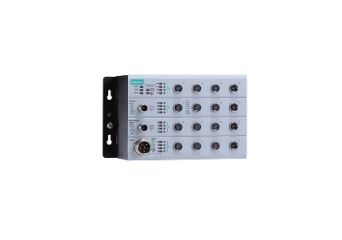

TN-4516A-12PoE-4GPoE

The ToughNet TN-4500A Series M12 managed Ethernet switches are designed for railway applications, including rolling stock and wayside installations. The switches use M12 and other circular connectors to ensure tight, robust connections, and guarantee reliable operation in industrial environments where vibration and shock are commonplace. The TN-4500A Series Ethernet switches provide 12 fast Ethernet M12 ports with or without IEEE 802.3at/af compliant PoE functionality, and the Gigabit models have 4 Gigabit Ethernet interfaces with PoE and optional bypass relay functionality. In addition, the fiber models provide 2 Gigabit fiber interface ports with an embedded 2 km multimode fiber transceiver. The PoE switches are classified as power source equipment (PSE).

The switches provide up to 30 watts of power per port, and can be used to power IEEE 802.3at/af compliant powered devices (PDs), such as IP cameras, wireless access points, and IP phones. The 24 to 110 VDC wide power input range and isolated dual power inputs not only allow you to use the same type of power source at different sites around the globe, but also increase the reliability of your communications system. Furthermore, the -40 to 75°C operating temperature range of the switches ensures they can withstand deployment in harsh environments. TN-4500A Series Ethernet switches are compliant with the mandatory sections of EN 50155, covering operating temperature, power input voltage, surge, ESD, and vibration, as well as conformal coating and power insulation, making the switches suitable for a variety of industrial applications.

Additional Features and Benefits

• Provides up to 30 watts per PoE port with a total power budget of 120 watts per switch
• IPv6 Ready logo awarded (IPv6 Logo Committee certified)
• Switches are compliant with the mandatory test items of the EN 50155 standard to ensure suitability for rolling stock applications
• DHCP Option 82 for IP address assignment with different policies
• Turbo Ring and Turbo Chain (recovery time < 20 ms @ 250 switches), and STP/RSTP/MSTP for network redundancy
• IGMP snooping and GMRP for filtering multicast traffic
• EtherNet/IP and Modbus TCP industrial Ethernet protocols supported
• Port-based VLAN, IEEE 802.1Q VLAN, and GVRP to ease network planning
• QoS (IEEE 802.1p/1Q and ToS/DiffServ) allows real-time traffic classification and prioritization
• IEEE 802.3ad, LACP for optimum bandwidth utilization
• SNMPv1/v2c/v3 for different levels of network management
• TACACS+, SNMPv3, IEEE 802.1X, HTTPS, and SSH to enhance network security
• RMON for proactive and efficient network monitoring
• Bandwidth management to prevent unpredictable network status
• Lock port allows access by only authorized MAC addresses
• Port mirroring for online debugging
• Automatic warning by exception through email and relay output
• Line-swap fast recovery
• LLDP for automatic topology discovery in network management software
• Configurable by web browser, Telnet/serial console, CLI, and Windows utility
• Loop protection to prevent network loops
• Panel mounting installation capability
