Label Recommended
5-port entry-level unmanaged Ethernet switches with metal housing
Цена от 84,00 € без данък
При поръчка до 15:00 ч., пратката ще бъде изпратена същия ден In stock
Производител: MOXA
- Each channel supports 2 D1 30 fps streams simultaneously, or merge 1 quad stream 30 fps image into 4 channels
- Video latency under 200 ms
- 2 Ethernet ports for cascading or Ethernet port redundancy
- DynaStream™ for optimized network efficiency
- ONVIF support for standardization and interoperability
- Local storage capability with microSD card slot
- Industrial design with -40 to 75°C operating temperature
Цена от 1 500,00 € без данък
High price? Log in and buy cheaper
In stock
Place the order by 12:00, the package will be shipped on the same day
Free shipping from €300
Promocja cenowa na model HDR-15-5
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddVPort 4644-channel H.264/MJPEG Industrial Video Encoder, 2 10/100/1000BaseT(X) Ethernet port, -25 to 60°COut of stock Warranty: 1 500,00 €1 845,00 €Login to check your price VPort 4644-channel H.264/MJPEG Industrial Video Encoder, 2 10/100/1000BaseT(X) Ethernet port, -25 to 60°CAvailability: Out of stockNet price:1 500,00 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddVPort 464-T4-channel H.264/MJPEG Industrial Video Encoder, 2 10/100/1000BaseT(X) Ethernet port, -40 to 75°CIn stockWarranty: 1 625,00 €1 998,75 €Login to check your price VPort 464-T4-channel H.264/MJPEG Industrial Video Encoder, 2 10/100/1000BaseT(X) Ethernet port, -40 to 75°CAvailability:In stockNet price:1 625,00 €
Accessories
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddDIN rail power supply 30W 24V 1.5AIn stockWarranty: 13,40 €16,48 €Login to check your price DIN rail power supply 30W 24V 1.5AAvailability:In stockNet price:13,40 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity Add19" Rackmont setIn stockWarranty: 166,00 €204,18 €Login to check your price 19" Rackmont setAvailability:In stockNet price:166,00 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddWall Mounting KitOut of stock Warranty: 6,00 €7,38 €Login to check your price Wall Mounting KitAvailability: Out of stockNet price:6,00 €
Description

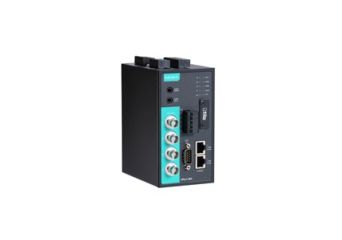

The VPort 464 4-channel industrial video encoder uses the H.264 video compression algorithm to provide the best video quality on the market, but with a smaller bandwidth requirement than other video compression standards. In addition, to meet various requirements, each channel of the VPort 464 can support 2 video streams simultaneously or you can merge all 4 channels into 1 quad view stream using H.264 and MJPEG compression formats, providing greater flexibility for a variety of uses, including viewing, recording, and analysis. The rugged industrial design, which includes a -40 to 75°C operating temperature, IP30 protection, and industrial certifications, make the VPort 464 suitable for harsh environments.
The VPort 464 comes with two Gigabit Ethernet ports and supports cascade mode and network redundancy. In addition, Moxa’s innovative DynaStream™ technology lets you change the video frame rate automatically, allowing you to control your network bandwidth budget and simplify network system management. The CBR Pro™ function guarantees the lowest packet loss for limited bandwidth transmissions to ensure that images will not exhibit the mosaic effect.
Technical Specification
- Memory
| microSD Slot | SDXC |
- Input/Output Interface
| Digital Input Channels | 4 |
| Digital Inputs | +13 to +30 V for state 1 -30 to +1 V for state 0 Max. input current: 8 mA |
| Relay Channels | 2 |
| Contact Current Rating | Resistive load: 1 A @ 24 VDC |
| Connector | Terminal block |
- Ethernet Interface
| 10/100BaseT(X) Ports (RJ45 connector) | 2 |
- Ethernet Software Features
| Protocols | TCP/IP, IPv4/IPv6, UDP, HTTP, RTP/RTSP, ARP, UPnP, FTP, TFTP, SMTP, NTP Client, DNS, DDNS, QoS, IGMP v3, ICMP, SNMPv1/v2c/v3, Modbus TCP, HTTPS, 802.1X, NTCIP |
- Security Functions
| Password | User-level password protection |
| Filter | IP address |
| Authentication | 802.1X |
| Encryption | HTTPS |
- LED Interface
| LED Indicators | STAT: Indicates if system is booted up properly or not Power 1: Power 1 on/off Power 2: Power 2 on/off FAULT: Can be configured to correspond to system alarm, power failure, or disconnected network Video: Video input signal PTZ: Indicates if PTZ or COM port data has been transmitted SD: Indicates if SD card was mounted successfully Network: 10 Mbps or 100 Mbps |
- Serial Interface
| PTZ Port | 1, RS-232 or RS-422/485 port, terminal block connector, 115.2 kbps |
| COM Port | 1, RS-232 or RS-485 port, DB9 male connector, 115.2 kbps |
| Console Port | 1 RS-232 port, 10-pin RJ45 (115200, n, 8, 1) |
- Power Parameters
| No. of Power Inputs | 2 |
| Input Voltage | Redundant dual inputs |
| Operating Voltage | 12 to 32 VDC, 18 to 30 VAC |
| Input Current | 0.5 A @ 24 VDC 0.83 A @ 24 VAC |
| Power Connector | 2-pin terminal block |
- Video Interface
| Video Compression | H.264 (ISO/IEC 14496-10) or MJPEG |
| Video Input | 4, BNC connector (1.0 Vpp, 75 ohm) |
| Video Output | via Ethernet |
| Video Streams | 2 independent H.264 or MJPEG video streams 1 quad (4-channel images) stream |
| NTSC/PAL | Auto-sensing or manual |
| Video Resolution and FPS (frames per second) |  |
| Video Viewing | DynaStream™ support for changing the video frame rate automatically CBR Pro™ for good image quality in limited bandwidth transmissions Adjustable image size and quality Timestamp and text overlay OSD (On Screen Display) position adjustable Maximum of 5 simultaneous unicast connections, 50 multicast clients Image tuning control: brightness, contrast, saturation, sharpness, noise reduction |
- Audio Interface
| Audio Inputs | 1 Line-in or MIC-in with 3.5 mm phone jack |
| Audio Outputs | 1 Line-out, with 3.5 mm phone jack |
| Audio Format | Mono, PCM (G.711) |
- Camera Software Development
| VPort SDK PLUS | Includes CGI commands, ActiveX Control, and API library for customized applications or system integration for third-party developers |
| Video Standards | ONVIF Profile S |
- Camera PAN/TILT/ZOOM
| PTZ Camera Control | Via PTZ port or COM port |
| PTZ Control Functions | Pan, tilt, zoom, focus, move speed, preset position (max. 128 positions) |
| PTZ Function Updates | Driver upload supported |
| Protocols | Pelco D, Pelco P, Custom Camera |
- Camera Alarm Software Features
| Intelligent Video | Camera tampering detection |
| Video Motion Detection | 3 independently configurable areas |
| Scheduling | Daily repeat timing schedule |
| Imaging | JPEG snapshots for pre/trigger/post alarm images |
| Custom Alarms | HTTP event servers for setting customized alarm actions |
| Email/FTP Messaging | Automatic transfer of stored images via email or FTP as event-triggered actions |
| Pre-Alarm Buffer | 50 MB video buffer for JPEG snapshot images |
| Video Recording | Event recordings stored on the SD card |
- Software Requirements
| Memory Size | 1 GB |
| Operating System | Windows 7 or above |
| Browser | Internet Explorer 9.x or above |
| Multimedia | DirectX 9.0C or above |
- Physical Characteristics
| Housing | Metal |
| Dimensions | 80.2 x 135 x 105 mm (3.16 x 5.31 x 4.13 in) |
| Weight | 1130 g (2.49 lb) |
| Installation | DIN-rail mounting, Wall mounting (with optional kit) |
- Environmental Limits
| Operating Temperature | Standard Models: -25 to 60°C (-13 to 140°F) Wide Temp. Models: -40 to 75°C (-40 to 167°F) |
| Storage Temperature (package included) | -40 to 85°C (-40 to 185°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
| Altitude | 2000 m |
- Standards and Certifications
| EMI | CISPR 32, FCC Part 15B Class A |
| EMS | IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8 PFMF |
| Freefall | IEC 60068-2-31 |
| Safety | UL 60950-1 |
| Shock | IEC 60068-2-27 |
| Vibration | IEC 60068-2-6 |
- MTBF
| Time | 569,152 hrs |
| Standards | Telcordia SR332 |
