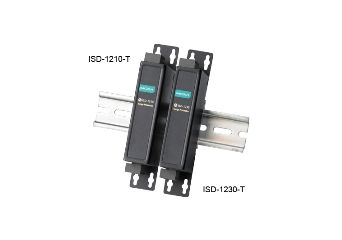

ISD-1210-T/1230-T

Industrial-grade data line surge protectors

Производител: MOXA

Plug and play
IEC 61643-21 C2 20-kV surge protection for serial data lines
Supports RS-232 or RS-422/485
Compact size for easy installation
Wide-temperature model available for -40 to 85°C environments

Цена от 217,00 € без данък

High price? Log in and buy cheaper

In stock

Place the order by 12:00, the package will be shipped on the same day

Free shipping from €300

Вижте 2 модела

Promocja cenowa na model HDR-15-5

Models
Description
Technical Specification
Download
Recommended Products

ISD-1210-T/1230-T

Models

Model	Availability	Warranty	Wishlist	Your Price	Your Price	Items Quantity Add
ISD-1230-T 4 data line advanced surge protector, RS-422/485, 20 kV surge protection, -40 to 85°C operating temperature	In stock	Warranty:		217,00 € 266,91 € Login to check your price	Login to check your price	pcs.

ISD-1230-T

4 data line advanced surge protector, RS-422/485, 20 kV surge protection, -40 to 85°C operating temperature

Availability:

In stock

Net price:

217,00 €

Model	Availability	Warranty	Wishlist	Your Price	Your Price	Items Quantity Add
ISD-1210-T 4 data line advanced surge protector, RS-232, 20 kV surge protection, -40 to 85°C operating temperature	In delivery	Warranty:		217,00 € 266,91 € Login to check your price	Login to check your price	pcs.

ISD-1210-T

4 data line advanced surge protector, RS-232, 20 kV surge protection, -40 to 85°C operating temperature

Availability: In delivery

Net price:

217,00 €

Description

The ISD-1210-T/1230-T Series provides surge protection for serial data lines to prevent damage to devices such as modems, fax machines, I/O ports, terminals, instrumentation, hubs, and any other devices that use serial data connections. The ISD-1210-T/1230-T can add serial data line protection to a variety of serial connections: RS-232, RS-422, and RS-485.

Technical Specification

Serial Interface

Connector	Terminal block
Serial Standards	ISD-1210-T: RS-232 ISD-1230-T: RS-422, RS-485
Baudrate	50 bps to 921.6 kbps

Serial Signals

RS-232	TxD, RxD, RTS, CTS, GND
RS-422	Tx+, Tx-, Rx+, Rx-, GND
RS-485-4w	Tx+, Tx-, Rx+, Rx-, GND
RS-485-2w	Data+, Data-, GND

Physical Characteristics

Housing	Metal
IP Rating	IP30
Dimensions	95 x 53 x 25 mm (3.74 x 2.01 x 0.98 in)
Weight	ISD-1210-T: Packaged: 276 g (0.61 lb) ISD-1230-T: Packaged: 274 g (0.60 lb) ISD-1210-T: Product only: 214 g (0.47 lb) ISD-1230-T: Product only: 212 g (0.46 lb)
Installation	DIN-rail mounting

Environmental Limits

Operating Temperature	-40 to 85°C (-40 to 185°F)
Storage Temperature (package included)	-40 to 85°C (-40 to 185°F)
Ambient Relative Humidity	5 to 95% (non-condensing)
