Производител: MOXA
- 19-inch chassis for rackmount use
- 19 slots for high-density applications
- Supports dual power inputs with redundancy
- Fanless chassis design reduces servicing costs
Цена от 651,00 € без данък
High price? Log in and buy cheaper
In stock
Place the order by 12:00, the package will be shipped on the same day
Free shipping from €300
Promocja cenowa na model HDR-15-5
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddTRC-190-AC19 inches chassis, 110V to 220V AC input, 19 slotsIn stockWarranty: 651,00 €800,73 €Login to check your price TRC-190-AC19 inches chassis, 110V to 220V AC input, 19 slotsAvailability:In stockNet price:651,00 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddTRC-190-DC-4819 inches chassis, 48V DC input, 19 slotsOut of stock Warranty: 822,00 €1 011,06 €Login to check your price TRC-190-DC-4819 inches chassis, 48V DC input, 19 slotsAvailability: Out of stockNet price:822,00 €
Accessories
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity Add10/100Base-TX to 100Base-Fx Converter. ST Multi mode. Slide-in ModuleOut of stock Warranty: 243,00 €298,89 €Login to check your price 10/100Base-TX to 100Base-Fx Converter. ST Multi mode. Slide-in ModuleAvailability: Out of stockNet price:243,00 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity Add10/100Base-TX to 100Base-Fx Converter. SC Multi mode. Slide-in ModuleIn stockWarranty: 243,00 €298,89 €Login to check your price 10/100Base-TX to 100Base-Fx Converter. SC Multi mode. Slide-in ModuleAvailability:In stockNet price:243,00 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity Add10/100Base-TX to 100Base-Fx Converter. SC Single mode. Slide-in ModuleOut of stock Warranty: 342,00 €420,66 €Login to check your price 10/100Base-TX to 100Base-Fx Converter. SC Single mode. Slide-in ModuleAvailability: Out of stockNet price:342,00 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddPWR-190-ACOptional power supply module for TRC-190 series, 110V to 220V AC inputIn stockWarranty: 218,00 €268,14 €Login to check your price PWR-190-ACOptional power supply module for TRC-190 series, 110V to 220V AC inputAvailability:In stockNet price:218,00 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddPWR-190-DC-48Optional power supply module for TRC-190 series, 48V DC inputOut of stock Warranty: 393,00 €483,39 €Login to check your price PWR-190-DC-48Optional power supply module for TRC-190 series, 48V DC inputAvailability: Out of stockNet price:393,00 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddRS-232/422/485 to Fiber Optic Converter. SC Multi-mode. Slide-in ModuleIn stockWarranty: 199,00 €244,77 €Login to check your price RS-232/422/485 to Fiber Optic Converter. SC Multi-mode. Slide-in ModuleAvailability:In stockNet price:199,00 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddRS-232/422/485 to Fiber Optic Converter. ST Multi-mode. Slide-in ModuleOut of stock Warranty: 199,00 €244,77 €Login to check your price RS-232/422/485 to Fiber Optic Converter. ST Multi-mode. Slide-in ModuleAvailability: Out of stockNet price:199,00 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddRS-232/422/485 to Fiber Optic Converter. SC Single mode. Slide-in ModuleIn stockWarranty: 418,00 €514,14 €Login to check your price RS-232/422/485 to Fiber Optic Converter. SC Single mode. Slide-in ModuleAvailability:In stockNet price:418,00 € -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddRS-232/422/485 to Fiber Optic Converter. ST Single mode. Slide-in ModuleOut of stock Warranty: 418,00 €514,14 €Login to check your price RS-232/422/485 to Fiber Optic Converter. ST Single mode. Slide-in ModuleAvailability: Out of stockNet price:418,00 €
Description

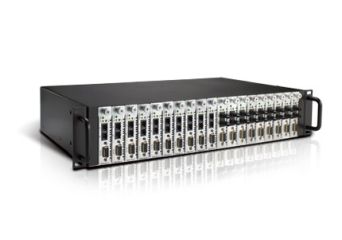

The TRC-190 rackmount chassis provides 19 slots for media converter modules from the CSM-200 Series of Ethernet-to-fiber modules and TCF-142-RM Series of serial-to-fiber modules. A TRC-190 chassis comes with one AC or DC power input, with an optional redundant power expansion AC or DC module available to enhance reliability. The PWR-190-AC and PWR-190-DC-48 power modules can be installed at the same time.
Technical Specification
- Power Parameters
| Input Voltage | TRC-190-AC: 110 to 240 VAC TRC-190-DC-48: 36 to 53 VDC Redundant dual inputs |
| No. of Power Inputs | 2 |
| Overload Current Protection | Supported |
| Power Consumption | TRC-190-AC: 0.9 A @ 110 VAC TRC-190-DC-48: 2.1 A @ 48 VDC |
- Physical Characteristics
| Dimensions | 440 x 260 x 88 mm (17.32 x 10.24 x 3.46 in) |
| Installation | 19-inch rack mounting |
| IP Rating | IP30 |
| Weight | 5200 g (11.4 lb) |
- Environmental Limits
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
| Operating Temperature | 0 to 60°C (32 to 140°F) |
| Storage Temperature (package included) | -20 to 75°C (-4 to 167°F) |
- Standards and Certifications
| EMC | EN 55032/24 |
| EMI | CISPR 32, FCC Part 15B Class A |
| EMS | IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV IEC 61000-4-5 Surge: Power: 1 kV; Signal: 0.5 kV IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m IEC 61000-4-8 PFMF |
| Environmental Testing | IEC 60068-2-1 IEC 60068-2-2 IEC 60068-2-3 |
| Safety | EN 60950-1, IEC 60950-1 |
| Vibration | IEC 60068-2-6 |
- MTBF
| Time | 1,055,112 hrs |
| Standards | Telcordia (Bellcore), GB |
